7.5 - Adjusting the limit switches

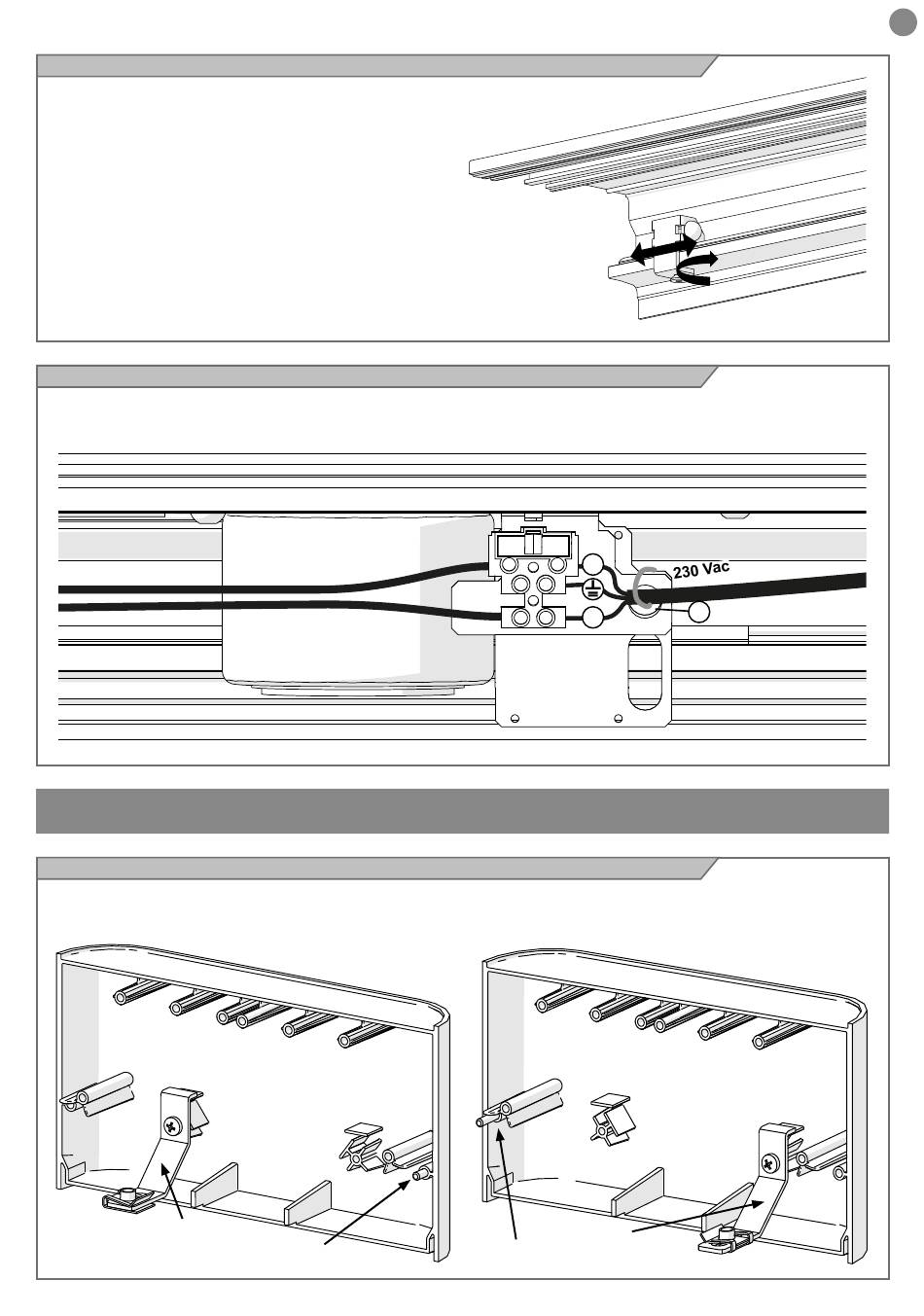

To adjust the mechanical limit switches, loosen the screw shown in
the figure and move the limit switch to the correct position. Tighten
the screw.
N.B. Do not overtighten the screw. During
operation, the panel will stop approximately 10
mm before the limit switch buffer
7.6 - Wiring the door to the line
Connect the network cables to the line input terminal as shown in
the image. The line must be adequately protected against short

8 - INSTALLATION OF PROTECTION PANELS

8.1 - Assembly of the side covers (not on recessed versions)
The following figure shows the side covers in the two variants, right
R and left L, where right means the cover that is mounted on the
Cover panel fixing
bracket
circuits. Fasten the 230 Vac cable with a cable tie to the hole below
(A).
right end of the beam seen from the front and the same for the left.
Cover
left side
Pin Ø3
L
N
Cover panel fixing
Pin Ø3
bracket
A
Cover
right side
