EN

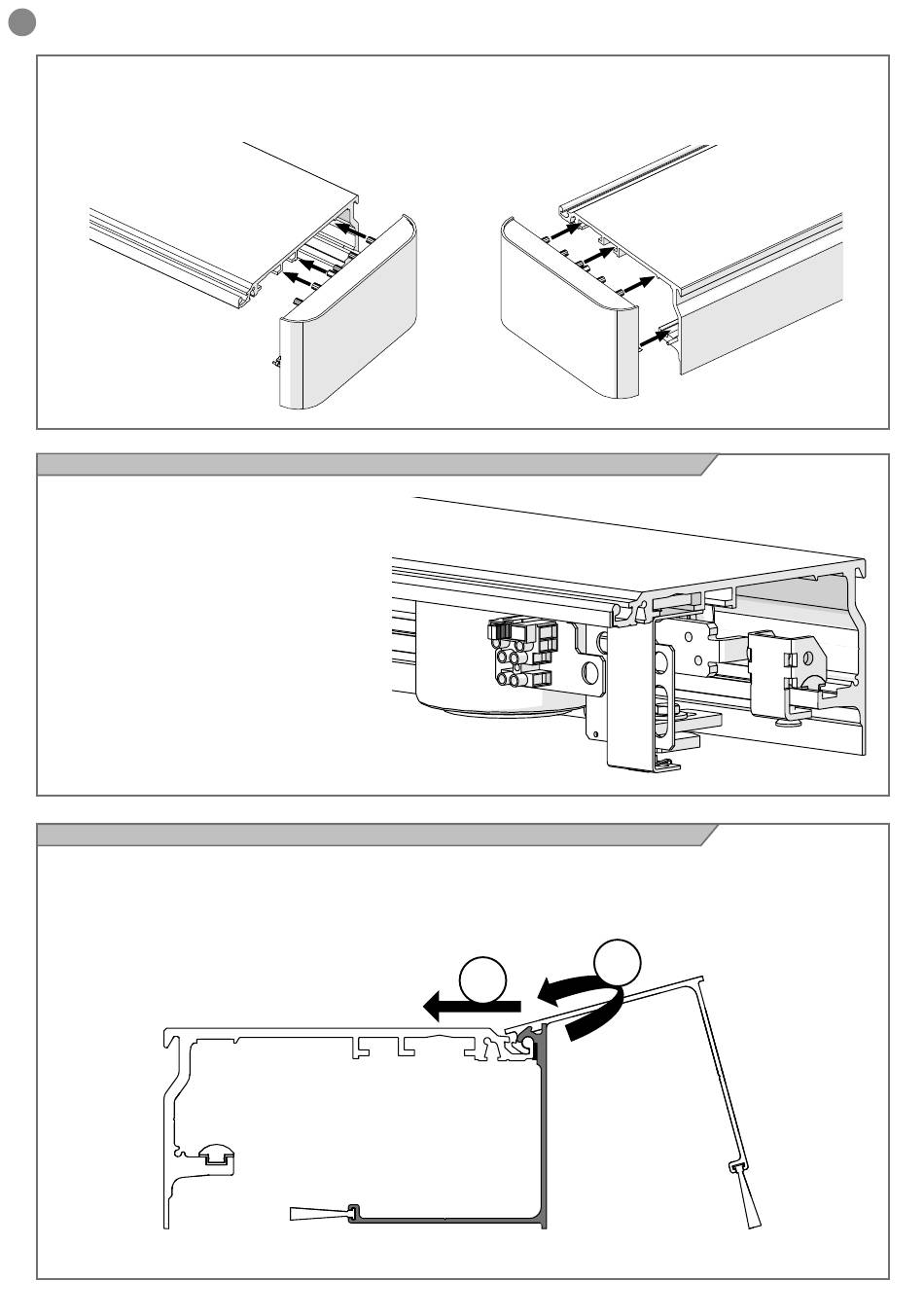

The assembly of the cover, as shown in the following figure, takes
place by pressure. Pay attention to the correct engagement of all
the pins inside the dedicated slots on the beam.

8.2 - Recessed wall beam

In the case of a beam embedded in the wall, use
the dedicated brackets of the "LEV4" kit (supplied
separately).
Use the clip and screw supplied in the side covers to
secure the beam.

8.3 - Cover panel preparation

The cover panel is equipped with a coupling that is used to keep
the position open at 110° to allow maintenance interventions.
To insert the locking screws, it is necessary to drill a series of
54
Attention: the side covers must not be mounted for the
versions with recessed beam on a wall compartment.
holes at the appropriate notches and according to the following
indications.
1
2
