9 Trouble-shooting
!
136
9.4

Spare parts

Section 9.1 contains a detailed trouble-shooting guide. The measuring device, more
over, provides additional support in the form of continuous self-diagnosis and error
messages.
Trouble-shooting can entail replacing defective components with tested spare parts.
The illustration below shows the available scope of spare parts.
Note!
You can order spare parts directly from your E+H service organisation by providing the
serial number printed on the transmitter nameplate (see Page 9).
Spare parts are shipped as sets comprising the following parts:
x Spare part
x Additional parts, small items (fasteners, etc.)
x Mounting instructions
x Packaging
1
6

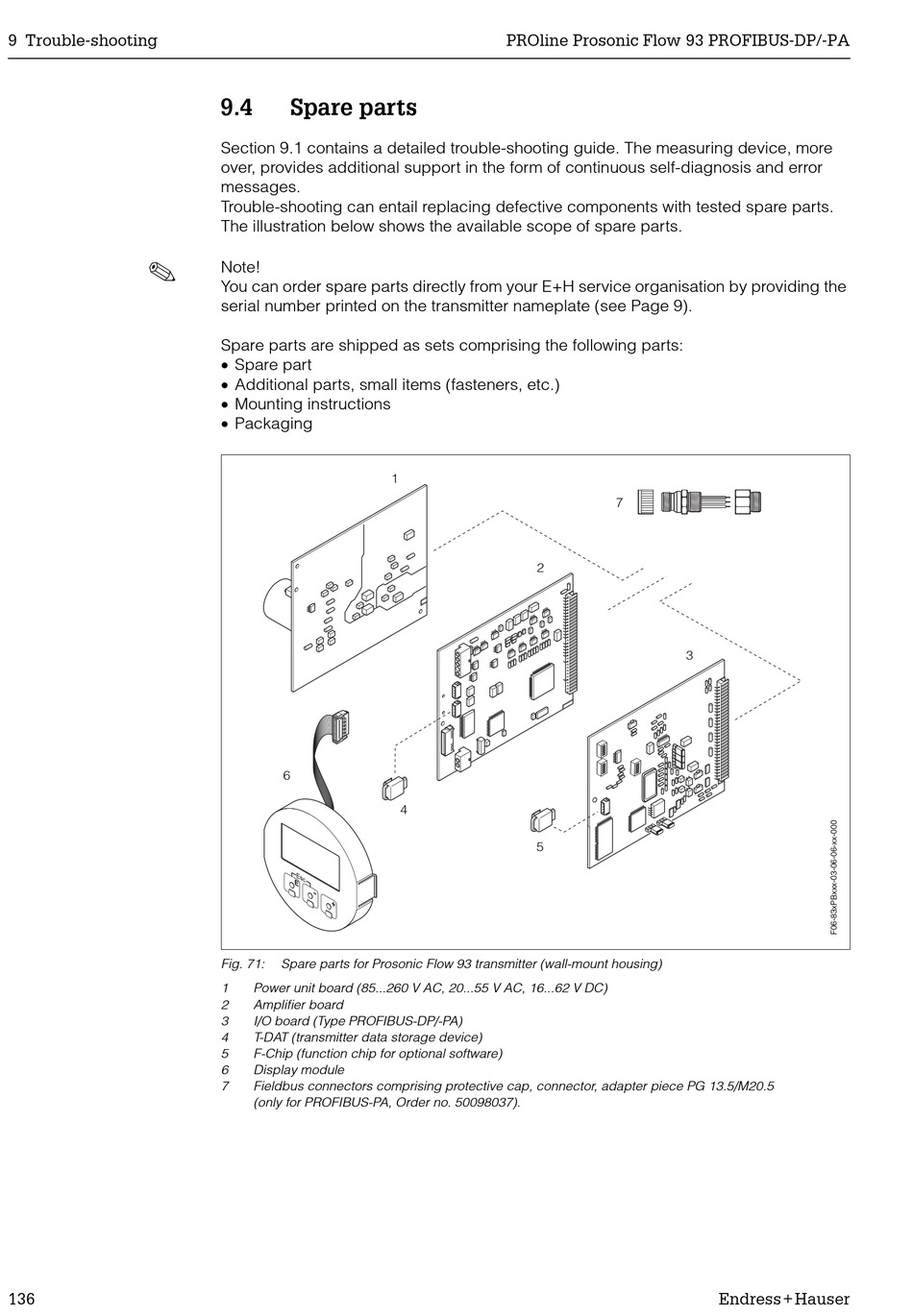

Fig. 71: Spare parts for Prosonic Flow 93 transmitter (wall-mount housing)
1 Power unit board (85...260 V AC, 20...55 V AC, 16...62 V DC)
2 Amplifier board
3 I/O board (Type PROFIBUS-DP/-PA)
4 T-DAT (transmitter data storage device)
5 F-Chip (function chip for optional software)
6 Display module
7 Fieldbus connectors comprising protective cap, connector, adapter piece PG 13.5/M20.5
(only for PROFIBUS-PA, Order no. 50098037).
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
2
4
5
7
3
