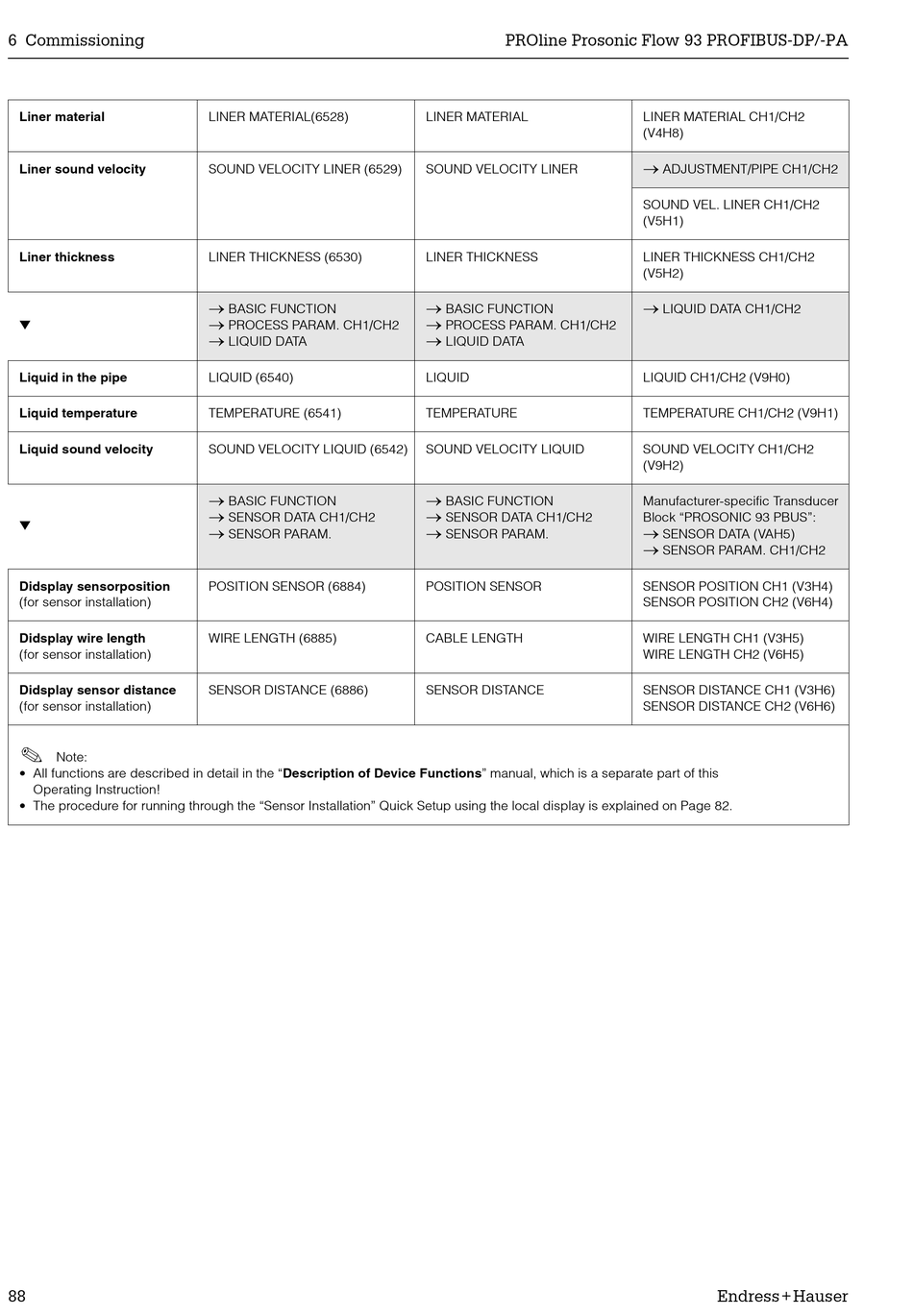

Endress+Hauser PROline prosonic flow 93 Operating Instructions Manual page 88

6 Commissioning
Liner material
Liner sound velocity
Liner thickness
▼
Liquid in the pipe
Liquid temperature
Liquid sound velocity
▼
Didsplay sensorposition
(for sensor installation)
Didsplay wire length
(for sensor installation)
Didsplay sensor distance
(for sensor installation)
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a separate part of this
Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local display is explained on Page 82.
88
LINER MATERIAL(6528)
SOUND VELOCITY LINER (6529)
LINER THICKNESS (6530)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
LIQUID DATA
LIQUID (6540)
TEMPERATURE (6541)
SOUND VELOCITY LIQUID (6542)
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
POSITION SENSOR (6884)
WIRE LENGTH (6885)
SENSOR DISTANCE (6886)
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
LINER MATERIAL
SOUND VELOCITY LINER
LINER THICKNESS
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
LIQUID DATA
LIQUID
TEMPERATURE
SOUND VELOCITY LIQUID
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
POSITION SENSOR
CABLE LENGTH
SENSOR DISTANCE
LINER MATERIAL CH1/CH2
(V4H8)
o
ADJUSTMENT/PIPE CH1/CH2
SOUND VEL. LINER CH1/CH2
(V5H1)
LINER THICKNESS CH1/CH2
(V5H2)
o
LIQUID DATA CH1/CH2
LIQUID CH1/CH2 (V9H0)
TEMPERATURE CH1/CH2 (V9H1)
SOUND VELOCITY CH1/CH2
(V9H2)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
SENSOR POSITION CH1 (V3H4)
SENSOR POSITION CH2 (V6H4)
WIRE LENGTH CH1 (V3H5)
WIRE LENGTH CH2 (V6H5)
SENSOR DISTANCE CH1 (V3H6)
SENSOR DISTANCE CH2 (V6H6)
Endress+Hauser
