PROline Prosonic Flow 93 PROFIBUS-DP/-PA
Endress+Hauser
6.4.2

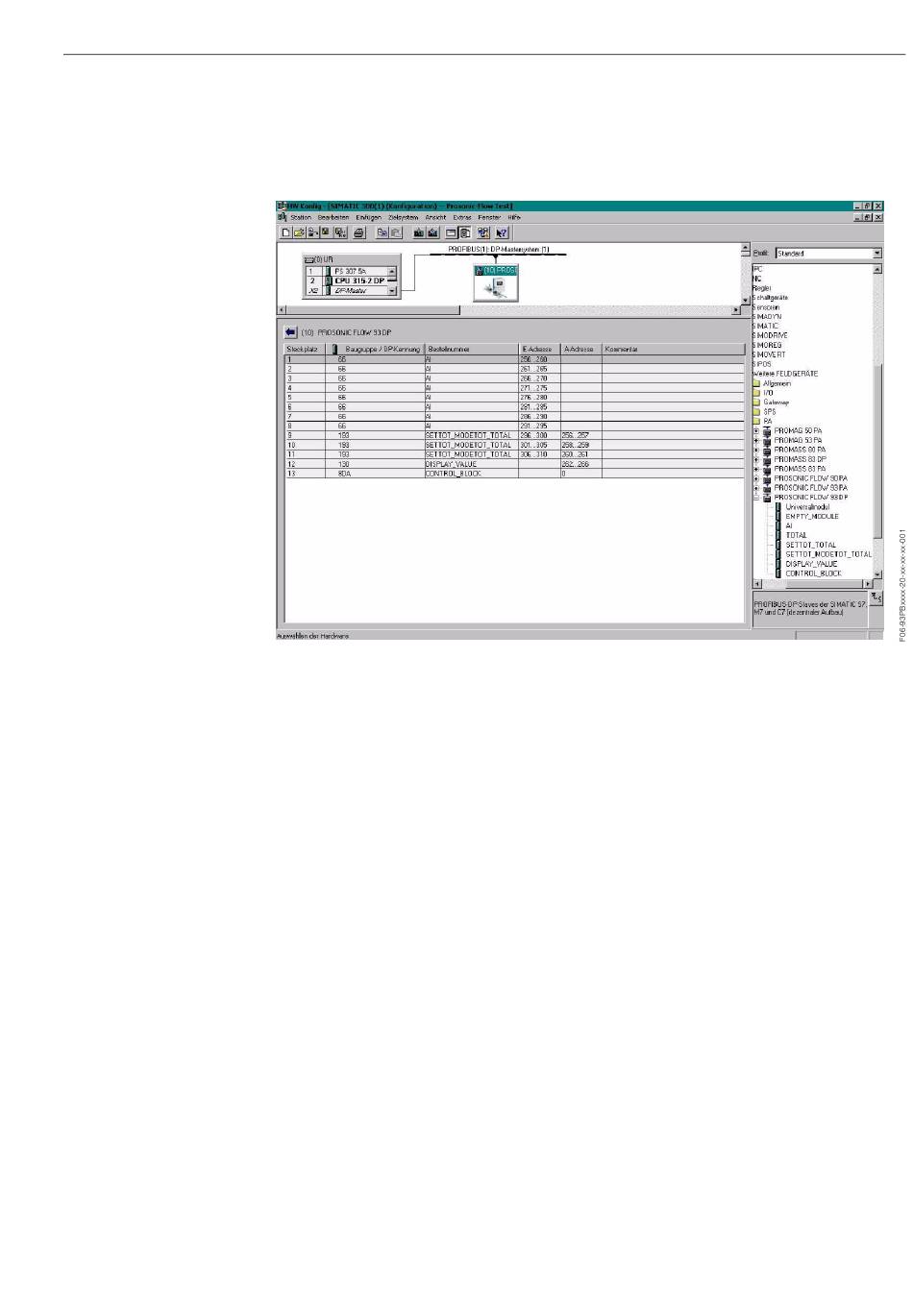

Configuration examples with Simatic S7 HW-Konfig
Example 1:
Full configuration using the manufacturer-specific GSD file
Slot 1-3:
AI volume flow CH1, AI sound velocity CH1,
AI flow velocity CH1
Slot 4-6:
AI volume flow CH2, AI sound velocity CH2,
AI flow velocity CH2
Slot 7-8:
AI volume flow average, AI sound velocity average
Slot 9:
Totalizer 1 + control (SETTOT, MODETOT)
Slot 10:
Totalizer 2 + control (SETTOT, MODETOT)
Slot 11:
Totalizer 3 + control (SETTOT, MODETOT)
Slot 12:
Display value (DISPLAY_VALUE)
Slot 13:
Control (CONTROL_BLOCK), manufacturer-specific
This form of configuration activates all data blocks which are supported by Prosonic
Flow 93. The significance of SETTOT and MODETOT is described on Page 104.
