Panel mounting
1. Prepare the opening in the panel (Fig. 44).
2. Slide the housing into the panel cutout from the front.
3. Screw the fasteners onto the wall-mount housing.
4. Screw the threaded rods into the brackets and tighten until the housing is firmly
fixed to the panel wall. Tighten the counter nuts. No further support is necessary.

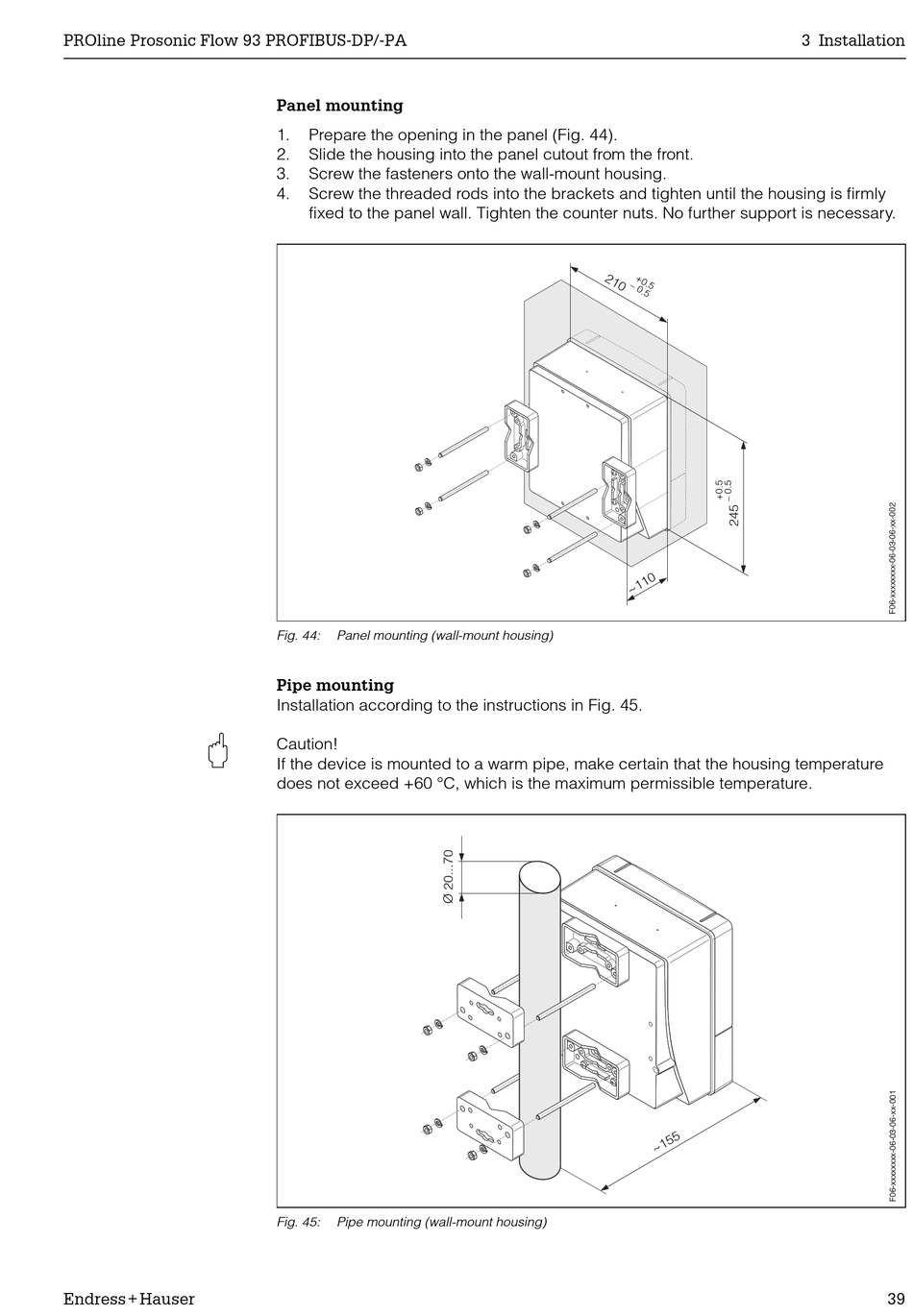

Fig. 44: Panel mounting (wall-mount housing)
Pipe mounting
Installation according to the instructions in Fig. 45.
Caution!
If the device is mounted to a warm pipe, make certain that the housing temperature
does not exceed +60 °C, which is the maximum permissible temperature.
Fig. 45: Pipe mounting (wall-mount housing)
