PROline Prosonic Flow 93 PROFIBUS-DP/-PA
!
Endress+Hauser
Display (operating mode)
The display area consists of three lines in all; this is where measured values are
displayed, and/or status variables (direction of flow, bar graph, etc.). You can change
the assignment of display lines to different variables to suit your needs and preferences
( o see the "Description of Device Functions" manual).
Multiplex mode:
A maximum of two different display variables can be assigned to each line.
Variables multiplexed in this way alternate every 10 seconds on the display.
Error messages:
The modes of presentation for system and process error messages are described in
detail on Page 58.
TOT1

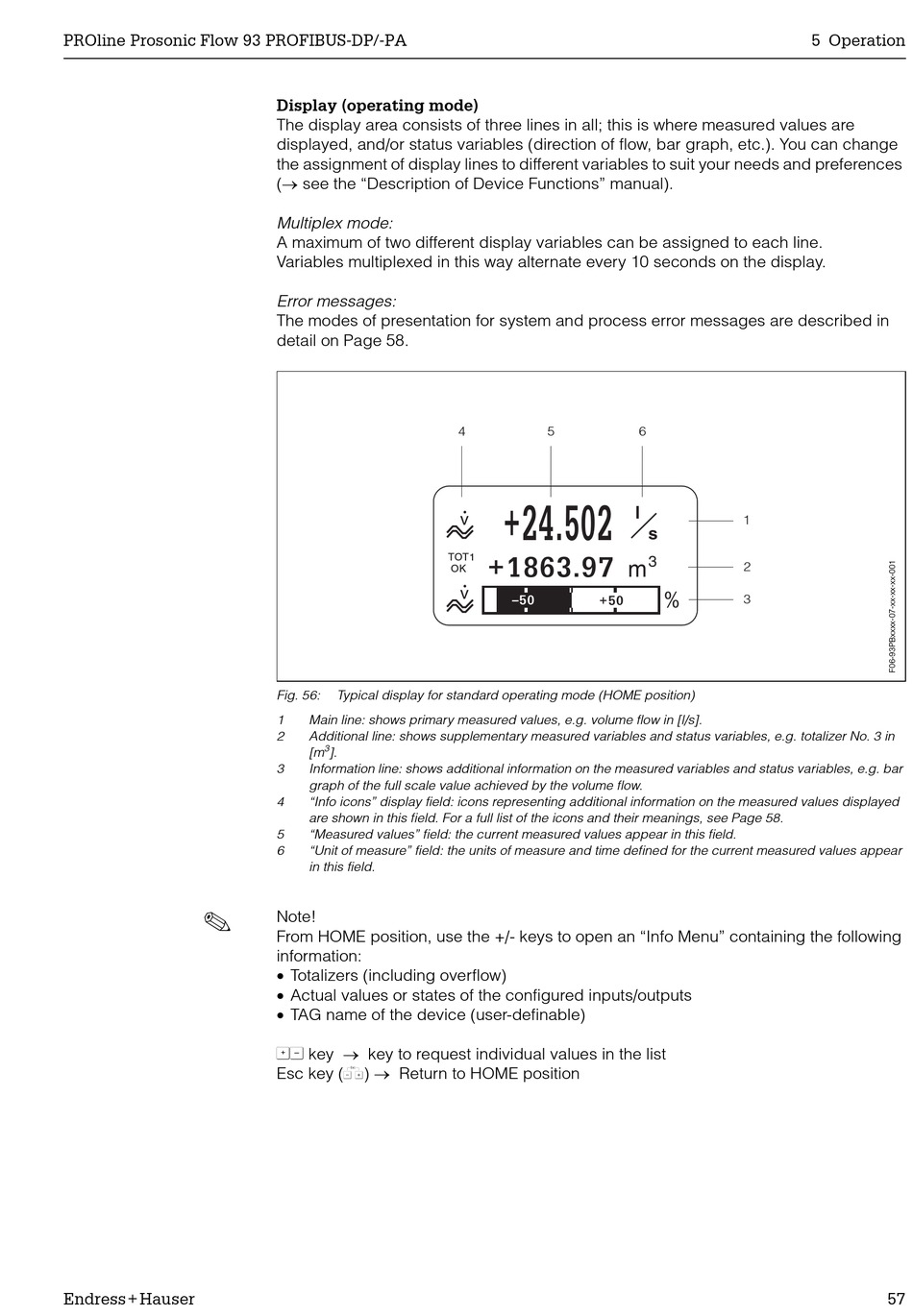

Fig. 56: Typical display for standard operating mode (HOME position)
1 Main line: shows primary measured values, e.g. volume flow in [l/s].
2 Additional line: shows supplementary measured variables and status variables, e.g. totalizer No. 3 in
3
[m ].
3 Information line: shows additional information on the measured variables and status variables, e.g. bar
graph of the full scale value achieved by the volume flow.
4 "Info icons" display field: icons representing additional information on the measured values displayed
are shown in this field. For a full list of the icons and their meanings, see Page 58.
5 "Measured values" field: the current measured values appear in this field.
6 "Unit of measure" field: the units of measure and time defined for the current measured values appear
in this field.
Note!
From HOME position, use the +/- keys to open an "Info Menu" containing the following
information:
x Totalizers (including overflow)
x Actual values or states of the configured inputs/outputs
x TAG name of the device (user-definable)
OS key o key to request individual values in the list
Esc key (X) o Return to HOME position
4 5
+24.502
v
+1863.97
OK
v
–50
+50
6
l
1
s
3
m
2
%
3
5 Operation
57
