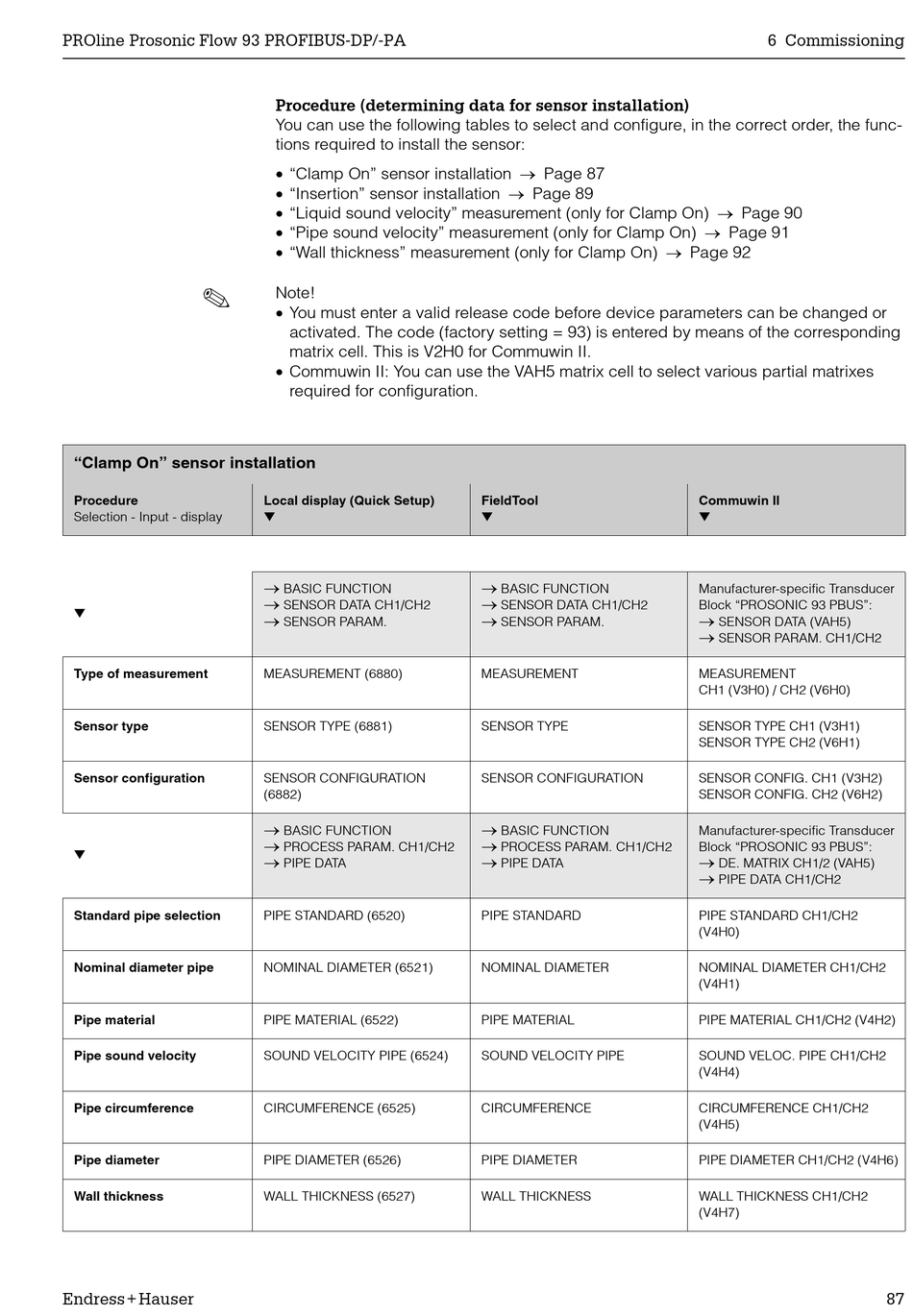

Endress+Hauser PROline prosonic flow 93 Operating Instructions Manual page 87

PROline Prosonic Flow 93 PROFIBUS-DP/-PA
!
"Clamp On" sensor installation
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
Sensor configuration
▼
Standard pipe selection
Nominal diameter pipe
Pipe material
Pipe sound velocity
Pipe circumference
Pipe diameter
Wall thickness
Endress+Hauser
Procedure (determining data for sensor installation)
You can use the following tables to select and configure, in the correct order, the func-
tions required to install the sensor:
x "Clamp On" sensor installation o Page 87
x "Insertion" sensor installation o Page 89
x "Liquid sound velocity" measurement (only for Clamp On) o Page 90
x "Pipe sound velocity" measurement (only for Clamp On) o Page 91
x "Wall thickness" measurement (only for Clamp On) o Page 92
Note!
x You must enter a valid release code before device parameters can be changed or
activated. The code (factory setting = 93) is entered by means of the corresponding
matrix cell. This is V2H0 for Commuwin II.
x Commuwin II: You can use the VAH5 matrix cell to select various partial matrixes
required for configuration.
Local display (Quick Setup)
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
SENSOR CONFIGURATION
(6882)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD (6520)
NOMINAL DIAMETER (6521)
PIPE MATERIAL (6522)
SOUND VELOCITY PIPE (6524)
CIRCUMFERENCE (6525)
PIPE DIAMETER (6526)
WALL THICKNESS (6527)
FieldTool
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
SENSOR CONFIGURATION
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD
NOMINAL DIAMETER
PIPE MATERIAL
SOUND VELOCITY PIPE
CIRCUMFERENCE
PIPE DIAMETER
WALL THICKNESS
6 Commissioning
Commuwin II
▼
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
MEASUREMENT
CH1 (V3H0) / CH2 (V6H0)
SENSOR TYPE CH1 (V3H1)
SENSOR TYPE CH2 (V6H1)
SENSOR CONFIG. CH1 (V3H2)
SENSOR CONFIG. CH2 (V6H2)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
DE. MATRIX CH1/2 (VAH5)
o
PIPE DATA CH1/CH2
PIPE STANDARD CH1/CH2
(V4H0)
NOMINAL DIAMETER CH1/CH2
(V4H1)
PIPE MATERIAL CH1/CH2 (V4H2)
SOUND VELOC. PIPE CH1/CH2
(V4H4)
CIRCUMFERENCE CH1/CH2
(V4H5)
PIPE DIAMETER CH1/CH2 (V4H6)
WALL THICKNESS CH1/CH2
(V4H7)
