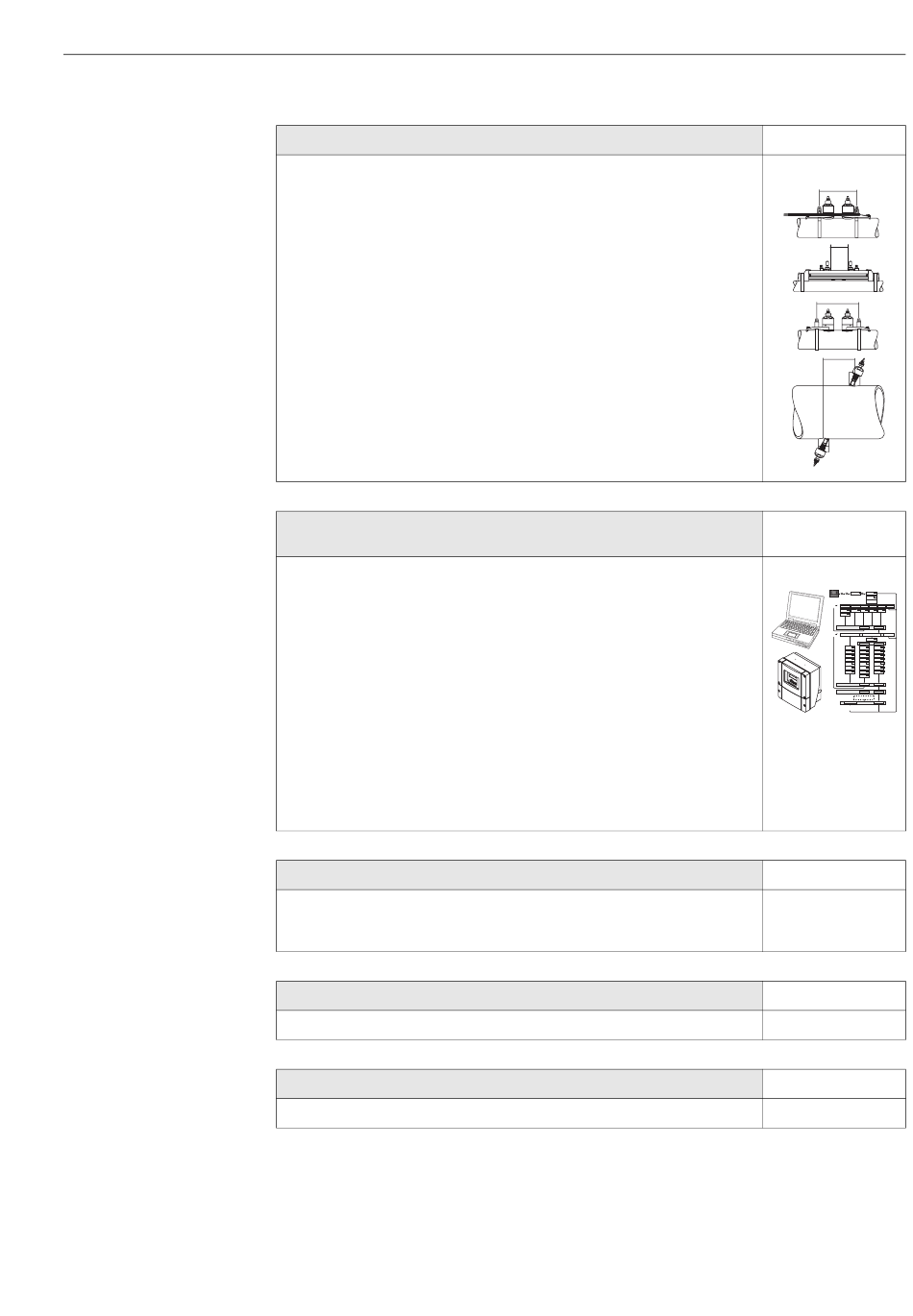

"SENSOR INSTALLATION" Quick Setup
Measuring devices with a local display:
o
Use this "Quick Setup" ( Page 78) to determine the data required for sensor
installation such as sensor distance (1), wire length, pipe materials, sound
velocity in liquids, etc.
– The system provides you with the sensor distance for the W/P/U "Clamp On"
versions as distance data. For the W and P sensors, you also receive the data
in the form of a letter for sensor 1 and in the form of a number for sensor 2. You
can thus easily position the sensors with the aid of the mounting rail.
– With the butt-weld version, you receive the sensor distance as distance data.
Measuring devices without a local display:
No "Sensor Installation" Quick Setup is available for devices without a local
display. The sensor installation procedure for such devices is explained on
Page 82.
Connection of the sensor/transmitter connecting cable
Commissioning via "QUICK SETUP"
Commissioning via PROFIBUS interface
Measuring devices with a local display:
You can commission your measuring device quickly and easily using the special
o
"Quick Setup" menu Page 80. This means that important basic functions
can be configured directly via the local display, e.g. display language,
measured variables, engineering units, etc.
Where necessary, the following adjustments and configurations must be carried
out separately:
– Zero point adjustment
– Bus address
– Tag name
– Configuration of the totalizers
Measuring devices without a local display:
No "Commissioning" Quick Setup is available for devices without a local display.
The commissioning procedure for such devices is explained on
Basic configuration (device parameters, automation functions)
Device-specific parameters are configured and the automation functions
specified for the PROFIBUS interface by means of configuration programs from
various manufacturers.
Cyclic data exchange, configuration examples
Application-specific commissioning
Device functions, zero point adjustment
▼
o
▼
▼
▼
System integration
▼
▼
Brief operating instructions
Page 82, 86
o
Page 42
Page 84, 93
o
Page 89
Page 93 ff.
Page 96 ff.
Page 113 ff.
1
1
1
1
ENDRESS+HAUSER
B Setup 1002
E + + Quick Setup + E
- + E Inbetriebn.
ESC 2000
Sprache
HOME-POSITION
System-
einheiten
Auswahl ➀
Volumenfluss Temperatur Viskosität Länge Geschw. Beenden
Systemeinheiten
Einheit 0402 Einheit 0422 Einheit 0423 Einheit 0424 Einheit 0425
Volumenfluss Temperatur Viskosität Länge Geschw.
Einheit 3001
Summenzähler
➁ Andere Einheit konfigurieren? JA NEIN
➂
Auswahl
Ausgangstyp Stromausgang n Freq.-/ Impulsausgang n Beenden
4200
Betriebsart
Frequenz Impuls
Zuord. 4000 Zuord. 4201 Zuord. 4221
Stromausgang Freq.-ausgang Imp.-ausgang
Strom- 4001 End- 4203 Impuls- 4222
bereich frequenz wertigkeit
Wert 4002 Wert 4204 Impuls- 4223
breite
0/4 mA f min
Wert 4003 Wert 4205 Max. 4224
20 mA f max Imp.-frequenz
Mess- 4004 Mess- 4206 Mess- 4225
modus modus modus
Zeit- 4005 Ausgangs- 4207 Ausgangs- 4226
konstante signal signal
Fehler- 4006 Zeit- 4208 Fehler- 4227
verhalten konstante verhalten
Fehler- 4209
verhalten
➃ Anderen Ausgang konfigurieren?
JA NEIN
Autom. Konfiguration Anzeige? JA NEIN
Automatische Parametrierung
der Anzeige
Abfrage: Anderes
Puls. Durchfluss NEIN
Quick Setup
Ausführung des
Quick Setup
Puls. Durchfluss
