PROline Prosonic Flow 93 PROFIBUS-DP/-PA

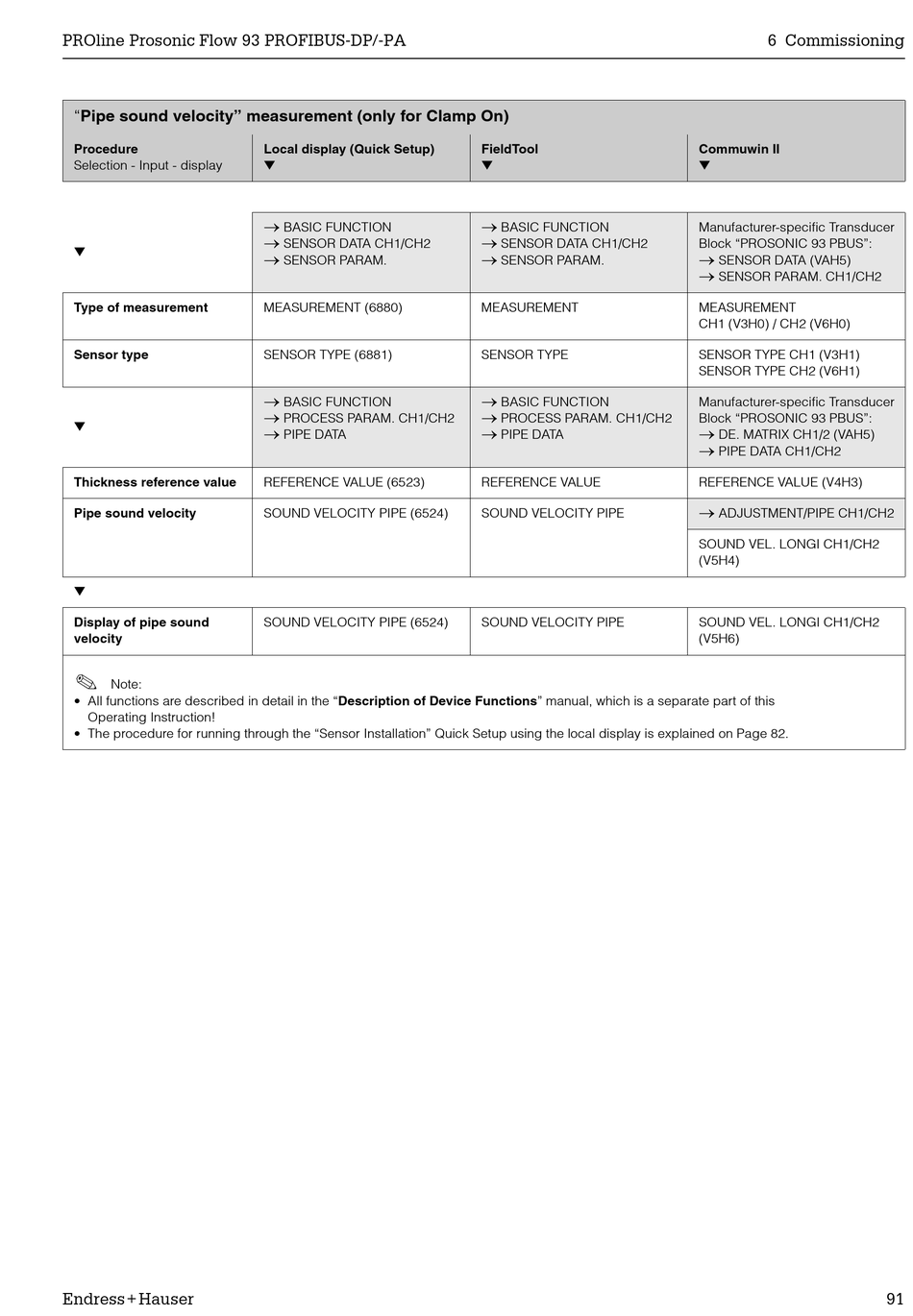

"Pipe sound velocity" measurement (only for Clamp On)
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
▼
Thickness reference value
Pipe sound velocity
▼
Display of pipe sound
velocity
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a separate part of this
Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local display is explained on Page 82.
Endress+Hauser
Local display (Quick Setup)
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
REFERENCE VALUE (6523)
SOUND VELOCITY PIPE (6524)
SOUND VELOCITY PIPE (6524)
FieldTool
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
REFERENCE VALUE
SOUND VELOCITY PIPE
SOUND VELOCITY PIPE
6 Commissioning
Commuwin II
▼
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
MEASUREMENT
CH1 (V3H0) / CH2 (V6H0)
SENSOR TYPE CH1 (V3H1)
SENSOR TYPE CH2 (V6H1)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
DE. MATRIX CH1/2 (VAH5)
o
PIPE DATA CH1/CH2
REFERENCE VALUE (V4H3)
o
ADJUSTMENT/PIPE CH1/CH2
SOUND VEL. LONGI CH1/CH2
(V5H4)
SOUND VEL. LONGI CH1/CH2
(V5H6)
