10 Technical data
154
10.4

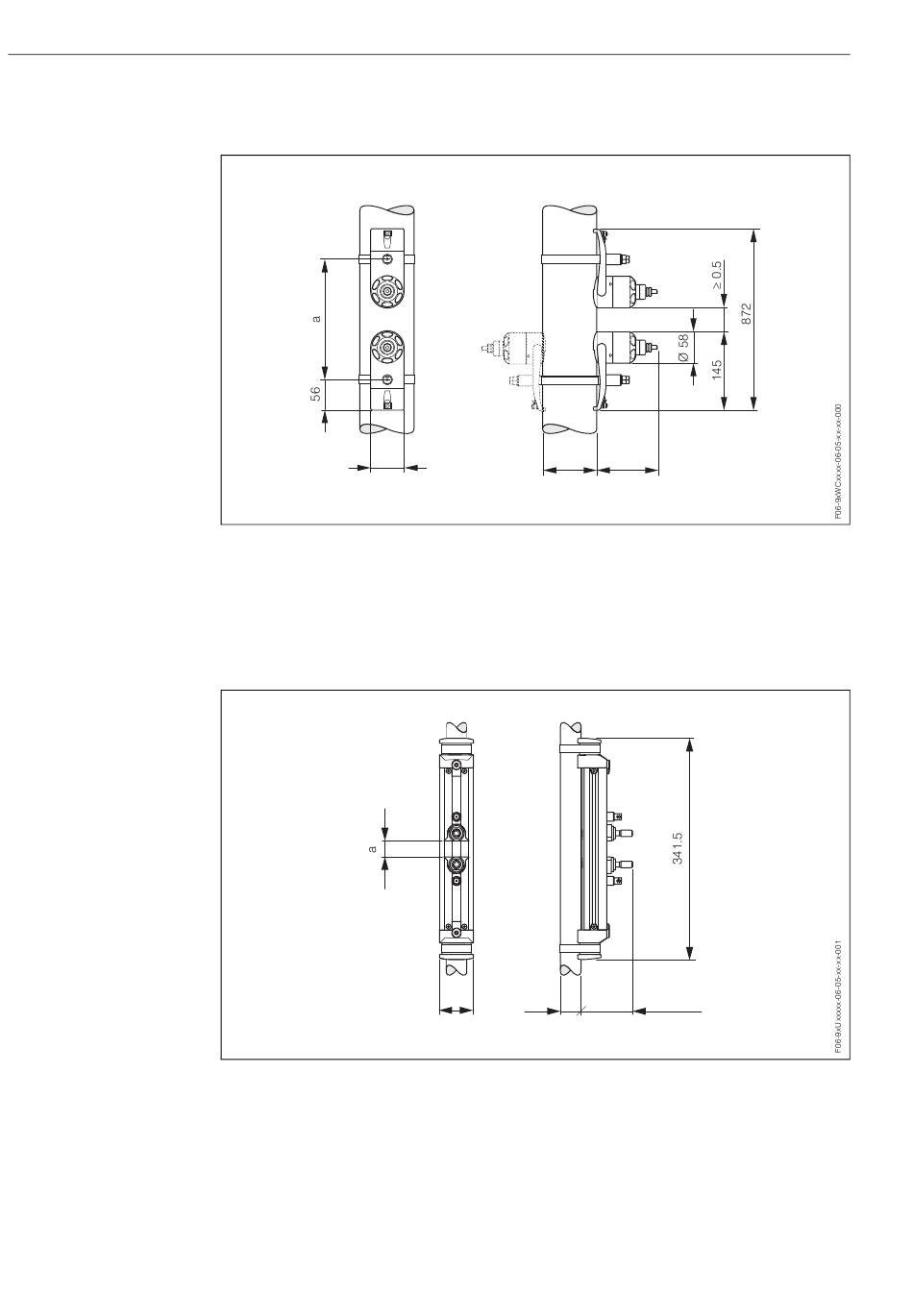

Dimensions of W sensors (Clamp On)
62
Fig. 79:
Dimensions of W sensor (Clamp On)
a = Sensor distance can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
10.5
Dimensions of U sensors (clamp on)
Fig. 80:
Dimensions of U sensor (clamp on)
a = Sensor spacing can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
b
52.5
b
111
max. 77.5
Endress+Hauser
