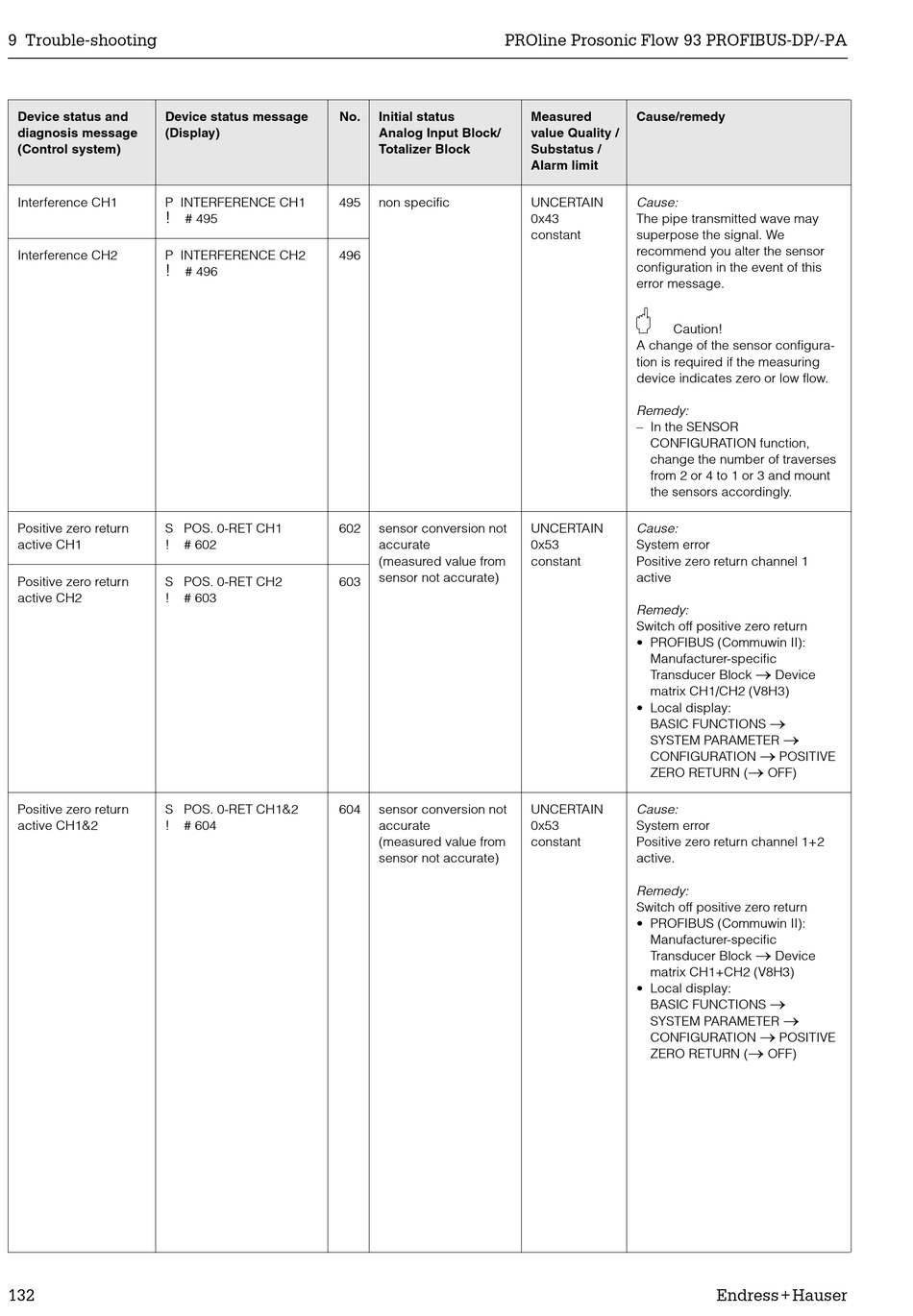

9 Trouble-shooting
Device status and Device status message
diagnosis message (Display)
(Control system)
Interference CH1 P INTERFERENCE CH1
!
Interference CH2 P INTERFERENCE CH2
!
Positive zero return S POS. 0-RET CH1
active CH1 !
Positive zero return S POS. 0-RET CH2
active CH2 !
Positive zero return S POS. 0-RET CH1&2
active CH1&2 !
132
No.
495
# 495
496
# 496
602
# 602
603
# 603
604
# 604
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
Initial status Measured
Analog Input Block/ value Quality /
Totalizer Block Substatus /
Alarm limit
non specific UNCERTAIN
0x43
constant
sensor conversion not UNCERTAIN
accurate 0x53
(measured value from constant
sensor not accurate)
sensor conversion not UNCERTAIN
accurate 0x53
(measured value from constant
sensor not accurate)
Cause/remedy
Cause:
The pipe transmitted wave may
superpose the signal. We
recommend you alter the sensor
configuration in the event of this
error message.
"
Caution!
A change of the sensor configura-
tion is required if the measuring
device indicates zero or low flow.
Remedy:
– In the SENSOR
CONFIGURATION function,
change the number of traverses
from 2 or 4 to 1 or 3 and mount
the sensors accordingly.
Cause:
System error
Positive zero return channel 1
active
Remedy:
Switch off positive zero return
• PROFIBUS (Commuwin II):
Manufacturer-specific
o
Transducer Block Device
matrix CH1/CH2 (V8H3)
• Local display:
o
BASIC FUNCTIONS
o
SYSTEM PARAMETER
o
CONFIGURATION POSITIVE
o
ZERO RETURN ( OFF)
Cause:
System error
Positive zero return channel 1+2
active.
Remedy:
Switch off positive zero return
• PROFIBUS (Commuwin II):
Manufacturer-specific
o
Transducer Block Device
matrix CH1+CH2 (V8H3)
• Local display:
o
BASIC FUNCTIONS
o
SYSTEM PARAMETER
o
CONFIGURATION POSITIVE
o
ZERO RETURN ( OFF)
