PROline Prosonic Flow 93 PROFIBUS-DP/-PA
Endress+Hauser
10.3

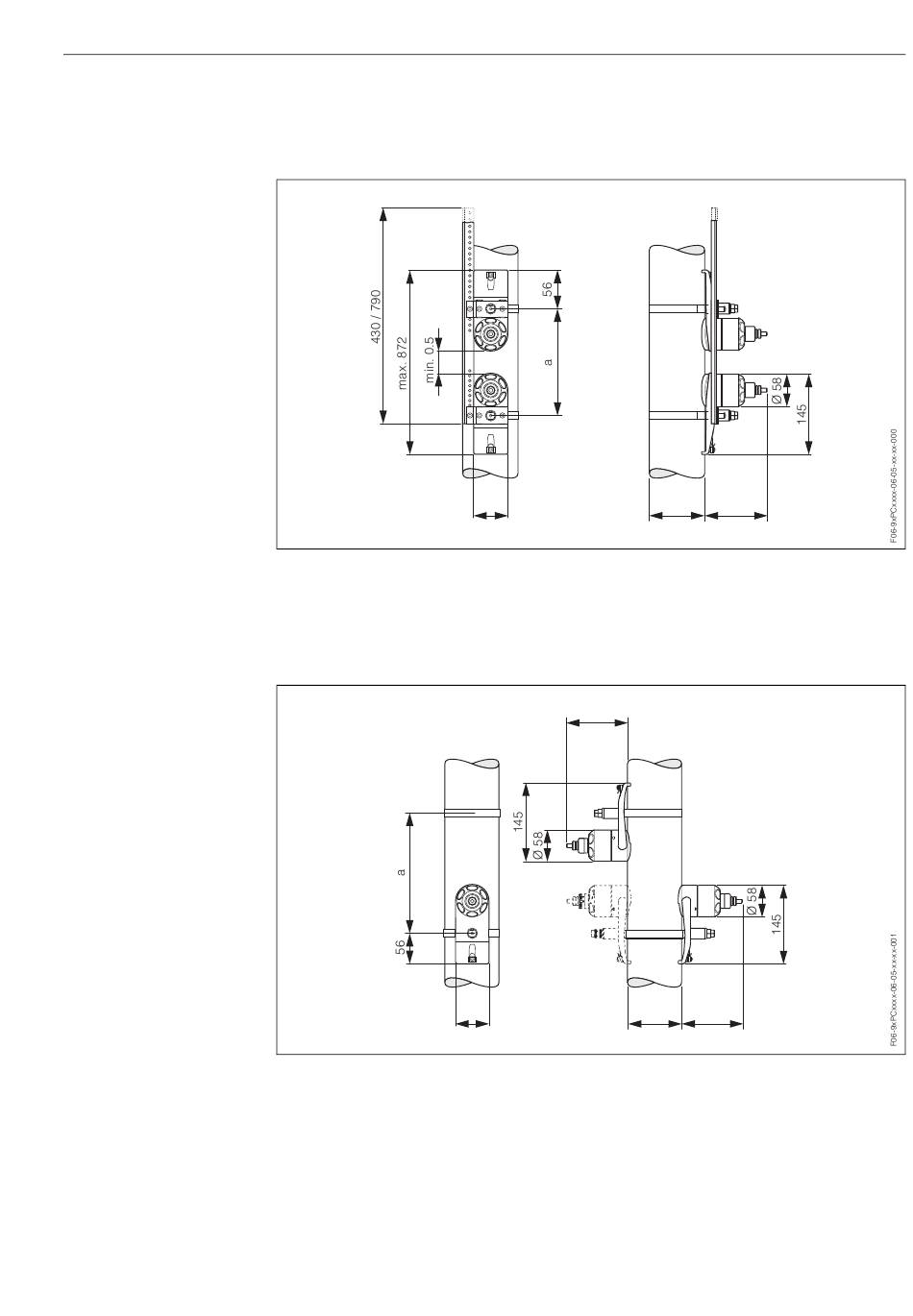

Dimensions of P sensors
2 or 4 traverses version
Fig. 77:
Dimensions of P sensor (2 or 4 traverses version)
a = Sensor distance can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
1 or 3 traverses version
Fig. 78:
Dimensions of P sensor (1 or 3 traverses version)
a = Sensor distance can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
62
111
62
10 Technical data
b
111
b
111
153
