Configuration of the device address

Note the following points:
x In the case of a PROFIBUS-DP/-PA device, it will always be necessary to configure the
address.
Valid device addresses lie within the range 0...125. Each address can only be used
once in a PROFIBUS-DP/-PA network. If an address is not configured correctly, the
device will not be recognised by the master.
The address 126 is used for initial commissioning and for service purposes.
x All devices have the address 126 and software addressing on leaving the factory.
Addressing using local operation o Page 85
Addressing using miniature switches
Warning!
Risk of electric shock. Exposed components carry dangerous voltages. Make sure that
the power supply is switched off before you remove the cover of the electronics
compartment.
1. Remove the screws and open the hinged cover (a) of the housing.
2. Remove the screws securing the electronics module (b). Then push up electronics
module and pull it as far as possible out of the wall-mount housing.
3. Unplug ribbon cable connector (c) of the display module.
4. Remove the cover (d) from the electronics compartment by loosening the screws.
5. Removing the I/O board (e):
Insert a thin pin into the opening provided and pull the board out of the holder.
6. Use a pointed object to adjust the positions of the miniature switches on the
I/O board.
7. Installation is the reverse of the removal procedure.

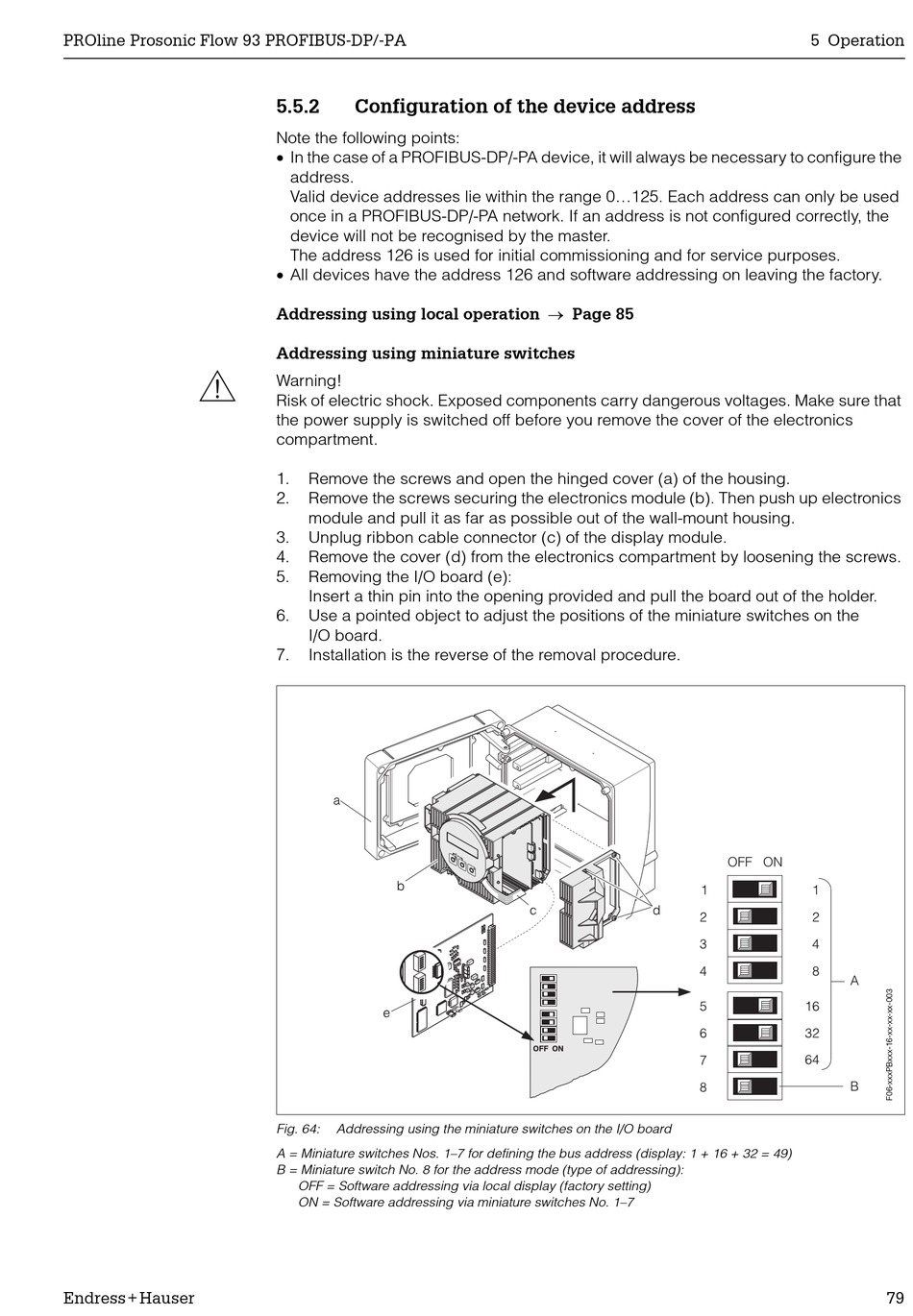

Fig. 64: Addressing using the miniature switches on the I/O board
A = Miniature switches Nos. 1–7 for defining the bus address (display: 1 + 16 + 32 = 49)
B = Miniature switch No. 8 for the address mode (type of addressing):
OFF = Software addressing via local display (factory setting)
ON = Software addressing via miniature switches No. 1–7
