6.3.2

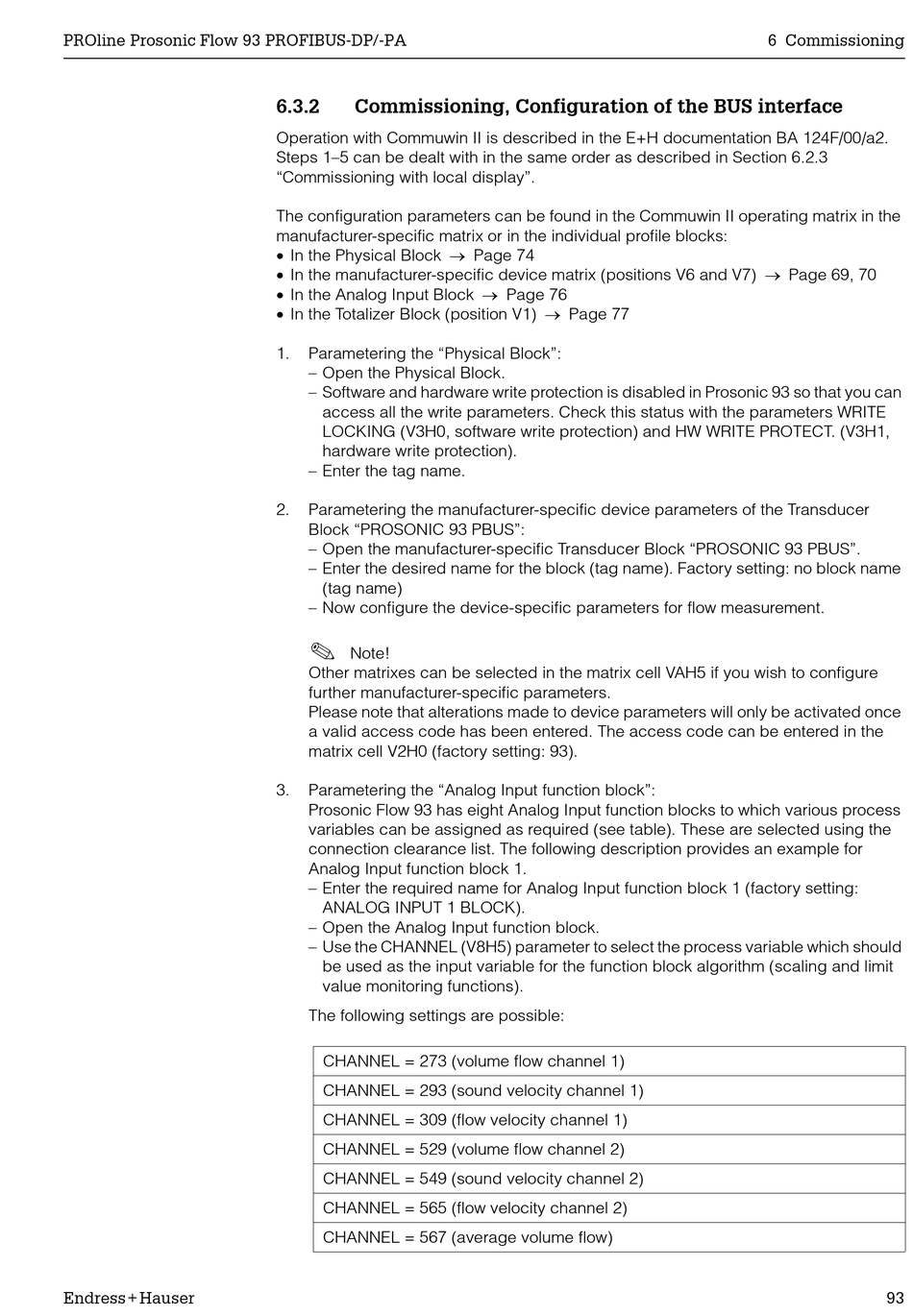

Commissioning, Configuration of the BUS interface

Operation with Commuwin II is described in the E+H documentation BA 124F/00/a2.
Steps 1–5 can be dealt with in the same order as described in Section 6.2.3
"Commissioning with local display".
The configuration parameters can be found in the Commuwin II operating matrix in the
manufacturer-specific matrix or in the individual profile blocks:
x In the Physical Block o Page 74
x In the manufacturer-specific device matrix (positions V6 and V7) o Page 69, 70
x In the Analog Input Block o Page 76
x In the Totalizer Block (position V1) o Page 77
1. Parametering the "Physical Block":
– Open the Physical Block.
– Software and hardware write protection is disabled in Prosonic 93 so that you can
access all the write parameters. Check this status with the parameters WRITE
LOCKING (V3H0, software write protection) and HW WRITE PROTECT. (V3H1,
hardware write protection).
– Enter the tag name.
2. Parametering the manufacturer-specific device parameters of the Transducer
Block "PROSONIC 93 PBUS":
– Open the manufacturer-specific Transducer Block "PROSONIC 93 PBUS".
– Enter the desired name for the block (tag name). Factory setting: no block name
(tag name)
– Now configure the device-specific parameters for flow measurement.
!
Note!
Other matrixes can be selected in the matrix cell VAH5 if you wish to configure
further manufacturer-specific parameters.
Please note that alterations made to device parameters will only be activated once
a valid access code has been entered. The access code can be entered in the
matrix cell V2H0 (factory setting: 93).
3. Parametering the "Analog Input function block":
Prosonic Flow 93 has eight Analog Input function blocks to which various process
variables can be assigned as required (see table). These are selected using the
connection clearance list. The following description provides an example for
Analog Input function block 1.
– Enter the required name for Analog Input function block 1 (factory setting:
ANALOG INPUT 1 BLOCK).
– Open the Analog Input function block.
– Use the CHANNEL (V8H5) parameter to select the process variable which should
be used as the input variable for the function block algorithm (scaling and limit
value monitoring functions).
The following settings are possible:
CHANNEL = 273 (volume flow channel 1)
CHANNEL = 293 (sound velocity channel 1)
CHANNEL = 309 (flow velocity channel 1)
CHANNEL = 529 (volume flow channel 2)
CHANNEL = 549 (sound velocity channel 2)
CHANNEL = 565 (flow velocity channel 2)
CHANNEL = 567 (average volume flow)
