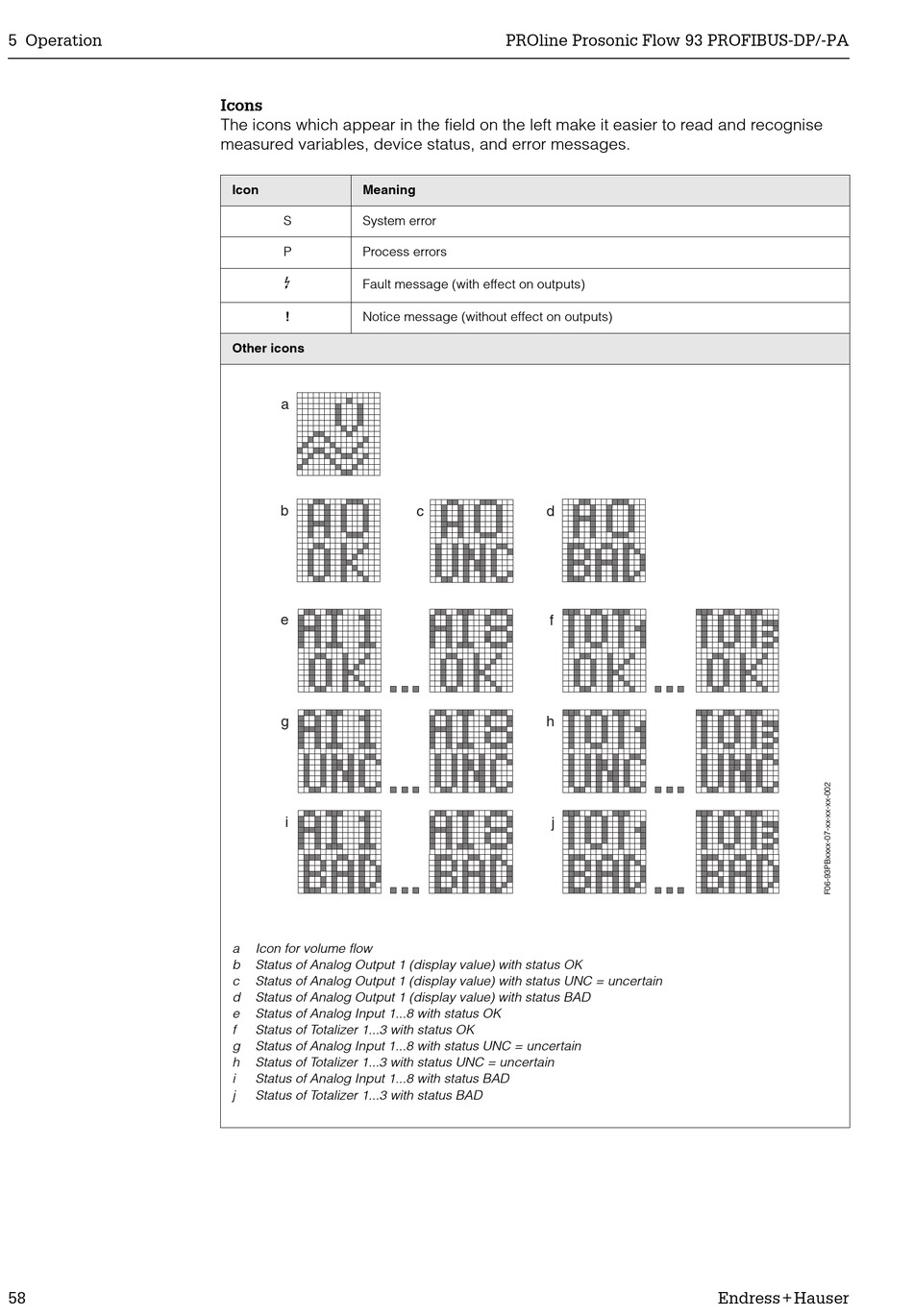

Icons
The icons which appear in the field on the left make it easier to read and recognise
measured variables, device status, and error messages.
Icon Meaning
S System error
P Process errors
$
Fault message (with effect on outputs)
! Notice message (without effect on outputs)
Other icons
a
b
e
g
i
a Icon for volume flow
b Status of Analog Output 1 (display value) with status OK
c Status of Analog Output 1 (display value) with status UNC = uncertain
d Status of Analog Output 1 (display value) with status BAD
e Status of Analog Input 1...8 with status OK
f Status of Totalizer 1...3 with status OK
g Status of Analog Input 1...8 with status UNC = uncertain
h Status of Totalizer 1...3 with status UNC = uncertain
i Status of Analog Input 1...8 with status BAD
j Status of Totalizer 1...3 with status BAD
