6 Commissioning

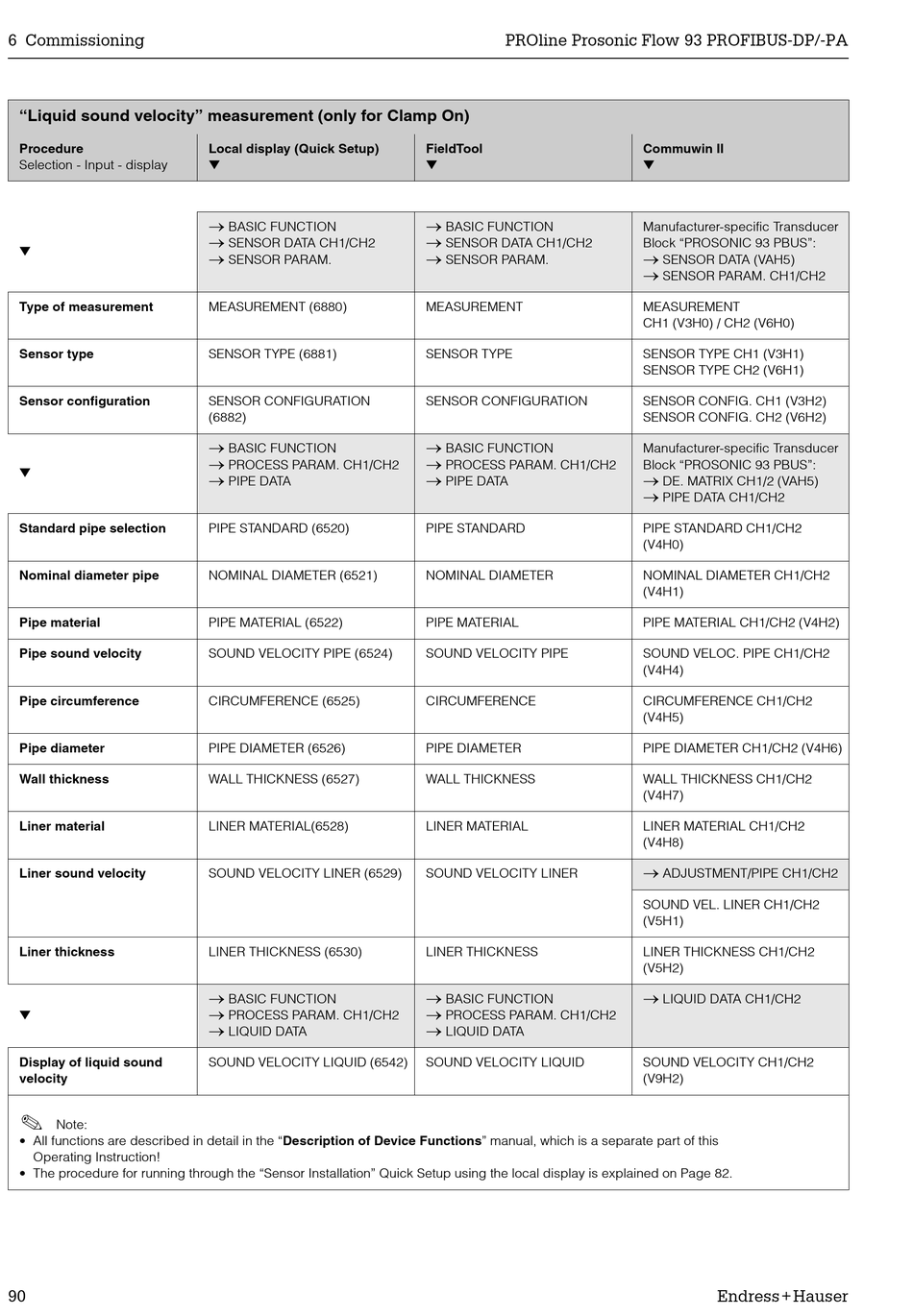

"Liquid sound velocity" measurement (only for Clamp On)
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
Sensor configuration
▼
Standard pipe selection
Nominal diameter pipe
Pipe material
Pipe sound velocity
Pipe circumference
Pipe diameter
Wall thickness
Liner material
Liner sound velocity
Liner thickness
▼
Display of liquid sound
velocity
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a separate part of this
Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local display is explained on Page 82.
90
Local display (Quick Setup)
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
SENSOR CONFIGURATION
(6882)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD (6520)
NOMINAL DIAMETER (6521)
PIPE MATERIAL (6522)
SOUND VELOCITY PIPE (6524)
CIRCUMFERENCE (6525)
PIPE DIAMETER (6526)
WALL THICKNESS (6527)
LINER MATERIAL(6528)
SOUND VELOCITY LINER (6529)
LINER THICKNESS (6530)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
LIQUID DATA
SOUND VELOCITY LIQUID (6542)
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
FieldTool
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
SENSOR CONFIGURATION
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD
NOMINAL DIAMETER
PIPE MATERIAL
SOUND VELOCITY PIPE
CIRCUMFERENCE
PIPE DIAMETER
WALL THICKNESS
LINER MATERIAL
SOUND VELOCITY LINER
LINER THICKNESS
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
LIQUID DATA
SOUND VELOCITY LIQUID
Commuwin II
▼
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
MEASUREMENT
CH1 (V3H0) / CH2 (V6H0)
SENSOR TYPE CH1 (V3H1)
SENSOR TYPE CH2 (V6H1)
SENSOR CONFIG. CH1 (V3H2)
SENSOR CONFIG. CH2 (V6H2)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
DE. MATRIX CH1/2 (VAH5)
o
PIPE DATA CH1/CH2
PIPE STANDARD CH1/CH2
(V4H0)
NOMINAL DIAMETER CH1/CH2
(V4H1)
PIPE MATERIAL CH1/CH2 (V4H2)
SOUND VELOC. PIPE CH1/CH2
(V4H4)
CIRCUMFERENCE CH1/CH2
(V4H5)
PIPE DIAMETER CH1/CH2 (V4H6)
WALL THICKNESS CH1/CH2
(V4H7)
LINER MATERIAL CH1/CH2
(V4H8)
o
ADJUSTMENT/PIPE CH1/CH2
SOUND VEL. LINER CH1/CH2
(V5H1)
LINER THICKNESS CH1/CH2
(V5H2)
o
LIQUID DATA CH1/CH2
SOUND VELOCITY CH1/CH2
(V9H2)
