10 Technical data
Reference operating
conditions
Max. measured error
Repeatability
146
10.1.6

Performance characteristics

x Medium temperature range: +28 °C ± 2 K
x Ambient temperature range: +22 °C ± 2 K
x Warm-up period: 30 minutes
Installation:
x Inlet run >10 x DN
x Outlet run > 5 x DN
x Sensor and transmitter grounded.
For flow velocities > 0.3 m/s and a Reynolds number >10000, the system accuracy is:
x Pipe diameter DN < 50: ± 0,5 % o.r. ± 0,1 % o.f.s. *
x Pipe diameter 50 < DN < 200: ± 0.5 % o.r. ± 0.05 % o.f.s.
x Pipe diameter DN > 200: ± 0.5 % o.r. ± 0.02 % o.f.s.
o.r. = of reading
o.f.s. = of full scale value
* plastic pipes only
As standard, the system is dry-calibrated. The dry calibration procedure results in an
additional uncertainty of measurement. This measuring uncertainty is better than 1.5%
typically. During dry calibration, the characteristics of the pipe and the fluid are derived
to calculate the calibration factor.
As verification of the accuracy, an accuracy report is offered as an option.
Accuracy is verified using a stainless steel pipe.

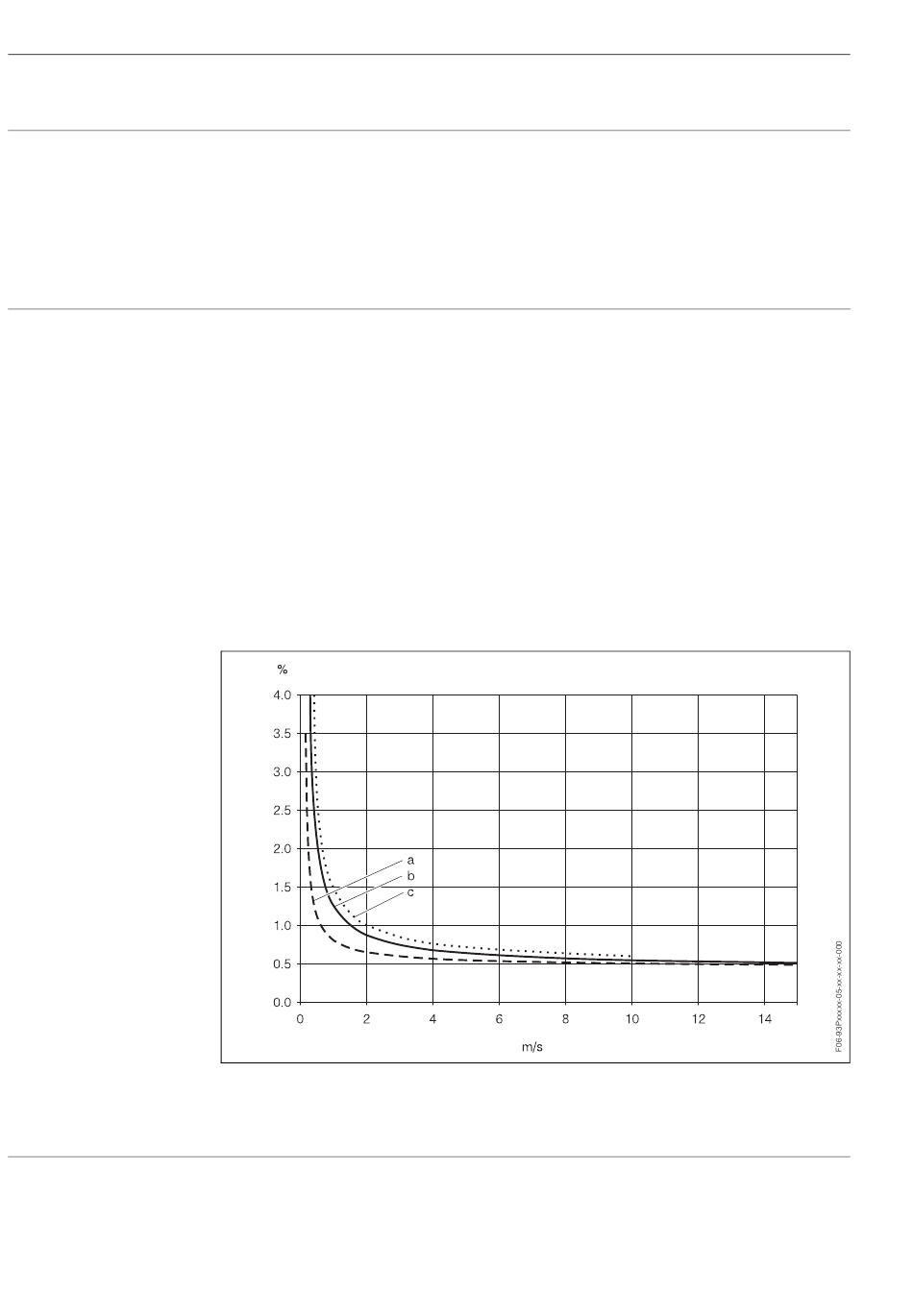

Fig. 75: Max. measured error (wet calibration) in % of reading
a = Pipe diameter DN > 200
b = pipe diameter 50 < DN < 200
c = pipe diameter DN < 50
Max. ± 0.3% for flow velocities > 0.3 m/s
