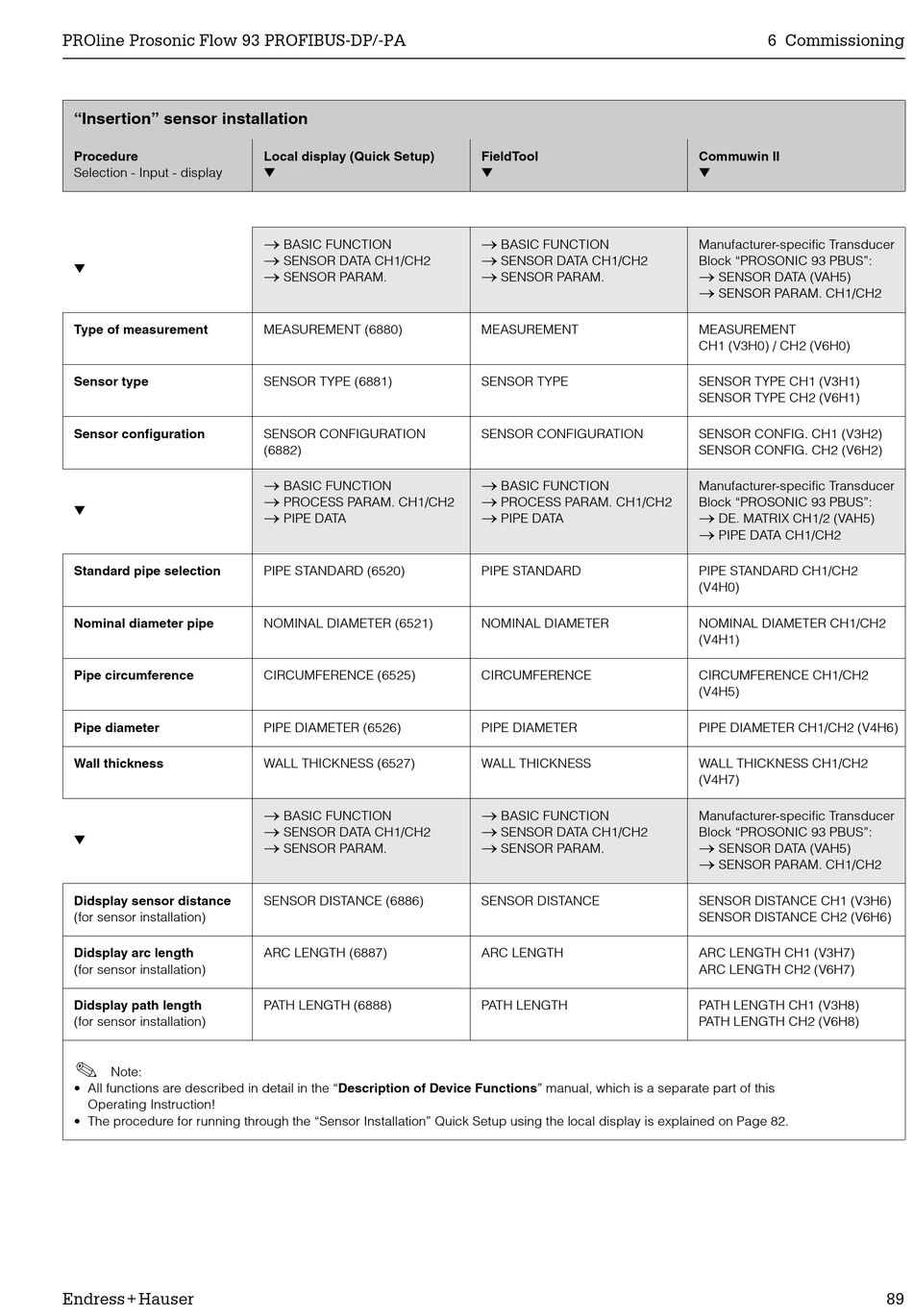

PROline Prosonic Flow 93 PROFIBUS-DP/-PA
"Insertion" sensor installation
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
Sensor configuration
▼
Standard pipe selection
Nominal diameter pipe
Pipe circumference
Pipe diameter
Wall thickness
▼
Didsplay sensor distance
(for sensor installation)
Didsplay arc length
(for sensor installation)
Didsplay path length
(for sensor installation)
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a separate part of this
Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local display is explained on Page 82.
Endress+Hauser
Local display (Quick Setup)
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
SENSOR CONFIGURATION
(6882)
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD (6520)
NOMINAL DIAMETER (6521)
CIRCUMFERENCE (6525)
PIPE DIAMETER (6526)
WALL THICKNESS (6527)
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
SENSOR DISTANCE (6886)
ARC LENGTH (6887)
PATH LENGTH (6888)
FieldTool
▼
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
SENSOR CONFIGURATION
o
BASIC FUNCTION
o
PROCESS PARAM. CH1/CH2
o
PIPE DATA
PIPE STANDARD
NOMINAL DIAMETER
CIRCUMFERENCE
PIPE DIAMETER
WALL THICKNESS
o
BASIC FUNCTION
o
SENSOR DATA CH1/CH2
o
SENSOR PARAM.
SENSOR DISTANCE
ARC LENGTH
PATH LENGTH
6 Commissioning
Commuwin II
▼
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
MEASUREMENT
CH1 (V3H0) / CH2 (V6H0)
SENSOR TYPE CH1 (V3H1)
SENSOR TYPE CH2 (V6H1)
SENSOR CONFIG. CH1 (V3H2)
SENSOR CONFIG. CH2 (V6H2)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
DE. MATRIX CH1/2 (VAH5)
o
PIPE DATA CH1/CH2
PIPE STANDARD CH1/CH2
(V4H0)
NOMINAL DIAMETER CH1/CH2
(V4H1)
CIRCUMFERENCE CH1/CH2
(V4H5)
PIPE DIAMETER CH1/CH2 (V4H6)
WALL THICKNESS CH1/CH2
(V4H7)
Manufacturer-specific Transducer
Block "PROSONIC 93 PBUS":
o
SENSOR DATA (VAH5)
o
SENSOR PARAM. CH1/CH2
SENSOR DISTANCE CH1 (V3H6)
SENSOR DISTANCE CH2 (V6H6)
ARC LENGTH CH1 (V3H7)
ARC LENGTH CH2 (V6H7)
PATH LENGTH CH1 (V3H8)
PATH LENGTH CH2 (V6H8)
