INTRODUCTION TO THE COMPONENT PROCESSOR

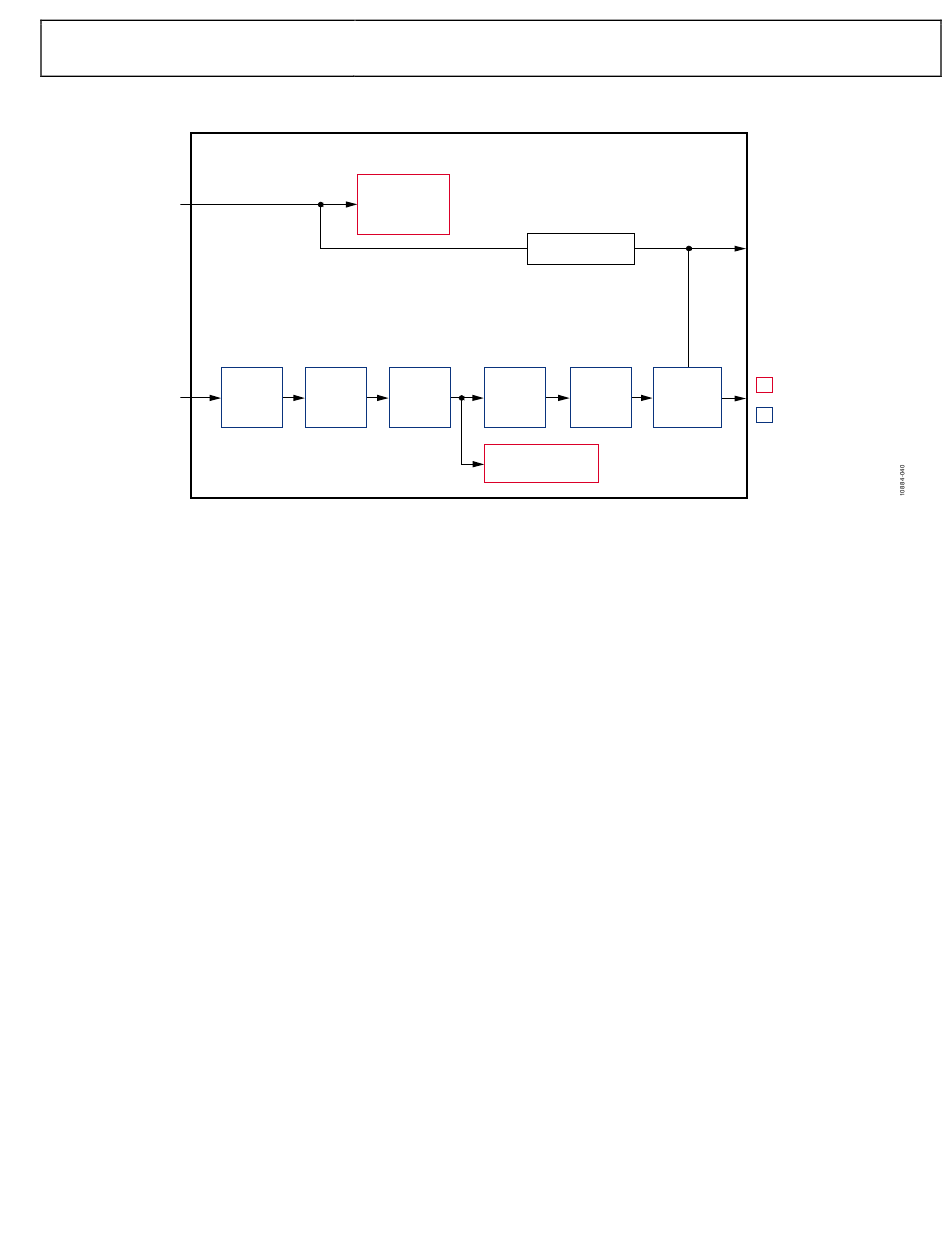

A simplified block diagram of the component processor (CP) on the
data preprocessor (DPP). The CP circuitry is activated under the control of
The CP is activated for the following modes of operation:
•
Manual and automatic gain control
•
Manual offset correction
•
Saturation
•
Insertion of timing codes and blanking data
The CP also has the following capabilities:
•
Generates HSync, VSync, FIELD, and data enable (DE) timing reference outputs
•
Color space conversion
•
Color control adjustment

CLAMP OPERATION

The CP contains a digital fine clamp block. Its main purposes is to allow a clamp to operate even if the input signal is coming from a
digital source
The digital fine clamp operates in three separate feedback loops, one for each channel. The incoming video signal level is measured at the
back porch. The level error, that is, clamp error, is compensated for by subtracting or adding a digital number to the data stream.
The digital clamp loop can be operated in an automatic or a manual mode with the following options:
•
The clamp values for Channel B and Channel C can be set manually. This is the recommended mode.
•
The clamp value is determined automatically on a line-by-line basis.
•
The clamp loops can be frozen. This means that the currently active offsets will no longer be updated but will be applied
permanently.
•
The clamp value for channel A can be set manually (static value).
Note: The target clamp level for black input is a digital code of 0. This is to facilitate the highest possible signal to noise ratio (SNR).
Some interfaces, for example, ITU-R. BT656, require black to correspond to a value other than 0. To facilitate this, there is an additional
independent offset adder block after the gain multipliers for which separate fixed offset values can be supplied. Refer to the CP Offset
Block section for additional information.
