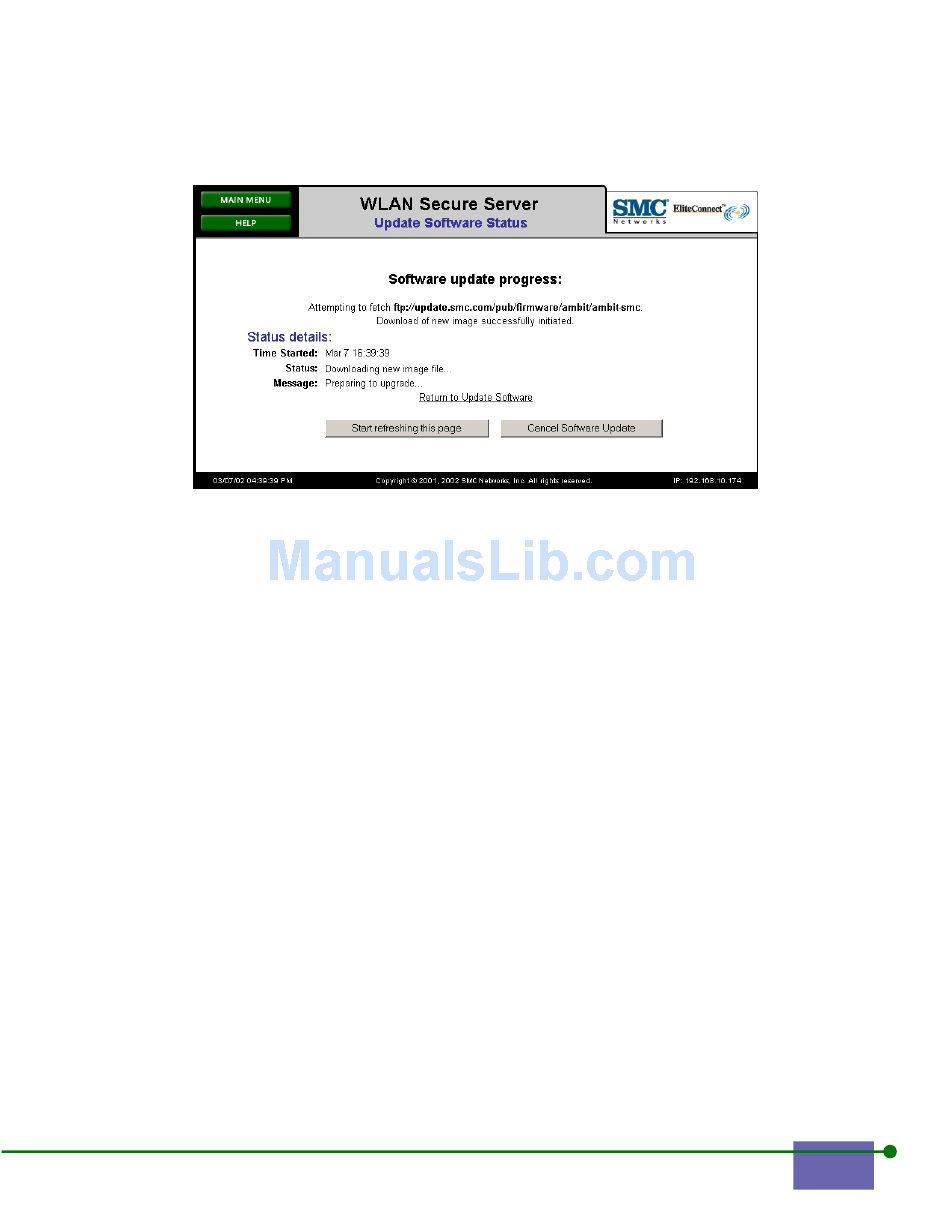

This is the initial status screen after you click Download. It has a Start refreshing
this page button; this screen does not refresh unless you click that button.
The screen refreshes approximately every 10 seconds, displaying updated status
information. After the download is complete, the status message indicates
unpacking the new image file. After unpacking is complete, the screen stops
refreshing, and a completion message appears:
New image successfully installed. Initiating reboot.
If you did not check the box that says Reboot with new version when finished
downloading, then the download proceeds, with the new software replacing the
alternate version software and without rebooting. The Update Software screen
displays both an installed version as well as an alternate version, as shown in
Figure 4-10. You are notified if the new image is successfully installed. You must
then reboot to the alternate version to complete the update of the software.
Note:
Depending on the amount of data on your system, you might have to wait 90 seconds to
before you can log in again.
4.4

Rebooting or Shutting Down the System

To reboot, shut down, or reset your WLAN Secure Server to factory defaults
settings and reboot:
Step 1.
Click System Shutdown from the Main Menu.
The System Shutdown appears, as shown in
SMC EliteConnect WLAN Security System User Guide
Figure 4-11. Software Update Status
Figure 4-12.
4-9
