Example 7, Trap Known Port

You might have some need to block a specific port for everyone. Something we've
been asked for is how to block a well known streaming port in a public Access
Point. Let's take Gnutella's default port 6346 as an example.
Step 1.
Modify our default Guest group, so that Guests can't use this port.
Step 2.
Edit the Guest group, and then click New in the list of Redirects.
Step 3.
Call this Redirect Gnutella trap, trap the TCP protocol on port 6346, and
redirect it to address 0.0.0.0, as shown in
EliteConnect WLAN Security System User Manual

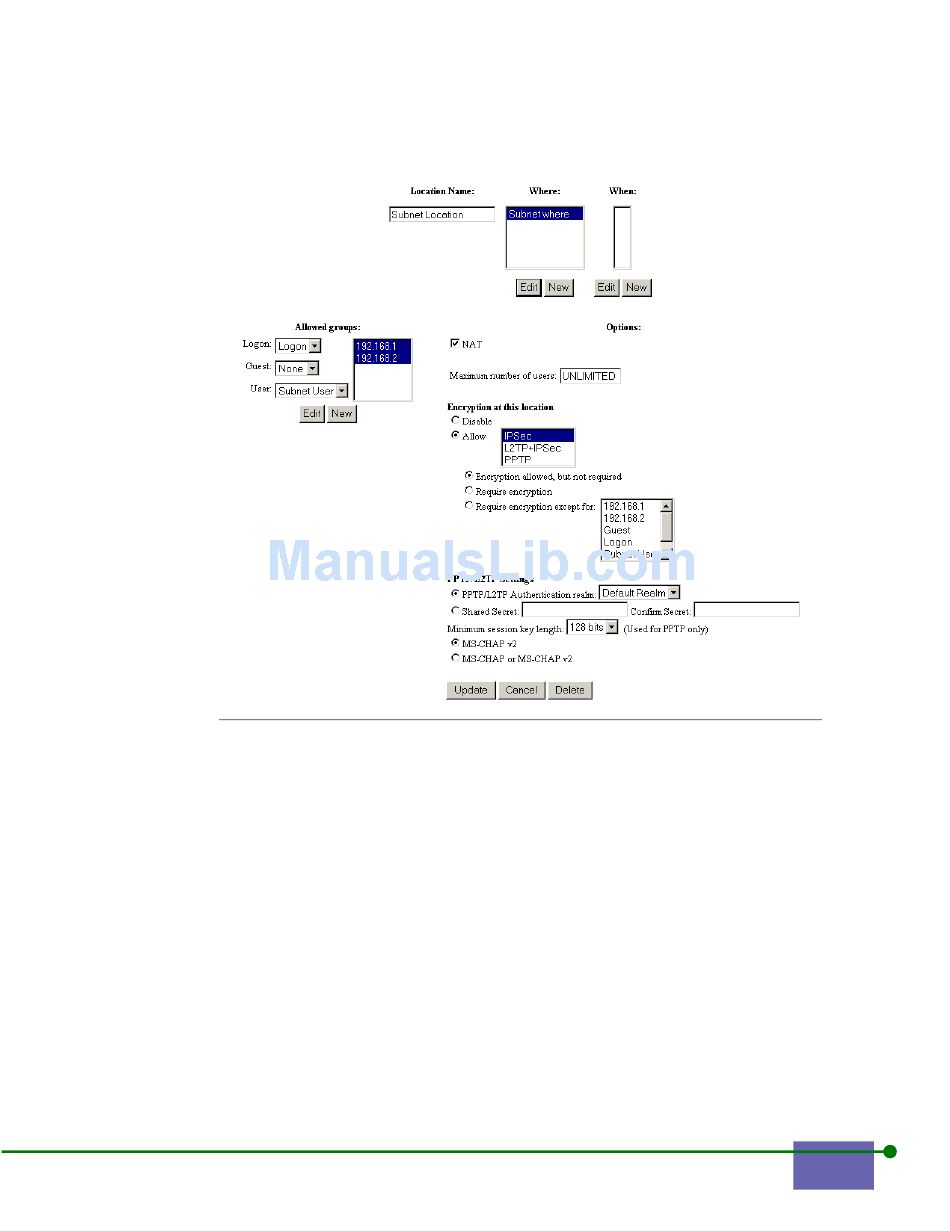

Figure C-40. Locations Manager
Figure C-41.
