SMC Networks ELITECONNECT SMC2502W User Manual page 199

Notice that the Wired Where we are creating is using the port 1, where the previous
Example Where uses all ports. So a user who shows up on this WLAN Access
Manager on port 1 is associated with this location Where before they associate with
the other where. The more specific interface always overrides the more general All.
Step 4.
Select the newly created Where in our Wired Location.
Step 5.
Also, select the Wired Logon instead of the regular Logon group.
Note:
Do not select any Guest, User, or Normal groups, as shown in
EliteConnect WLAN Security System User Manual

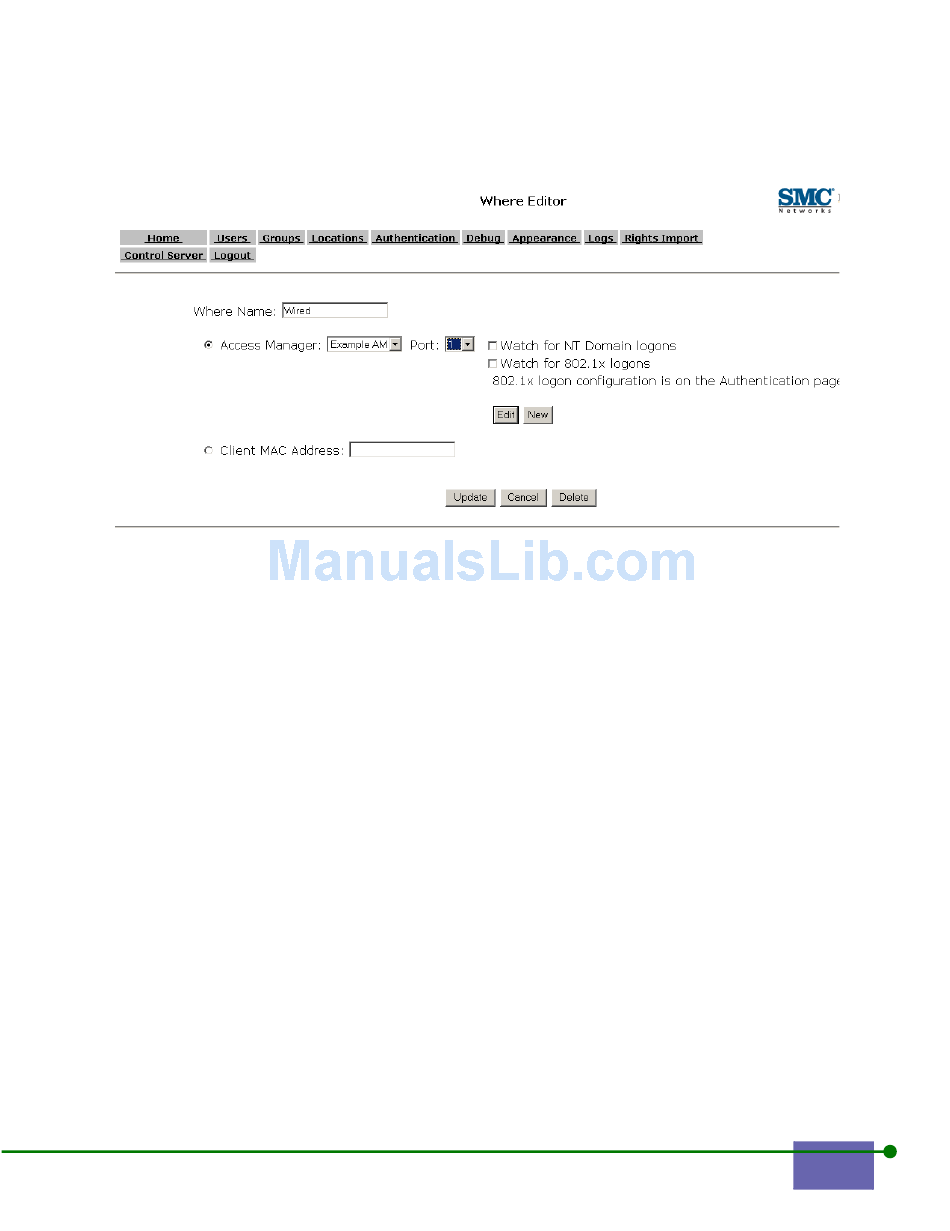

Figure C-21. Where Editor with Wired Where
Figure C-22
.
C-31
