Step 6.
Click Submit Changes.
Note:
To complete the PPTP or L2TP configuration, you need to configure PPTP settings as
shown above on the WLAN Access Manager, as well as the WLAN Secure Server's
Rights Manager, and on the client application.
3.3

Configuring IPSec

Configuration of IPSec consists of three parts in the WLAN Access Manager:
enable or disable, specifying the shared secret, and checking allowed encryption
and secure hash algorithms. There is also an enable/require IPSec setting on a per-
location basis in the Rights Manager.
An IPSec client negotiates with the IPSec server to set the various options for
encryption and integrity assurance. The IPSec configuration screen allows the
network administrator to specify which IKE and ESP encryption and integrity
algorithms that the WLAN Secure Server and WLAN Access Manager will
negotiate with the client.
To configure security:
Step 1.
Click IPSec Configuration from the Main Menu.
The IPsec Configuration screen appears, as shown in
VPN Security (Airwave Security)

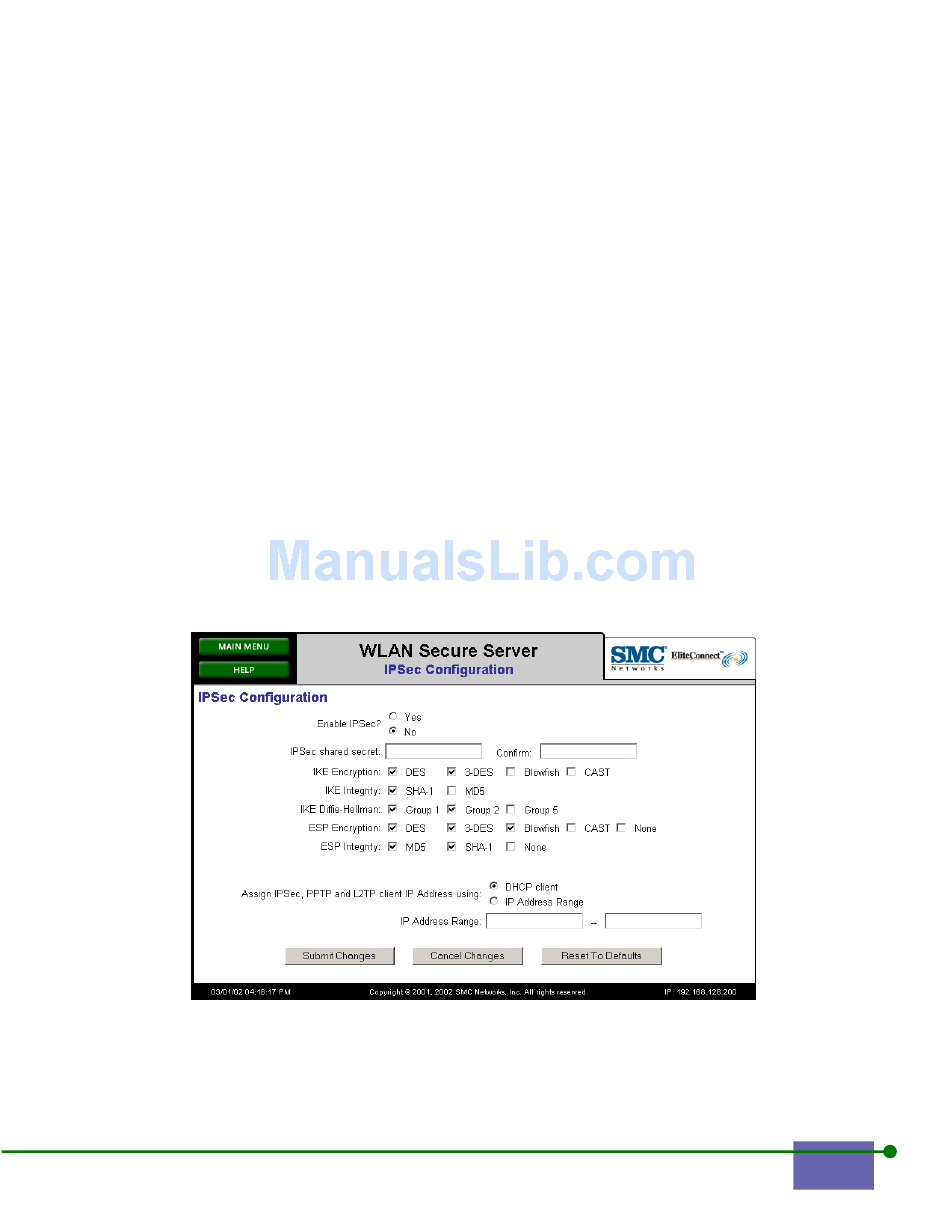

Figure 3-2. IPSec Configuration
Figure 3-2.
3-7
