LOG Screens

MAIN------------------
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/PAGE2-------
PG1 LOGS STAT
STATUS/CC/LOG1-----P00
TODAY
21Vp 00.0Ap 0.00kWp
DOWN DAY- DAY+
STATUS/CC/LOG2-----P00
TODAY
max 14.5V
DOWN DAY- DAY+
STATUS/CC/LOG3-----P00
TODAY
DOWN DAY- DAY+
STATUS/CC/METER----P00
end of cc logs display
TOP
C
900-0009-01-00 Rev
1:35:04p
CC DC MAIN
MAIN
0 AH 00.0 kWH
PORT
battery
min 14.4V
PORT
absorb float
00:00 00:00
PORT
STATUS

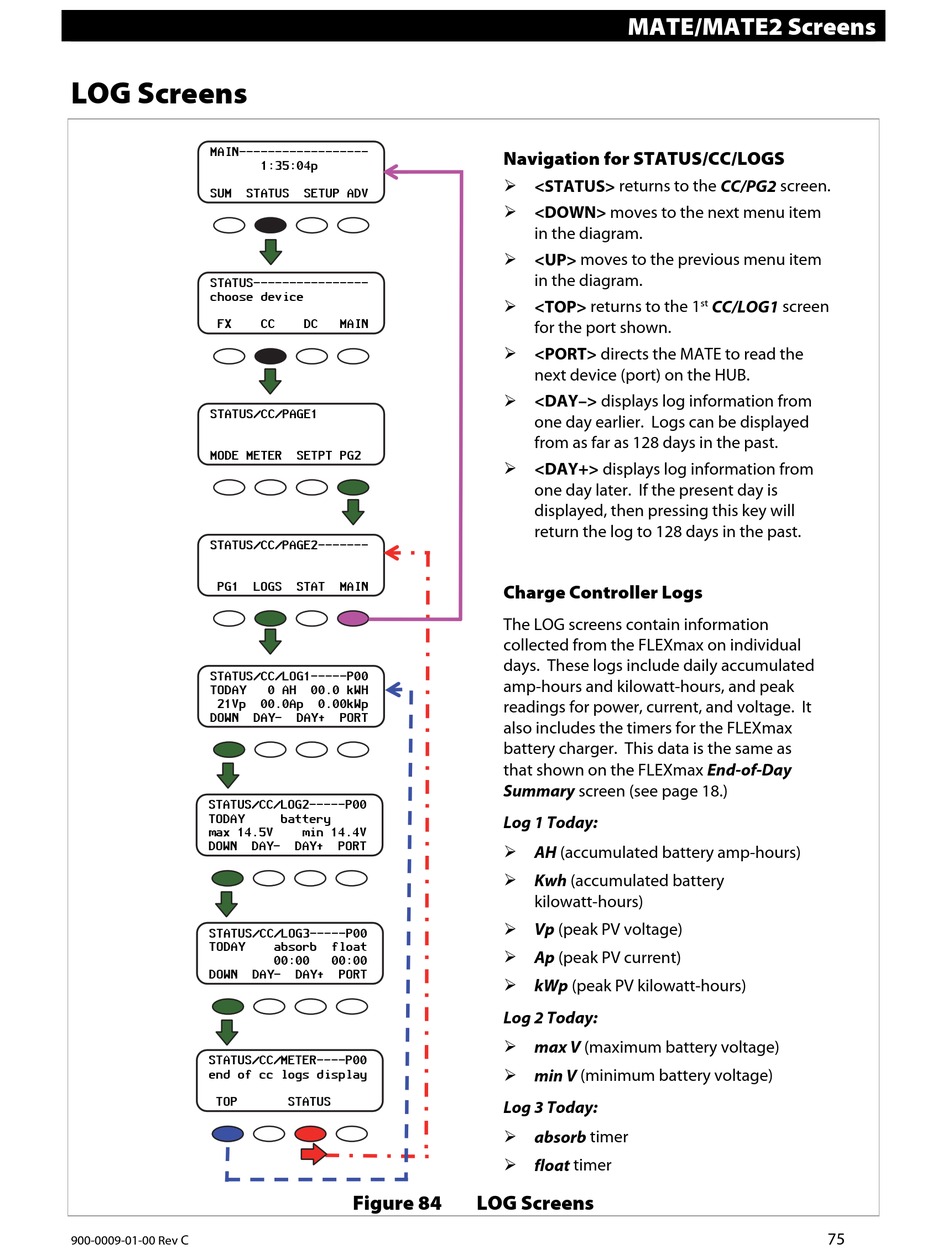

Figure 84
MATE/MATE2 Screens
Navigation for STATUS/CC/LOGS
 <STATUS> returns to the CC/PG2 screen.
 <DOWN> moves to the next menu item
in the diagram.
 <UP> moves to the previous menu item
in the diagram.
 <TOP> returns to the 1
for the port shown.
 <PORT> directs the MATE to read the
next device (port) on the HUB.
 <DAY–> displays log information from
one day earlier. Logs can be displayed
from as far as 128 days in the past.
 <DAY+> displays log information from
one day later. If the present day is
displayed, then pressing this key will
return the log to 128 days in the past.
Charge Controller Logs
The LOG screens contain information
collected from the FLEXmax on individual
days. These logs include daily accumulated
amp-hours and kilowatt-hours, and peak
readings for power, current, and voltage. It
also includes the timers for the FLEXmax
battery charger. This data is the same as
that shown on the FLEXmax End-of-Day
Summary screen (see page 18.)
Log 1 Today:
 AH (accumulated battery amp-hours)
 Kwh (accumulated battery
kilowatt-hours)
 Vp (peak PV voltage)
 Ap (peak PV current)
 kWp (peak PV kilowatt-hours)
Log 2 Today:
 max V (maximum battery voltage)
 min V (minimum battery voltage)
Log 3 Today:
 absorb timer
 float timer
LOG Screens
st
CC/LOG1 screen
