Mode Name
Function:
Low Battery
Disconnect
When the battery voltage falls below the
threshold disconnect voltage, the AUX output
activates. When the battery voltage rises above
the threshold reconnect voltage, the AUX
deactivates.
Purpose:
This mode is intended to operate a relay to turn
off loads and save battery capacity.
Allows an OutBack system display to control the
Remote
AUX output (see the system display manual
for details).

AUX MODE Screen Navigation

Main Menu
Charger
Aux
EQ Misc Advanced
Logging

EXIT
Charger Aux
EQ Misc Advanced
Logging

EXIT
AUX MODE Screen
AUX MODE
Night Light
Output: Off
EXIT NEXT SET
NOTE: If more than 10 minutes have passed since
any activity, the PASSWORD screen becomes active,
requiring the user to reenter the password (141).
C
900-0009-01-00 Rev
Table 2 Aux Mode Functions
Function/Purpose
To access the AUX MODE screen and adjust the settings:
Light
1.
Stats

GO
2.
3.
4.
Light
Stats

GO
5.
6.
7.

Off
MODE
AUX MODE

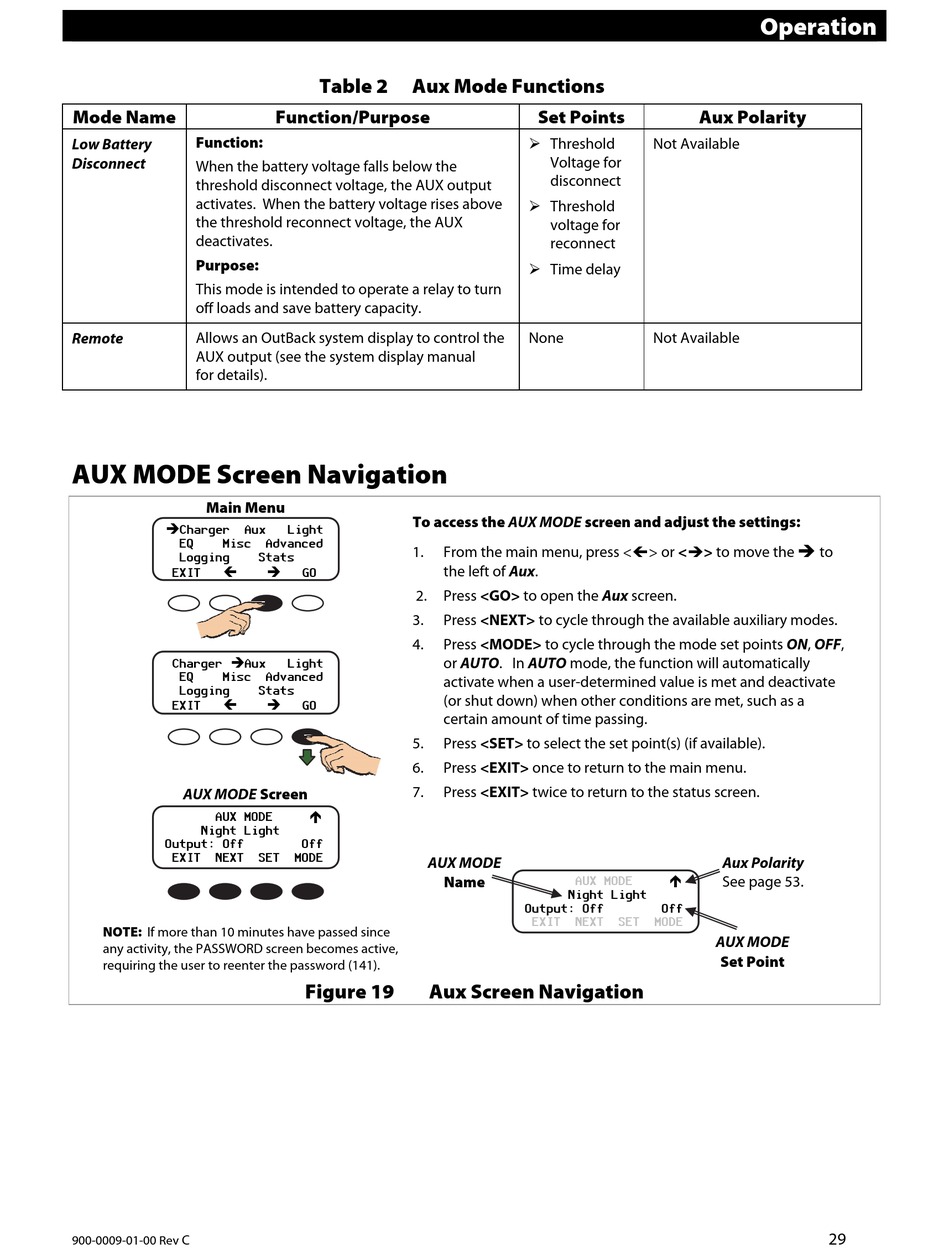

Figure 19 Aux Screen Navigation
Set Points
 Threshold
Voltage for
disconnect
 Threshold
voltage for
reconnect
 Time delay
None
From the main menu, press <> or <> to move the
the left of Aux.
Press <GO> to open the Aux screen.
Press <NEXT> to cycle through the available auxiliary modes.
Press <MODE> to cycle through the mode set points ON, OFF,
or AUTO. In AUTO mode, the function will automatically
activate when a user-determined value is met and deactivate
(or shut down) when other conditions are met, such as a
certain amount of time passing.
Press <SET> to select the set point(s) (if available).
Press <EXIT> once to return to the main menu.
Press <EXIT> twice to return to the status screen.
Name AUX MODE
Night Light
Output: Off
EXIT NEXT SET
Operation
Aux Polarity
Not Available
Not Available

to
Aux Polarity

See page 53.
Off
MODE
AUX MODE
Set Point
29
