Operation

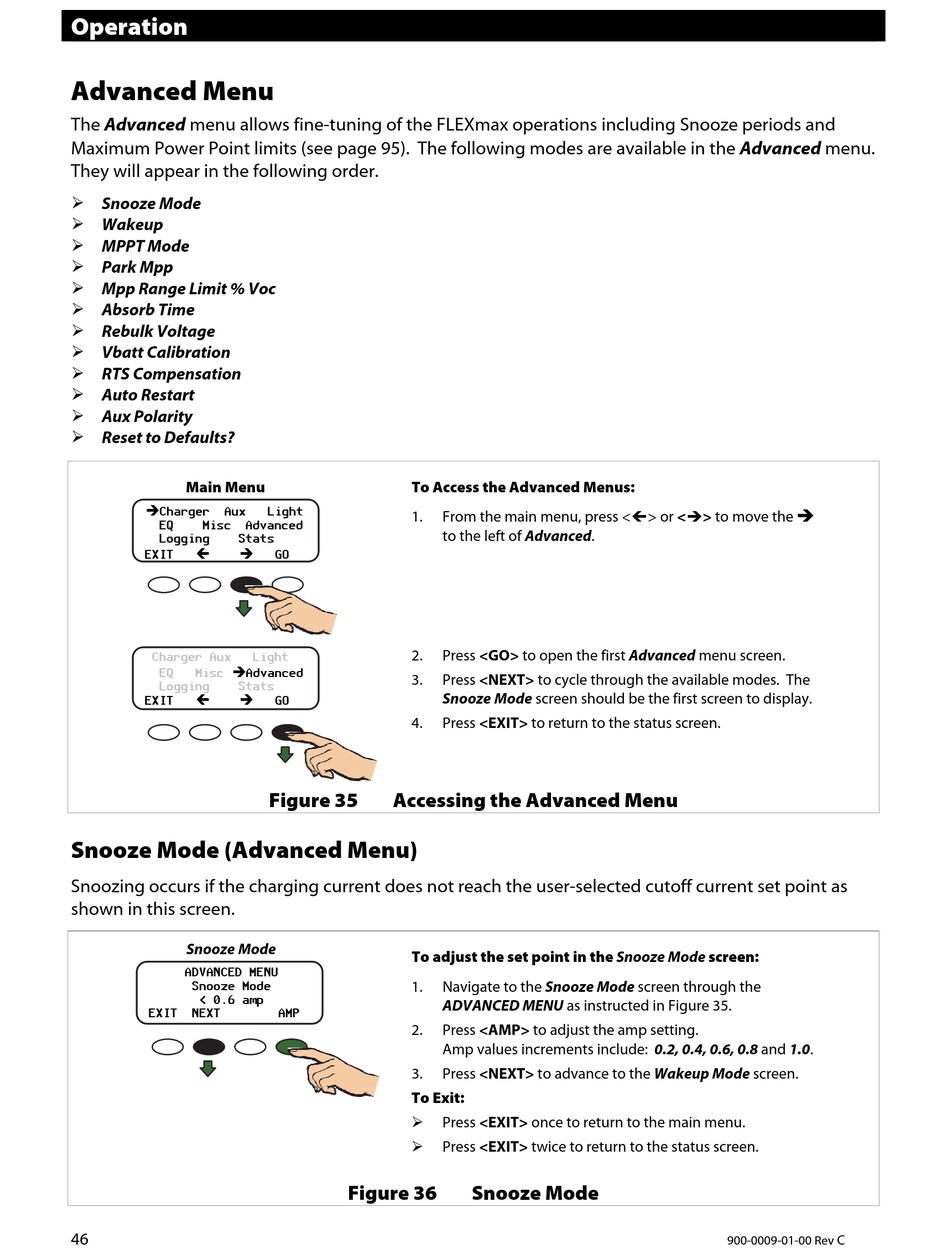

Advanced Menu

The Advanced menu allows fine-tuning of the FLEXmax operations including Snooze periods and
Maximum Power Point limits (see page 95). The following modes are available in the Advanced menu.
They will appear in the following order.
 Snooze Mode
 Wakeup
 MPPT Mode
 Park Mpp
 Mpp Range Limit % Voc
 Absorb Time
 Rebulk Voltage
 Vbatt Calibration
 RTS Compensation
 Auto Restart
 Aux Polarity
 Reset to Defaults?
Main Menu
Charger
Aux
EQ Misc Advanced
Logging Stats
 
EXIT
Charger Aux
Advanced
EQ Misc
Logging Stats
 
EXIT

Snooze Mode (Advanced Menu)

Snoozing occurs if the charging current does not reach the user-selected cutoff current set point as
shown in this screen.
Snooze Mode
ADVANCED MENU
Snooze Mode
< 0.6 amp
EXIT NEXT
46
To Access the Advanced Menus:
Light
1.
GO
2.
Light
3.
GO
4.
Figure 35 Accessing the Advanced Menu
To adjust the set point in the Snooze Mode screen:
1.
AMP
2.
3.
To Exit:


Figure 36
From the main menu, press <> or <> to move the
to the left of Advanced.
Press <GO> to open the first Advanced menu screen.
Press <NEXT> to cycle through the available modes. The
Snooze Mode screen should be the first screen to display.
Press <EXIT> to return to the status screen.
Navigate to the Snooze Mode screen through the
ADVANCED MENU as instructed in Figure 35.
Press <AMP> to adjust the amp setting.
Amp values increments include: 0.2, 0.4, 0.6, 0.8 and 1.0.
Press <NEXT> to advance to the Wakeup Mode screen.
Press <EXIT> once to return to the main menu.
Press <EXIT> twice to return to the status screen.
Snooze Mode

