Diversion:Solid St (AUX Mode)
Main Menu
Charger
Aux
EQ Misc Advanced
Logging Stats
 
EXIT
Aux
Charger
EQ Misc Advanced
Logging Stats
 
EXIT
AUX MODE
Diversion:Solid St
Output: Off
EXIT NEXT SET
<NEXT> proceeds to the
next AUX MODE screen.
Figure 26
C
900-0009-01-00 Rev
Light
GO
Light
GO
To set the mode for Diversion:Solid St:
From the main menu, press <> or <> to move the  to the
1.
left of Aux.
2. Press <GO> to open the AUX MODE screen.
3. Press <NEXT> until the Diversion:Solid St mode is displayed in
the AUX MODE screen.

4. Press <MODE> to cycle through ON, OFF, or AUTO.
Off

MODE



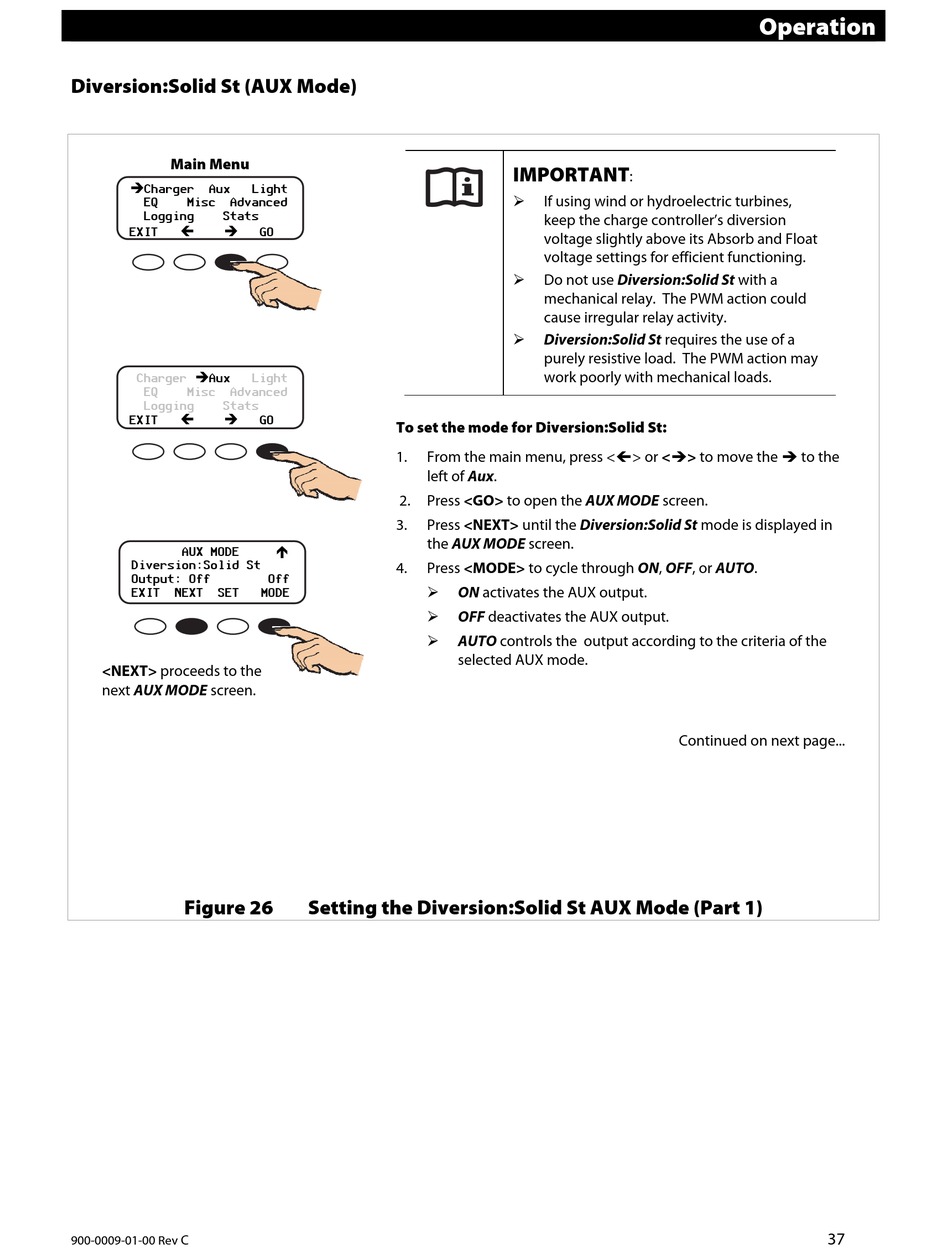

Setting the Diversion:Solid St AUX Mode (Part 1)
IMPORTANT
:

If using wind or hydroelectric turbines,
keep the charge controller's diversion
voltage slightly above its Absorb and Float
voltage settings for efficient functioning.

Do not use Diversion:Solid St with a
mechanical relay. The PWM action could
cause irregular relay activity.

Diversion:Solid St requires the use of a
purely resistive load. The PWM action may
work poorly with mechanical loads.
ON activates the AUX output.
OFF deactivates the AUX output.
AUTO controls the output according to the criteria of the
selected AUX mode.
Operation
Continued on next page...
