For example:
 During cold weather, a battery often requires a higher charging voltage. Some inverters might not
accommodate these higher voltages and can shut down during charging, cutting off power to their loads.
 During hot weather, limiting the RTS Compensation values assures the voltage stays high enough to charge
the batteries instead of dropping too low in reaction to a higher ambient temperature.
 Battery manufacturer specifications indicate not to exceed a certain voltage or battery damage could occur.
In all cases, the batteries should be monitored to ensure they are being charged according to the
battery manufacturer's recommendations.
RTS Compensation has two options available.
 WIDE allows the RTS full control over charging. This option uses the default values for the RTS.

LIMIT sets the minimum and maximum voltages for the RTS.
Pressing the soft key below each option switches between the two options. When the LIMIT option is
visible, a <SET> soft key is available to advance to a screen that allows the user to adjust the settings.

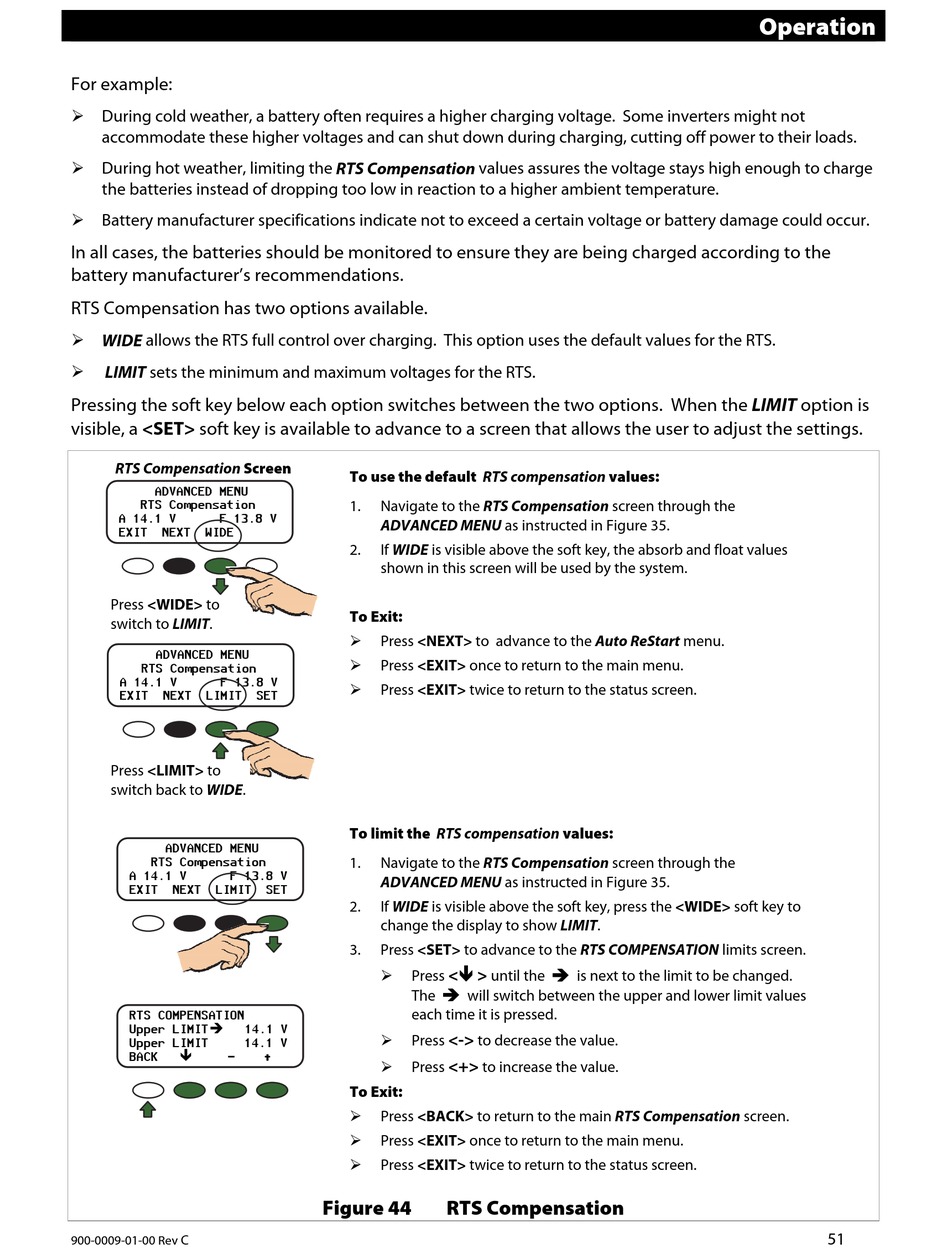

RTS Compensation Screen
ADVANCED MENU
RTS Compensation
A 14.1 V F 13.8 V
EXIT NEXT WIDE
Press <WIDE> to
switch to LIMIT.
ADVANCED MENU
RTS Compensation
A 14.1 V F 13.8 V
EXIT NEXT LIMIT SET
Press <LIMIT> to
switch back to WIDE.
ADVANCED MENU
RTS Compensation
A 14.1 V F 13.8 V
EXIT NEXT LIMIT SET
RTS COMPENSATION
Upper LIMIT 14.1 V
Upper LIMIT 14.1 V

BACK -
C
900-0009-01-00 Rev
To use the default RTS compensation values:
1. Navigate to the RTS Compensation screen through the
ADVANCED MENU as instructed in Figure 35.
2. If WIDE is visible above the soft key, the absorb and float values
shown in this screen will be used by the system.
To Exit:

Press <NEXT> to advance to the Auto ReStart menu.

Press <EXIT> once to return to the main menu.

Press <EXIT> twice to return to the status screen.
To limit the RTS compensation values:
1. Navigate to the RTS Compensation screen through the
ADVANCED MENU as instructed in Figure 35.
2. If WIDE is visible above the soft key, press the <WIDE> soft key to
change the display to show LIMIT.
3. Press <SET> to advance to the RTS COMPENSATION limits screen.

Press

The
each time it is pressed.

Press
+

Press
To Exit:

Press <BACK> to return to the main RTS Compensation screen.

Press <EXIT> once to return to the main menu.

Press <EXIT> twice to return to the status screen.
Figure 44

< >
until the is next to the limit to be changed.
will switch between the upper and lower limit values
<->
to decrease the value.
<+>
to increase the value.
RTS Compensation
Operation
