Stats

The STATS screen in the main menu displays additional voltage and time information. In a stand-alone FLEXmax
controller — one that is not connected to a system display — Sunrise shows how long ago the FLEXmax woke
up for the first time each day and when the daily and total logged values were updated and cleared. If the
FLEXmax is connected to a system display, the logging occurs at midnight.
Main Menu
 Charger Aux Light
EQ Misc Advanced
Logging Stats
 
EXIT
Charger Aux
EQ Misc Advanced
 Stats
Logging
 
EXIT
Max Bat Voc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
C
900-0009-01-00 Rev
To view the STATS screen:
1.
GO
2.
Light
GO
Max Bat Voc MaxVoc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
Max Bat Voc MaxVoc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
Max Bat Voc MaxVoc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
Max Bat Voc MaxVoc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
Max Bat Voc MaxVoc
14.9 036.6 133.0
MaxWatt 0000 Sunrise
EXIT NEXT 01:30:33
MaxVoc
Press <NEXT> to view the second STATS screen.

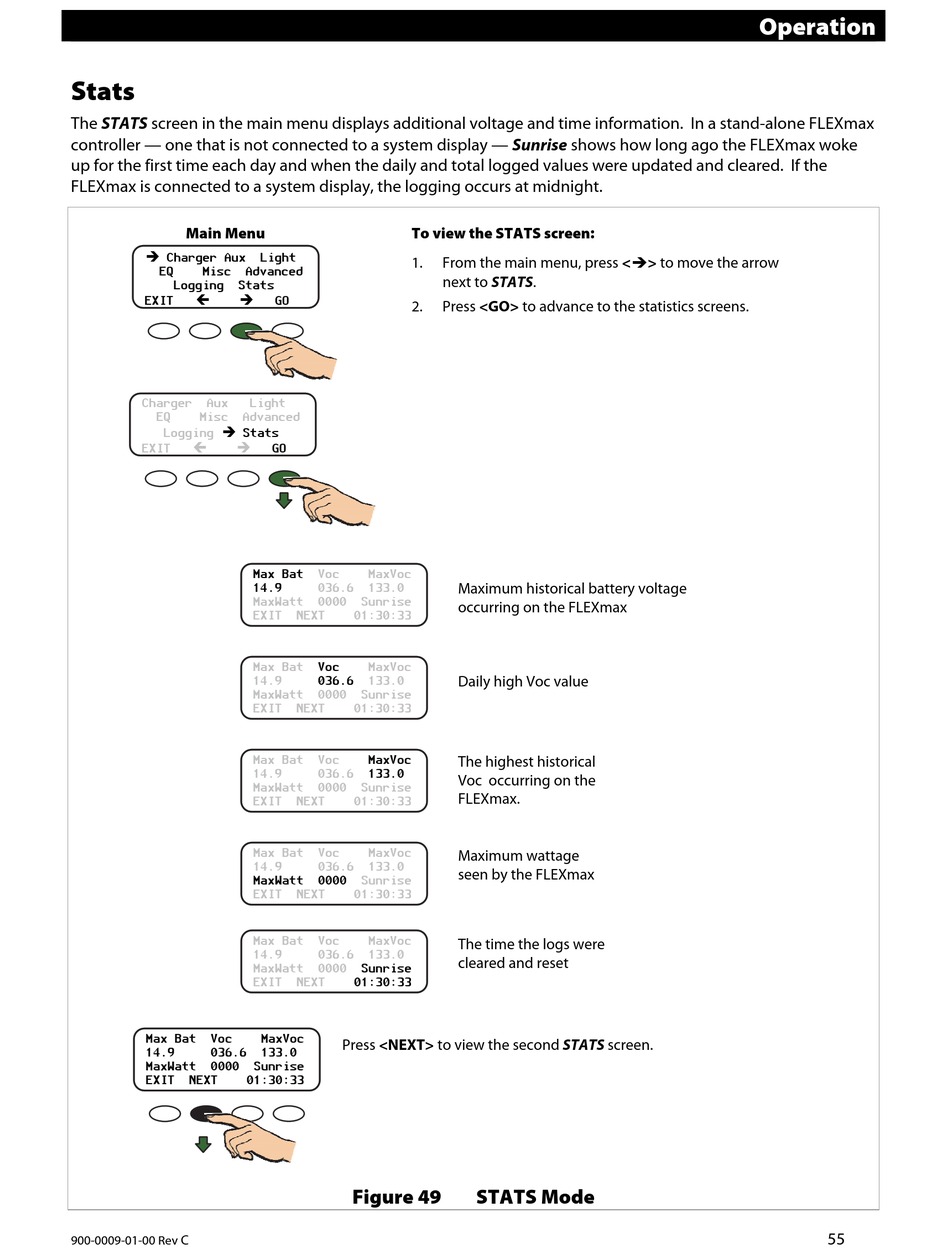

Figure 49
From the main menu, press <> to move the arrow
next to STATS.
Press <GO> to advance to the statistics screens.
Maximum historical battery voltage
occurring on the FLEXmax
Daily high Voc value
The highest historical
Voc occurring on the
FLEXmax.
Maximum wattage
seen by the FLEXmax
The time the logs were
cleared and reset
STATS Mode
Operation
