Introduction
FLEXmax 80

Soft Keys

Four "soft" keys are located directly below the LCD. The functions of the soft keys will vary depending
on the location of the user within the menu structure. Some soft keys will be used for navigation.
Some soft keys will be used for programming.
Soft key functions are identified by text in the LCD screen directly above the key (e.g., EXIT). In this
manual, soft keys will be identified by brackets (for example, <EXIT>). Not every soft key may be used
in some screens.
Soft Key Buttons
6
LCD Screen
Soft Keys

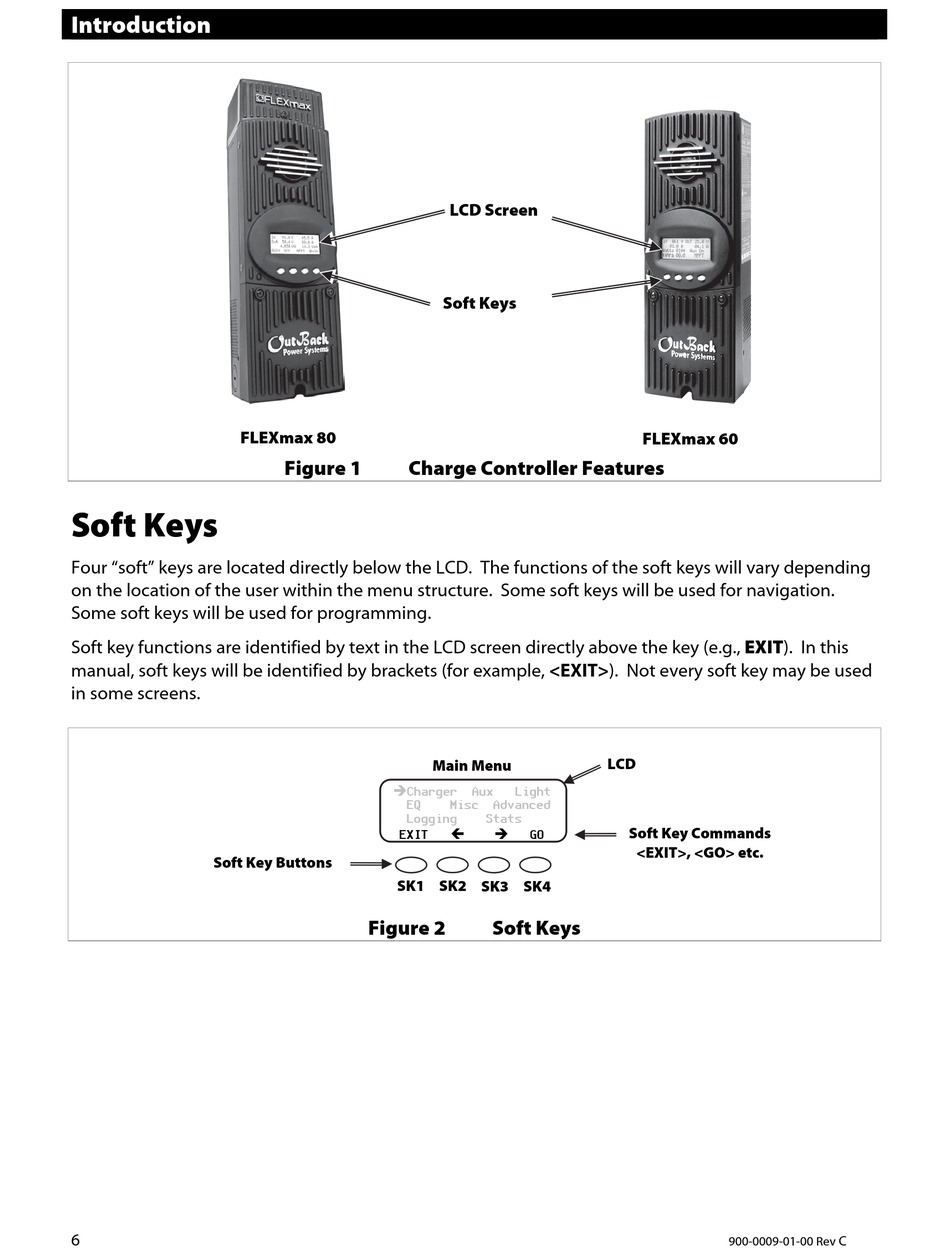

Figure 1 Charge Controller Features
Main Menu
Charger
EQ Misc Advanced
Logging

EXIT
SK1 SK2 SK3 SK4
Figure 2
FLEXmax 60
LCD
Aux Light
Stats

Soft Key Commands
GO
<EXIT>, <GO> etc.
Soft Keys
C
900-0009-01-00 Rev
