Main Menu
Charger
Aux
EQ Misc Advanced
Logging Stats
 
EXIT
ADV SETUP Screen
Charger Aux
Advanced
EQ Misc
Logging Stats
 
EXIT
ADVANCED MENU
Snooze Mode
< 0.6 amp
EXIT NEXT
Mpp Range Limit % Voc
ADVANCED MENU
Mpp Range Limit %VOC
Min
EXIT NEXT 1/2
MPPT Mode (Auto Track)
ADVANCED MENU
MPPT Mode
Auto Track
EXIT NEXT nonGT MODE
U-pick% (Voc) MPPT
ADVANCED MENU
Park Mpp
Watts 0251 77 % Voc
EXIT NEXT -%

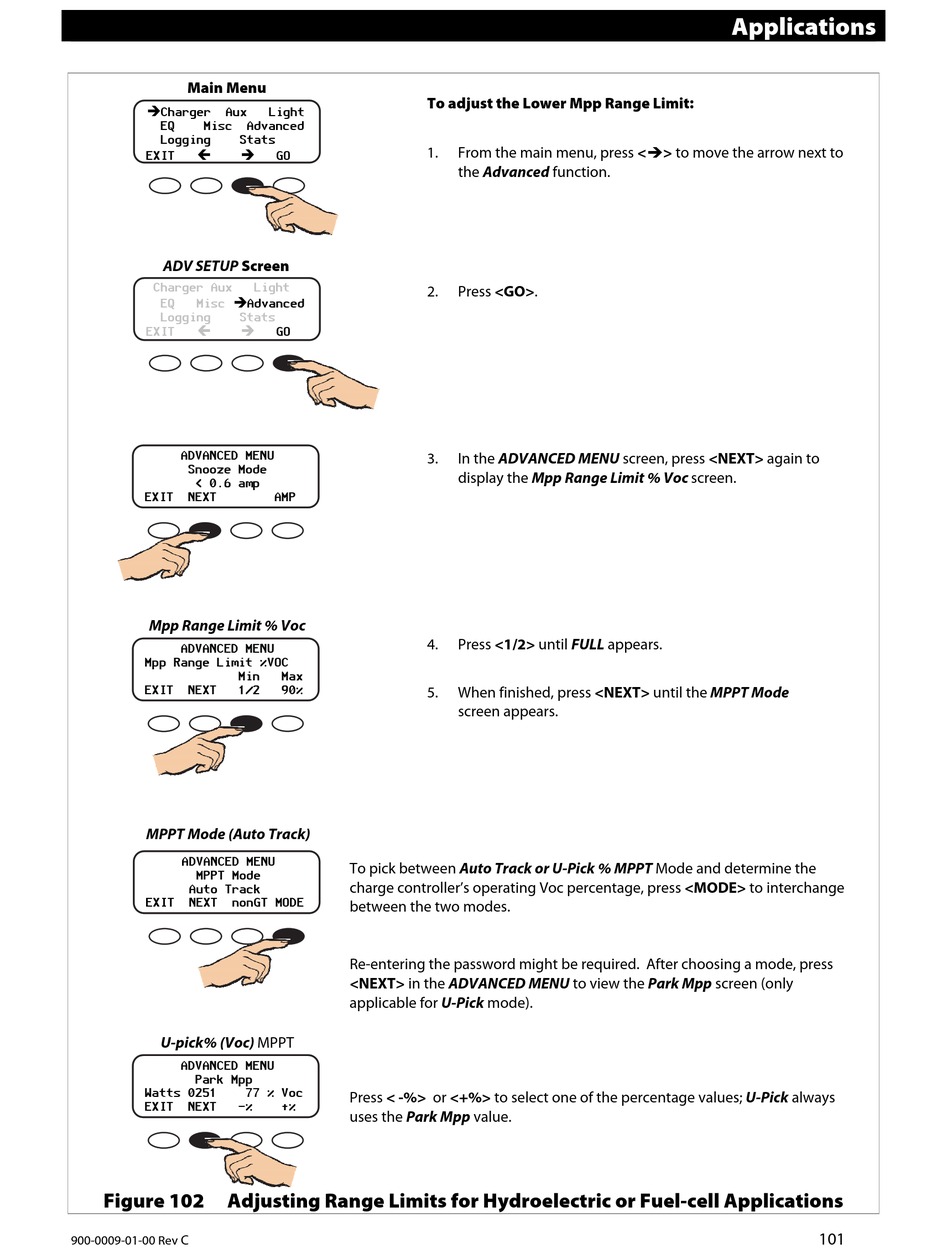

Figure 102 Adjusting Range Limits for Hydroelectric or Fuel-cell Applications
C
900-0009-01-00 Rev
To adjust the Lower Mpp Range Limit:
Light
1.
GO
Light
2.
GO
3.
AMP
4.
Max
90%
5.
To pick between Auto Track or U-Pick % MPPT Mode and determine the
charge controller's operating Voc percentage, press <MODE> to interchange
between the two modes.
Re-entering the password might be required. After choosing a mode, press
<NEXT> in the ADVANCED MENU to view the Park Mpp screen (only
applicable for U-Pick mode).
Press < -%> or <+%> to select one of the percentage values; U-Pick always
+%
uses the Park Mpp value.
From the main menu, press <> to move the arrow next to
the Advanced function.
Press <GO>.
In the ADVANCED MENU screen, press <NEXT> again to
display the Mpp Range Limit % Voc screen.
Press <1/2> until FULL appears.
When finished, press <NEXT> until the MPPT Mode
screen appears.
