Navigating the End-of-Day Screens and Data Logging

Status Screen
In 11.6V
Out 13.8V
0.000 kW 0.0 kWH
AUX: OFF
Pressing the second soft key
(SK2) opens the end-of-day
summary menu/logging.
End-of-Day Screen
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V
MIN 14.6 V
End-of-Day Screen
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V
MIN 14.6 V
Press SK3 to open the previous
day's summary screen.
Continuing to press this soft key
will cycle back through the last
128 daily summary screens.
End-of-Day Screen
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V
MIN 14.6 V
Pressing SK4 will bring up
the summary for the 128
day back.

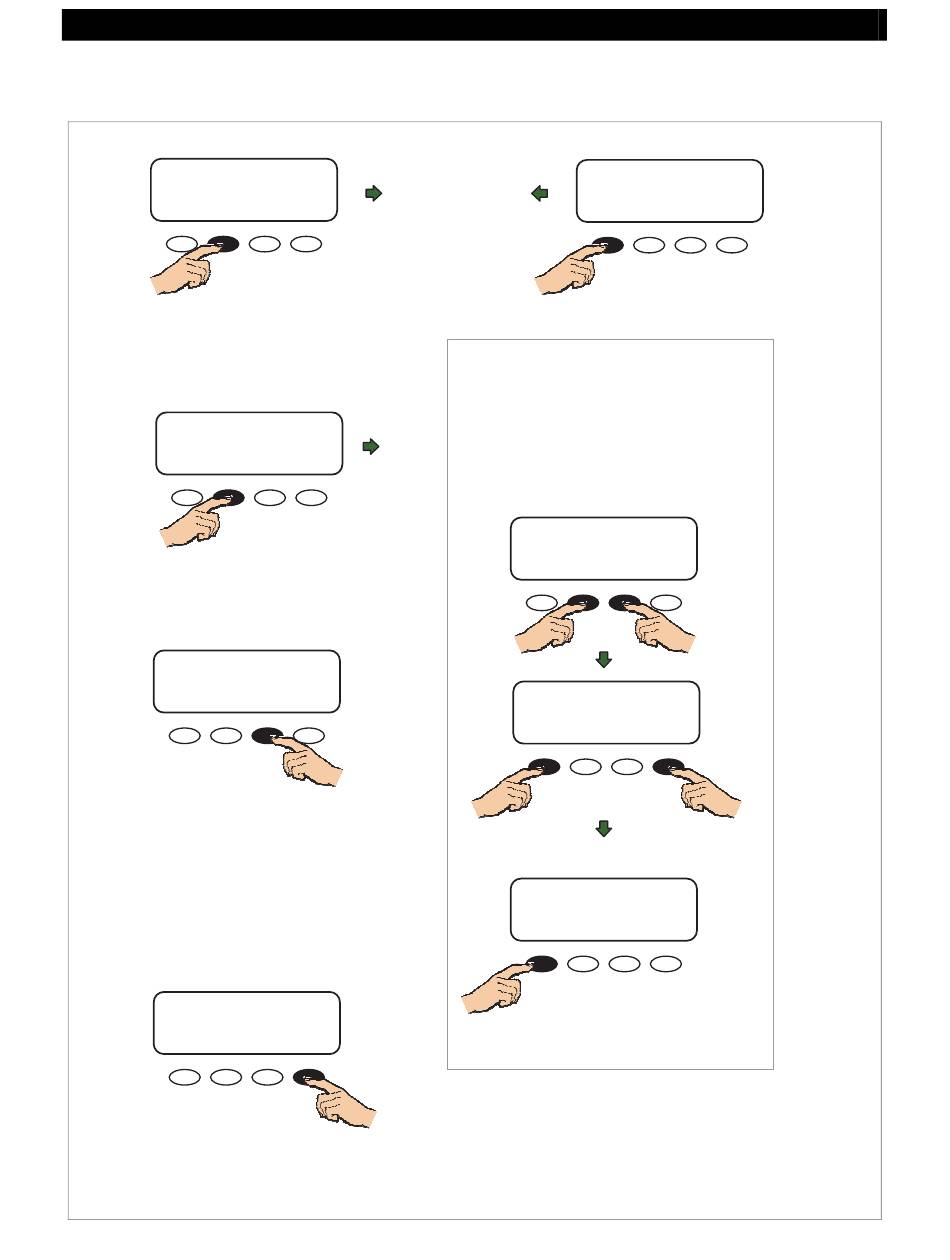

Figure 13
C
900-0009-01-00 Rev
0.0 A
0.0 A
Sleeping
00.0kWH
ABS 01:00
FLT 00:00
Press SK2 to open the
CLEAR LOG screen.
00.0kWH
ABS 01:00
FLT 00:00
00.0kWH
ABS 01:00
FLT 00:00
th
Navigating the End-of-Day Summary Screen
End-of-Day Screen
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V
MIN 14.6 V
Press SK1 to return to the
status screen.
CLEAR LOG Screen
The daily statistics or the accumulated
statistics are stored on the charge controller's
static memory. A new log "day" begins when
the controller enters Wakeup. (See page 24.)
Logs accumulate for up to 128 days. See
pages 75 and page 76 for details.
CLEAR LOG
BACK TOTL DAILY
OR
Are you sure?
NO
OR
End-of-Day Screen
Today 000Ah 00.0kWH
011Vp 00.0Ap 0.00kWp
MAX 14.7 V ABS 01:00
MIN 14.6 V FLT 00:00
Press SK1 to return to the
status screen.
This data log can be downloaded to an SD
card. The MATE3 system display is required
for this download. See page 69 for details on
this feature.
Operation
00.0kWH
ABS 01:00
FLT 00:00
YES
