Operation

Logging

The Logging screen in the main menu enables the user to clear the daily and cumulative logs if
necessary. Logs can be downloaded to an SD card if a MATE3 is installed. See page 69 for details.
The FLEXmax daily log begins when the controller enters Wakeup. See page 24.
IMPORTANT:
If two or more charge controllers are used in the same system and are started up or
cleared on different days, their numeric dates will not be the same. This can lead to
some misunderstandings when looking back and comparing data between the two or
more units. A user looking back at day 12 on both units would find very different
results.
Main Menu
 Charger Aux Light
EQ Misc Advanced
Logging Stats
 
EXIT
Charger Aux
EQ Misc Advanced
 Logging
Stats
 
EXIT
End-of-Day Summary
Screen
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V ABS 01:00
MIN 14.6 V FLT 00:00
CLEAR LOG
BACK TOTL DAILY
Are you Sure?
NO
54
To clear the logs:
1.
GO
2.
3.
Light
4.
GO
5.
6.
00.0kWH
YES

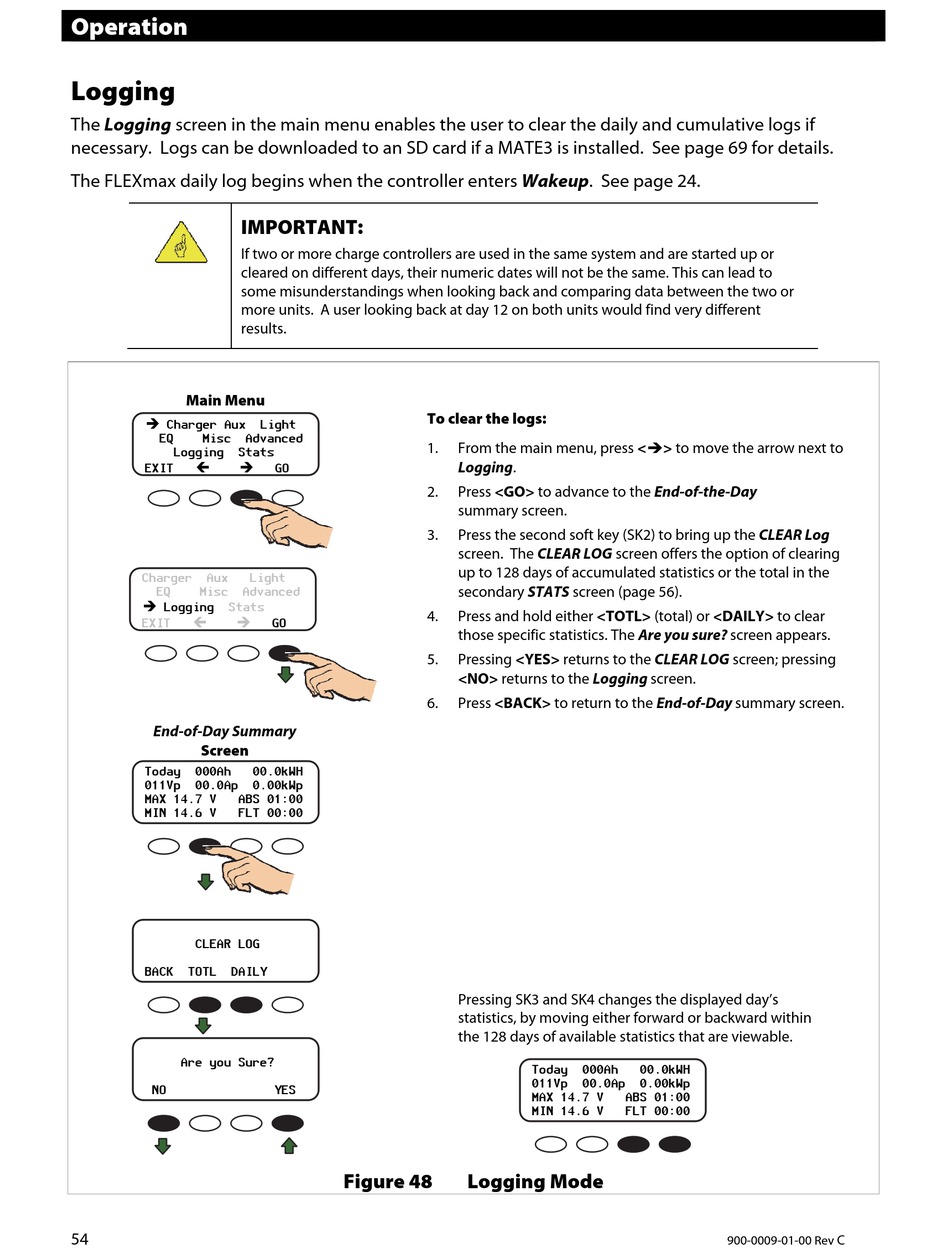

Figure 48
From the main menu, press <> to move the arrow next to
Logging.
Press <GO> to advance to the End-of-the-Day
summary screen.
Press the second soft key (SK2) to bring up the CLEAR Log
screen. The CLEAR LOG screen offers the option of clearing
up to 128 days of accumulated statistics or the total in the
secondary STATS screen (page 56).
Press and hold either <TOTL> (total) or <DAILY> to clear
those specific statistics. The Are you sure? screen appears.
Pressing <YES> returns to the CLEAR LOG screen; pressing
<NO> returns to the Logging screen.
Press <BACK> to return to the End-of-Day summary screen.
Pressing SK3 and SK4 changes the displayed day's
statistics, by moving either forward or backward within
the 128 days of available statistics that are viewable.
Today 000Ah
011Vp 00.0Ap 0.00kWp
MAX 14.7 V ABS 01:00
MIN 14.6 V FLT 00:00
Logging Mode
00.0kWH
