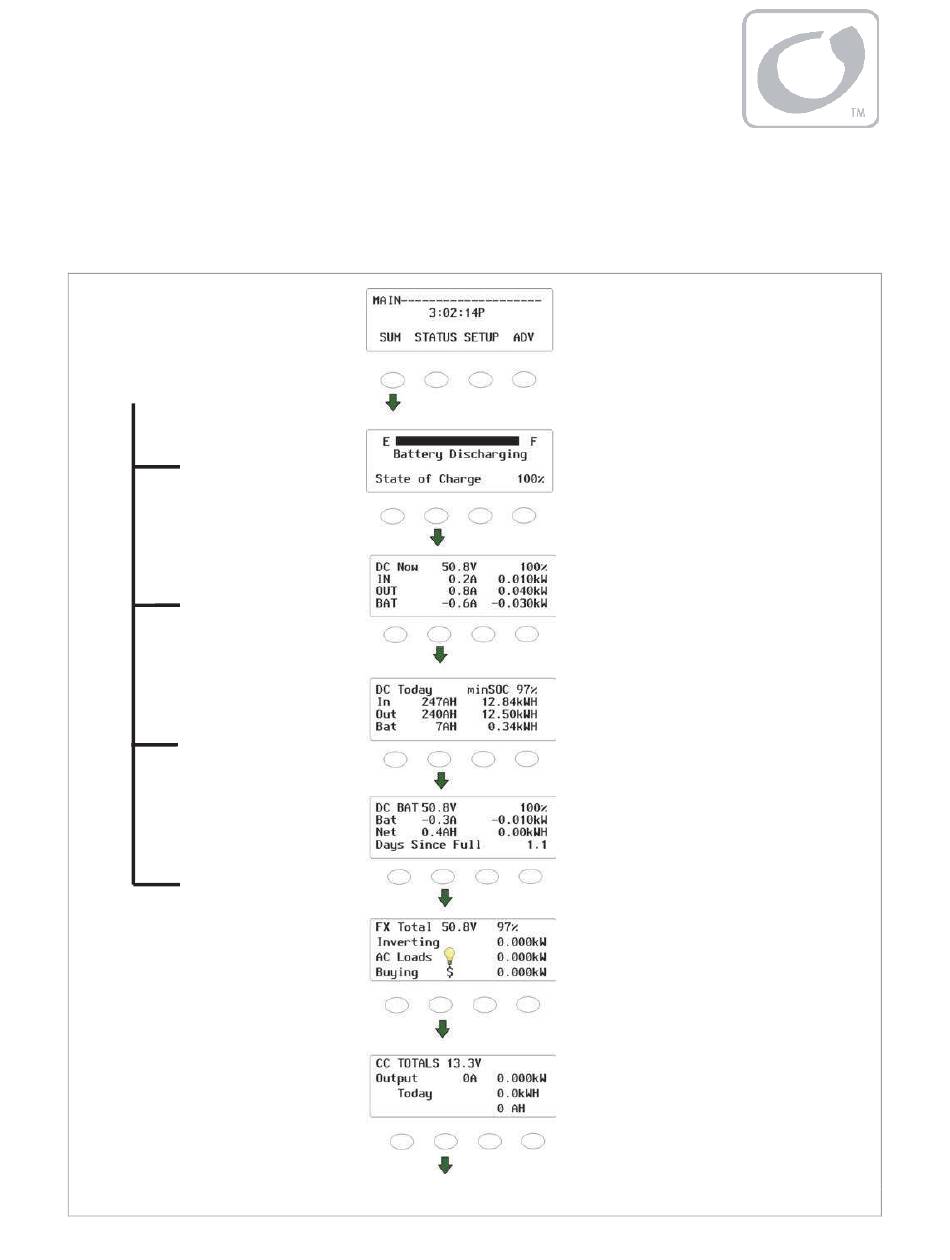

Summary Screens
If a FLEXnet DC is
installed in the system,
the following summary
screens will be available.
FLEXnet DC
Summary Screen #1
FLEXnet DC
Summary Screen #2
FLEXnet DC
Summary Screen #3
FLEXnet DC
Summary Screen #4
(If the FNDC is not installed, this
st
will be the 1
Summary Screen.)
C
900-0009-01-00 Rev
MATE/MATE2 Screens
Figure 80
Summary Screens
FX Inverter/Charger
Summary Screen
FLEXmax Charge Controller
Summary Screen
71
