LOG Screens

MAIN------------------
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/PAGE2-------
PG1 LOGS STAT
STATUS/CC/LOG1-----P00
TODAY
21Vp 00.0Ap 0.00kWp
DOWN DAY- DAY+
STATUS/CC/LOG2-----P00
TODAY
max 14.5V
DOWN DAY- DAY+
STATUS/CC/LOG3-----P00
TODAY
DOWN DAY- DAY+
STATUS/CC/METER----P00
end of cc logs display
TOP
900-0150-01-00 Rev A
1:35:04p
CC DC MAIN
MAIN
0 AH 00.0 kWH
PORT
battery
min 14.4V
PORT
absorb float
00:00 00:00
PORT
STATUS

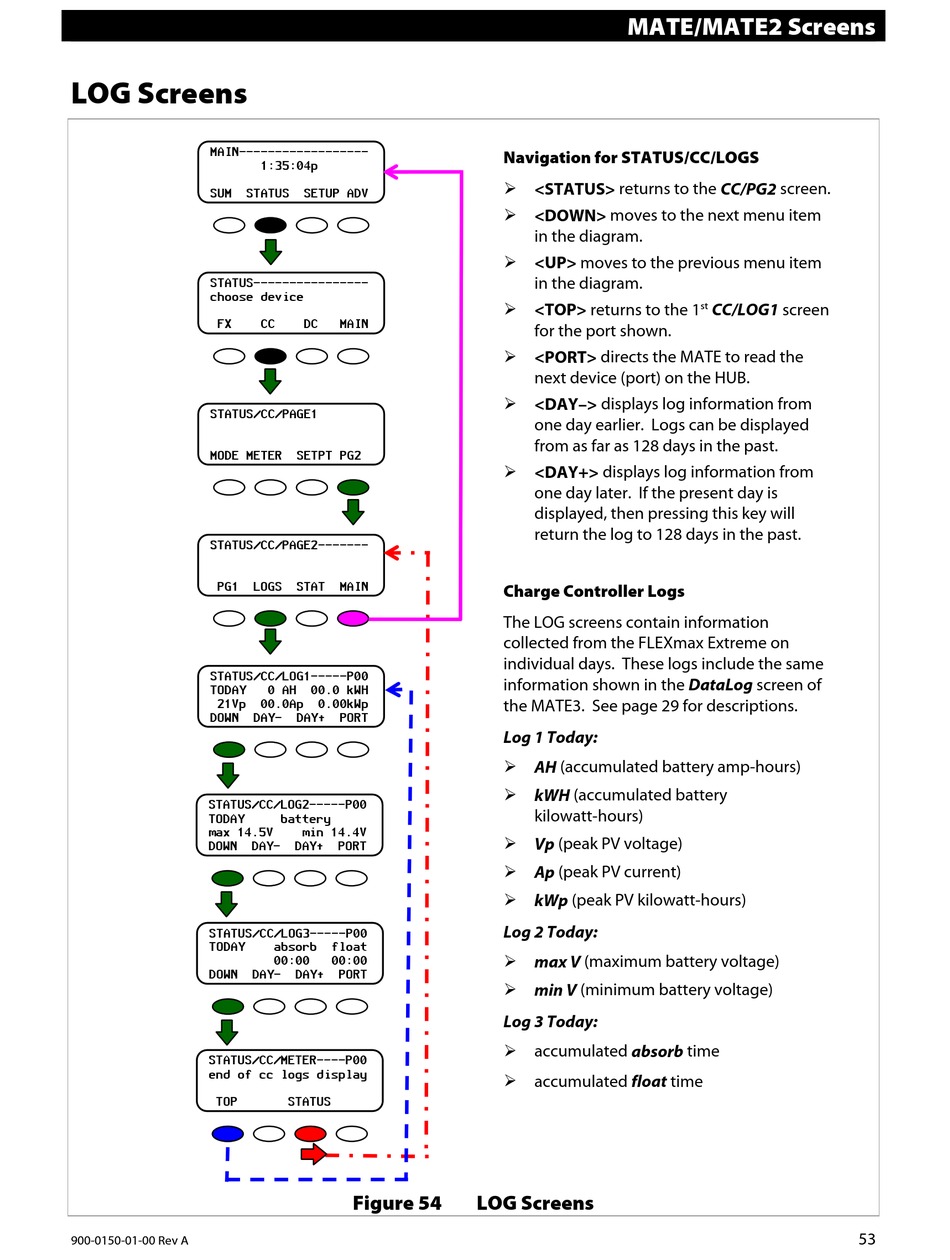

Figure 54
