MATE/MATE2 Screens

CHGR Menu

78

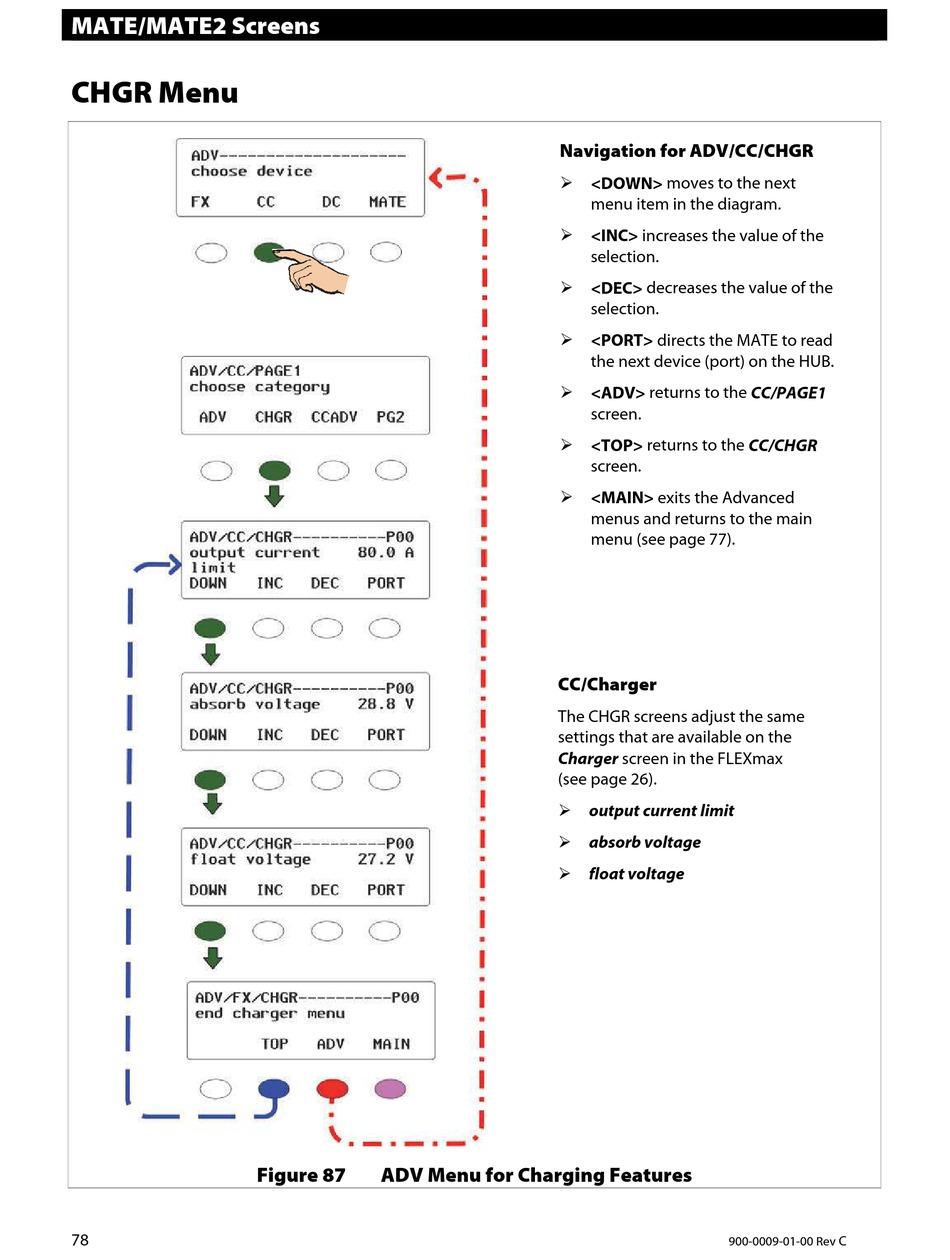

Figure 87 ADV Menu for Charging Features
Navigation for ADV/CC/CHGR
 <DOWN> moves to the next
menu item in the diagram.
 <INC> increases the value of the
selection.
 <DEC> decreases the value of the
selection.
 <PORT> directs the MATE to read
the next device (port) on the HUB.
 <ADV> returns to the CC/PAGE1
screen.
 <TOP> returns to the CC/CHGR
screen.
 <MAIN> exits the Advanced
menus and returns to the main
menu (see page 77).
CC/Charger
The CHGR screens adjust the same
settings that are available on the
Charger screen in the FLEXmax
(see page 26).
 output current limit
 absorb voltage
 float voltage
