MATE/MATE2 Screens

Status Screens

To view the status screens of a FLEXmax 60 or FLEXmax 80 using a MATE, follow the illustration below.
Changes to FLEXmax settings can only be changed from the charge controller user interface; changes
can not be done when viewing these screens on a MATE.

MODE Screens

MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX CC DC
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/MODE-----P00
charger mode: Silent
DOWN STATUS PORT
STATUS/CC/MODE-----P00
aux relay mode:
Low Batt
DOWN UP TOP
STATUS/CC/MODE-----P00
aux relay state:
DOWN UP TOP
STATUS/CC/MODE-----P00
End of mode menu
UP TOP STATUS
72
Navigation for STATUS/CC/MODE
 <STATUS> returns to the STATUS/CC/PAGE1 screen.
 <DOWN> moves to the next menu item in the diagram.
 <UP> moves to the previous menu item in the diagram.
 <TOP> returns to the first CC/MODE screen for the port
shown.
MAIN  <PORT> directs the MATE to read the next device (port)
on the HUB.
Charge Controller Modes
The MODE screens describe the current operating mode for
the FLEXmax charger (see page 20) and AUX output
(see page 27).
The FLEXmax has over 25 modes. The MATE can only display five
status messages and may substitute one of the five for a FLEXmax
mode not on this list. Check the FLEXmax status screen to
determine its exact mode.
charger mode:
 Bulk
 Absorption
 Float
 Silent
 Equalization
PORT
aux relay mode:
 vent fan
 pv trigger
 error output
ON
 night light
 float
PORT
 diversion: relay
 diversion: solid st
 low batt(ery) disconnect
 remote
aux relay state:
This screen indicates if the AUX output is
 ON
 OFF

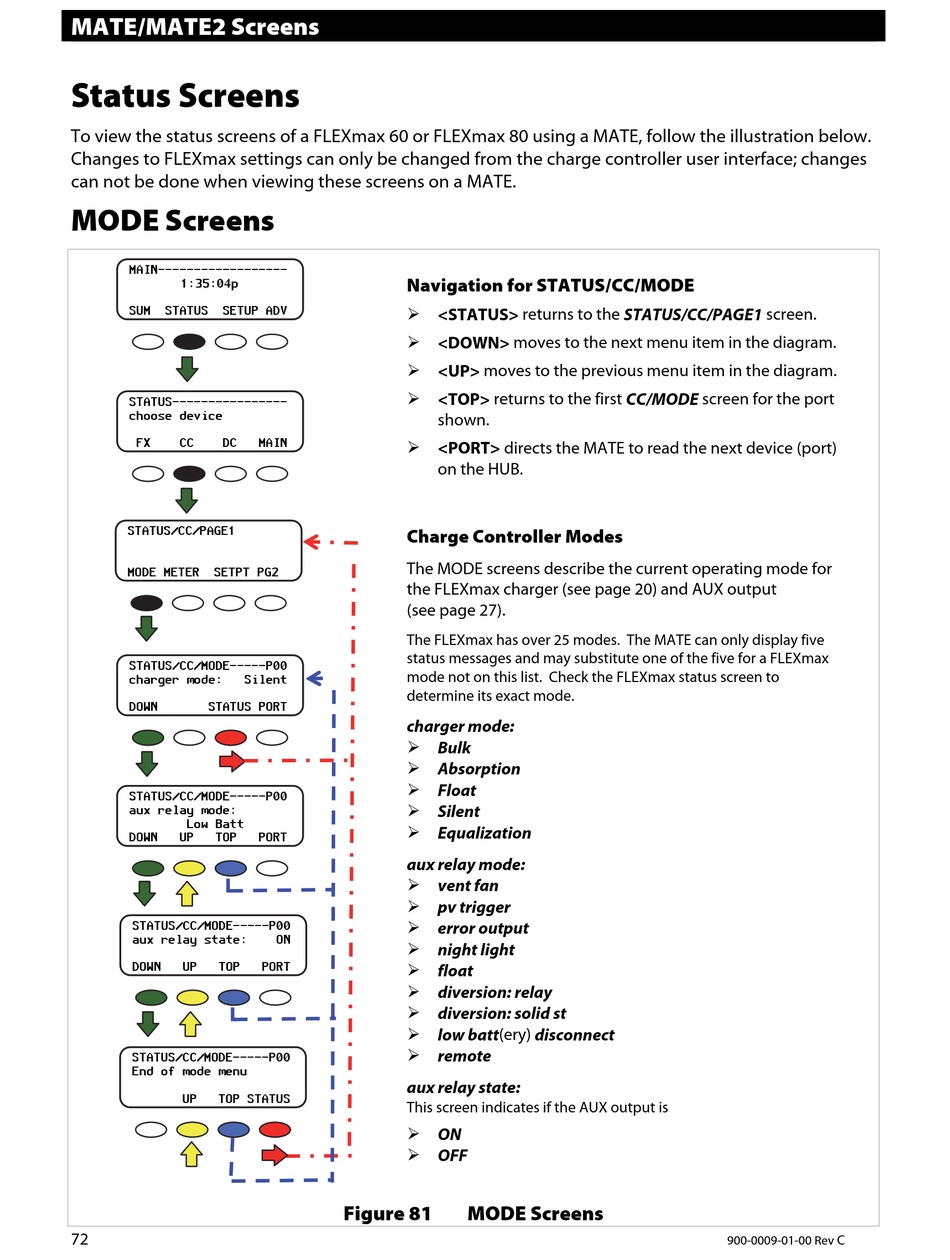

Figure 81 MODE Screens
