Meter Screens - Alpha Group OutBack Power FLEXmax Series Owner's Manual

METER Screens

MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX CC DC
STATUS/CC/PAGE1
MODE METER SETPT PG2
mode: Silent
in 11.2 vdc
out 14.4 vdc
DOWN STATUS PORT
STATUS/CC/METER----P00
charger
watts
DOWN UP TOP
STATUS/CC/METER----P00
charger 0.0 kwh
kwhrs
DOWN UP TOP
STATUS/CC/METER----P00
charger +000 Adc
amps DC
DOWN UP TOP
STATUS/CC/METER----P00
charger
amp hour
DOWN UP TOP
C
900-0009-01-00 Rev
Navigation for STATUS/CC/METER
 <STATUS> returns to the CC/PAGE1 screen.
 <DOWN> moves to the next menu item in the diagram.
 <UP> moves to the previous menu item in the diagram.
 <TOP> returns to the first CC/METER screen for the
port shown.
 <PORT> directs the MATE to read the next device (port)
MAIN
on the HUB.
Charge Controller METER Screens
The METER screens display readings for power, current, and
voltage handled by the FLEXmax. (See page 72 for more
information on the mode messages displayed here.)
mode/pv-in/bat-out:
 mode (charger )
P00
0 adc
0 adc
charger watts: Charger output to the battery (watts).
0 w charger kwhrs: Kilowatt-hours sent to the batteries today.
charger amps dc: Charger current to the battery (Adc).
PORT
battery voltage: Battery voltage (Vdc).
panel voltage: PV array voltage (Vdc).
CC Firmware revision: The level of the last revision or
programming upgrade to the FLEXmax.
PORT
STATUS/CC/METER----P00
battery
voltage
PORT
DOWN
STATUS/CC/METER----P00
0 ah
panel
voltage
PORT
DOWN

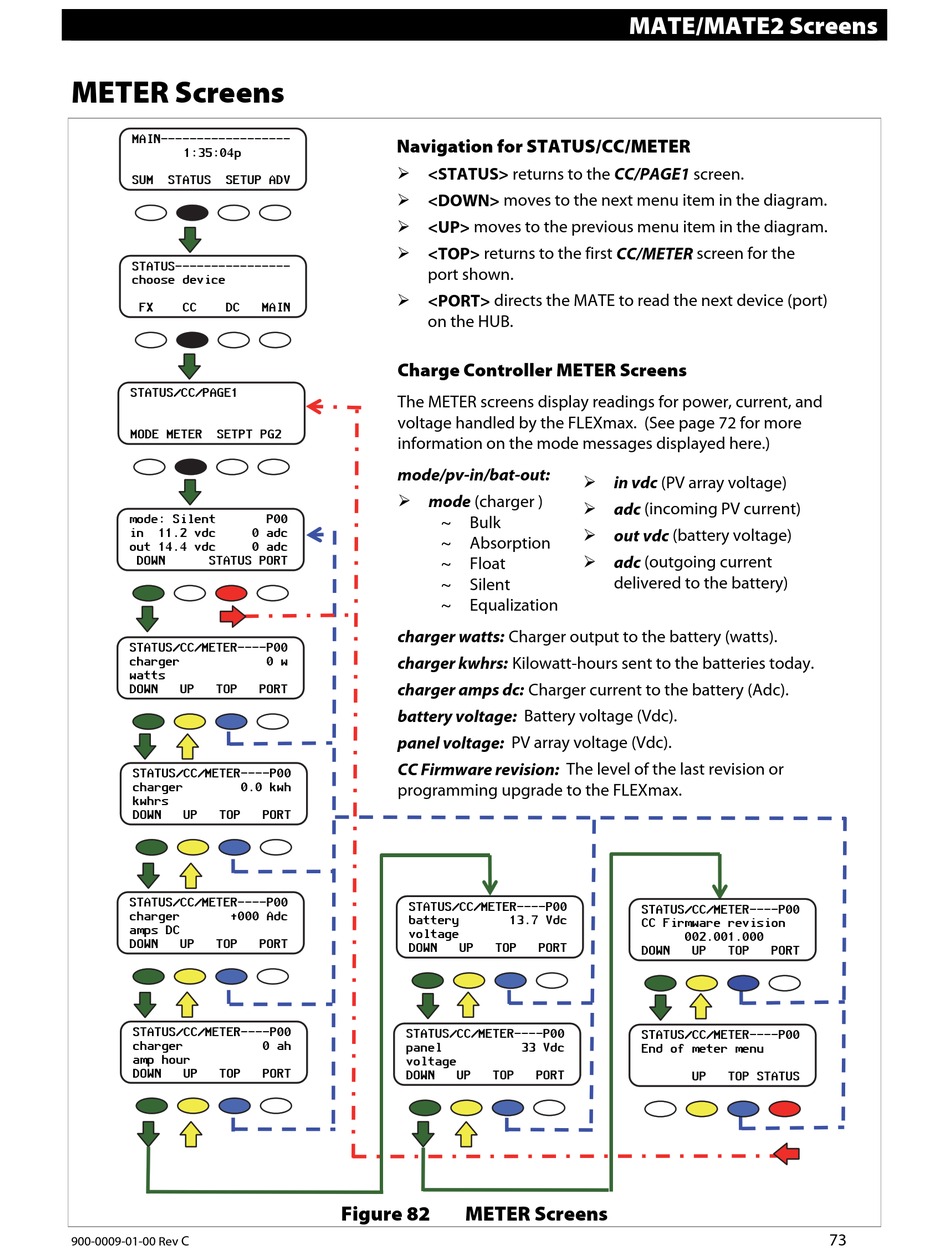

Figure 82
 in vdc (PV array voltage)
 adc (incoming PV current)
~ Bulk
 out vdc (battery voltage)
~ Absorption
 adc (outgoing current
~ Float
delivered to the battery)
~ Silent
~ Equalization
13.7 Vdc
UP TOP PORT
33 Vdc
UP TOP PORT
METER Screens
MATE/MATE2 Screens
STATUS/CC/METER----P00
CC Firmware revision
002.001.000
DOWN UP TOP PORT
STATUS/CC/METER----P00
End of meter menu
UP TOP STATUS
