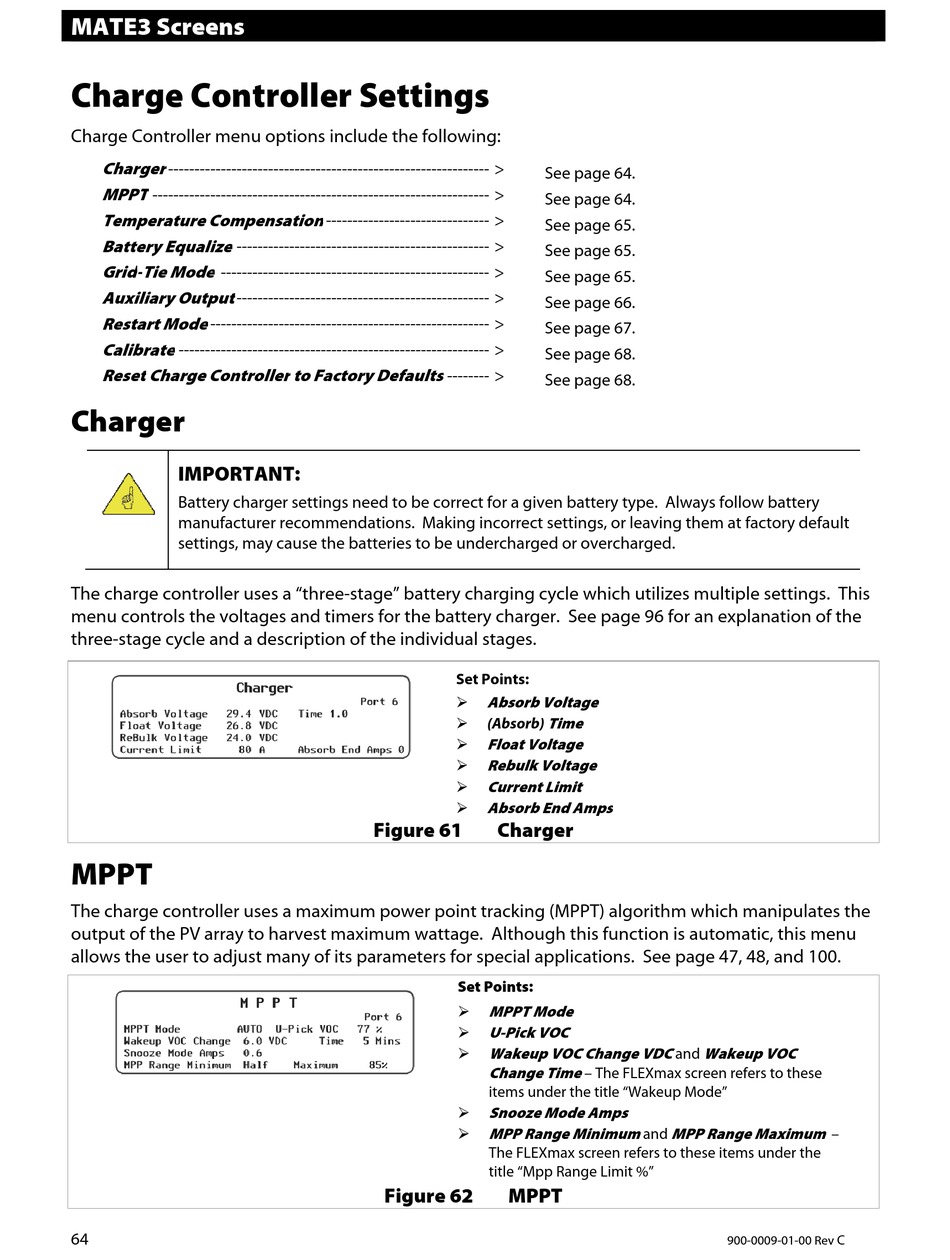

MATE3 Screens

Charge Controller Settings

Charge Controller menu options include the following:

Charger

------------------------------------------------------------- >

MPPT

---------------------------------------------------------------- >
Temperature Compensation
Battery Equalize
------------------------------------------------ >
Grid-Tie Mode
--------------------------------------------------- >
Auxiliary Output ------------------------------------------------ >
Restart Mode ----------------------------------------------------- >
Calibrate ----------------------------------------------------------- >
Reset Charge Controller to Factory Defaults
Charger
IMPORTANT:
Battery charger settings need to be correct for a given battery type. Always follow battery
manufacturer recommendations. Making incorrect settings, or leaving them at factory default
settings, may cause the batteries to be undercharged or overcharged.
The charge controller uses a "three-stage" battery charging cycle which utilizes multiple settings. This
menu controls the voltages and timers for the battery charger. See page 96 for an explanation of the
three-stage cycle and a description of the individual stages.
MPPT
The charge controller uses a maximum power point tracking (MPPT) algorithm which manipulates the
output of the PV array to harvest maximum wattage. Although this function is automatic, this menu
allows the user to adjust many of its parameters for special applications. See page 47, 48, and 100.
64
------------------------------- >
-------- >
Set Points:

Absorb Voltage

(Absorb)

Float Voltage

Rebulk Voltage

Current Limit

Absorb End Amps
Figure 61 Charger
Set Points:

MPPT Mode

U-Pick VOC

Wakeup VOC Change VDC
Change Time
items under the title "Wakeup Mode"

Snooze Mode Amps

MPP Range Minimum
The FLEXmax screen refers to these items under the
title "Mpp Range Limit %"
Figure 62
See page 64.
See page 64.
See page 65.
See page 65.
See page 65.
See page 66.
See page 67.
See page 68.
See page 68.
Time
and
– The FLEXmax screen refers to these
and MPP Range Maximum
MPPT
Wakeup VOC
–
C
