Operation

Float (AUX Mode)

This mode is intended to operate a load when the FLEXmax is in the Float stage of charging the
batteries.
Main Menu
Charger
Aux
EQ Misc Advanced
Logging Stats
 
EXIT
Aux
Charger
EQ Misc Advanced
Logging Stats
 
EXIT
AUX MODE
Float
Output: Off
EXIT NEXT SET
<NEXT> proceeds to the
next AUX MODE screen.
34
Light
To set the mode for Float:
1. From the main menu, press <> or <> to move the
GO

2. Press <GO> to open the AUX MODE screen.
3. Press <NEXT> until Float is displayed in the AUX MODE
screen.
4. Press <MODE> to cycle through the mode set points ON,
OFF, or AUTO.

Light

GO


To Exit:
Off

Press <EXIT> once to return to the main menu.
MODE

Press <EXIT> twice to return to the status screen.

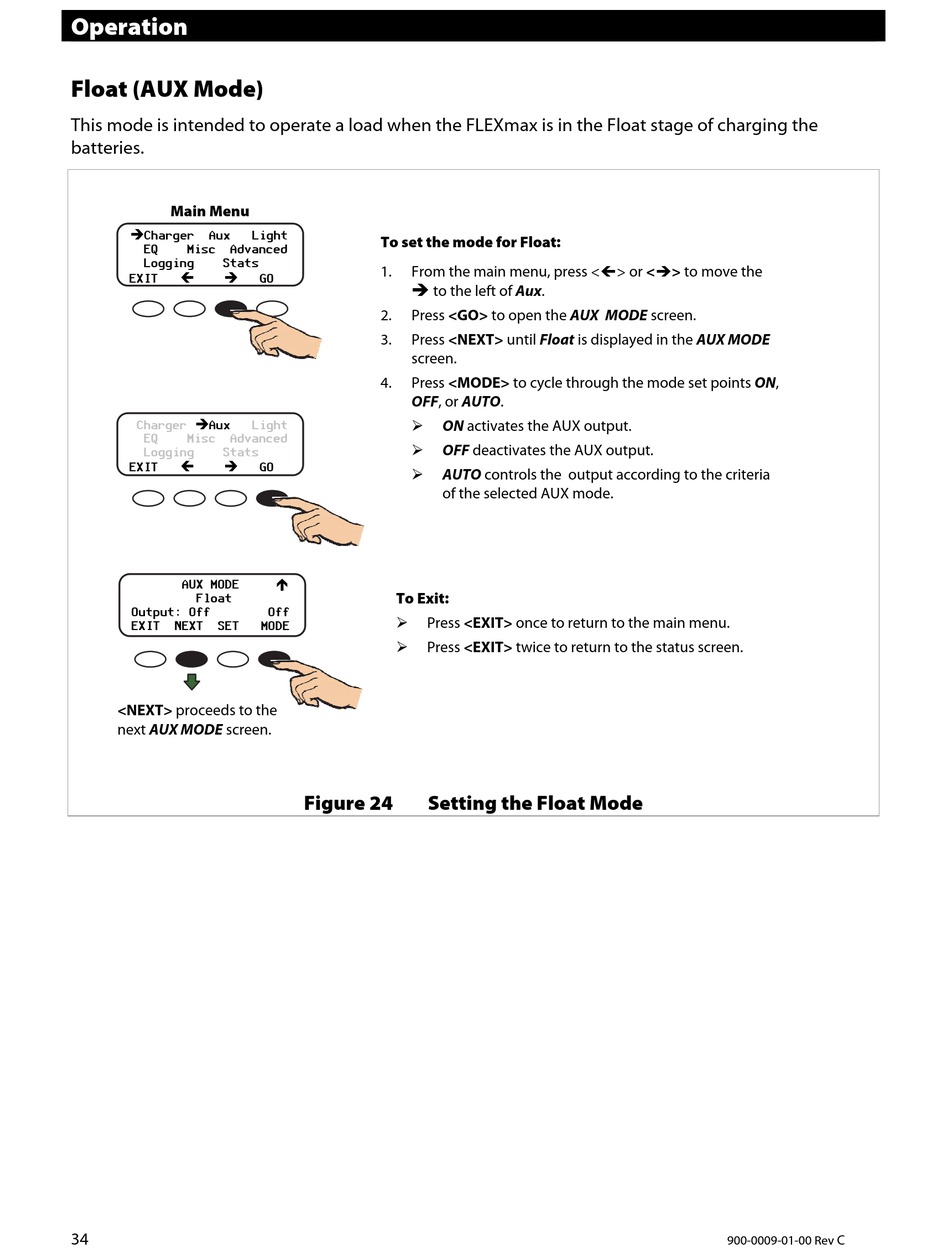

Figure 24 Setting the Float Mode
to the left of Aux.
ON activates the AUX output.
OFF deactivates the AUX output.
AUTO controls the output according to the criteria
of the selected AUX mode.
C
900-0009-01-00 Rev
