Night Light (AUX Mode)

This mode is intended to operate a user-provided, low wattage light for as long as the charge
controller remains in Sleep mode or for the ON time set by the user. OFF is the default value.
Main Menu
Charger
Aux
EQ Misc Advanced
Logging Stats
 
EXIT
Aux
Charger
EQ Misc Advanced
Logging Stats
 
EXIT
AUX MODE
Night Light
Output: Off
EXIT NEXT SET
<NEXT> proceeds to the
next AUX MODE screen.
AUX MODE
Night Light
Output: Off
EXIT NEXT SET
AUX MODE
Night Light
EXIT HYST TIME VOLT
Night Light
ON Hysteresis Time
Minutes 000
BACK - +
Night Light
OFF Hysteresis Time
Minutes 000
BACK - +
C
900-0009-01-00 Rev
To set the mode for Night Light:
Light
1. From the main menu, press <> or <> to move the
left of the Aux function.
GO
2. Press <GO> to open the AUX MODE screen.
The  indicates that the mode supports polarity. See page 53.
3. Press <NEXT> until Night Light is displayed in the AUX MODE
screen.
4. Press <MODE> to cycle through ON, OFF, or AUTO.
Light

GO


Indicates Aux Polarity

is Active High
Off
MODE
To change the set points for Night Light:

1. Press <SET> to advance to the set point screens.
Off
MODE
<HYST>, <VOLT>, and <TIME>.
2. Press <-> or <+> to increase or decrease the values.
4. Press <BACK> to return to the ERROR OUTPUT set point screen.
5. Press <EXIT> to return to the AUX Mode screen.
Night Light On Time
Hours 23
OFF
BACK -
Adjusts the amount of
time the night light
remains on.

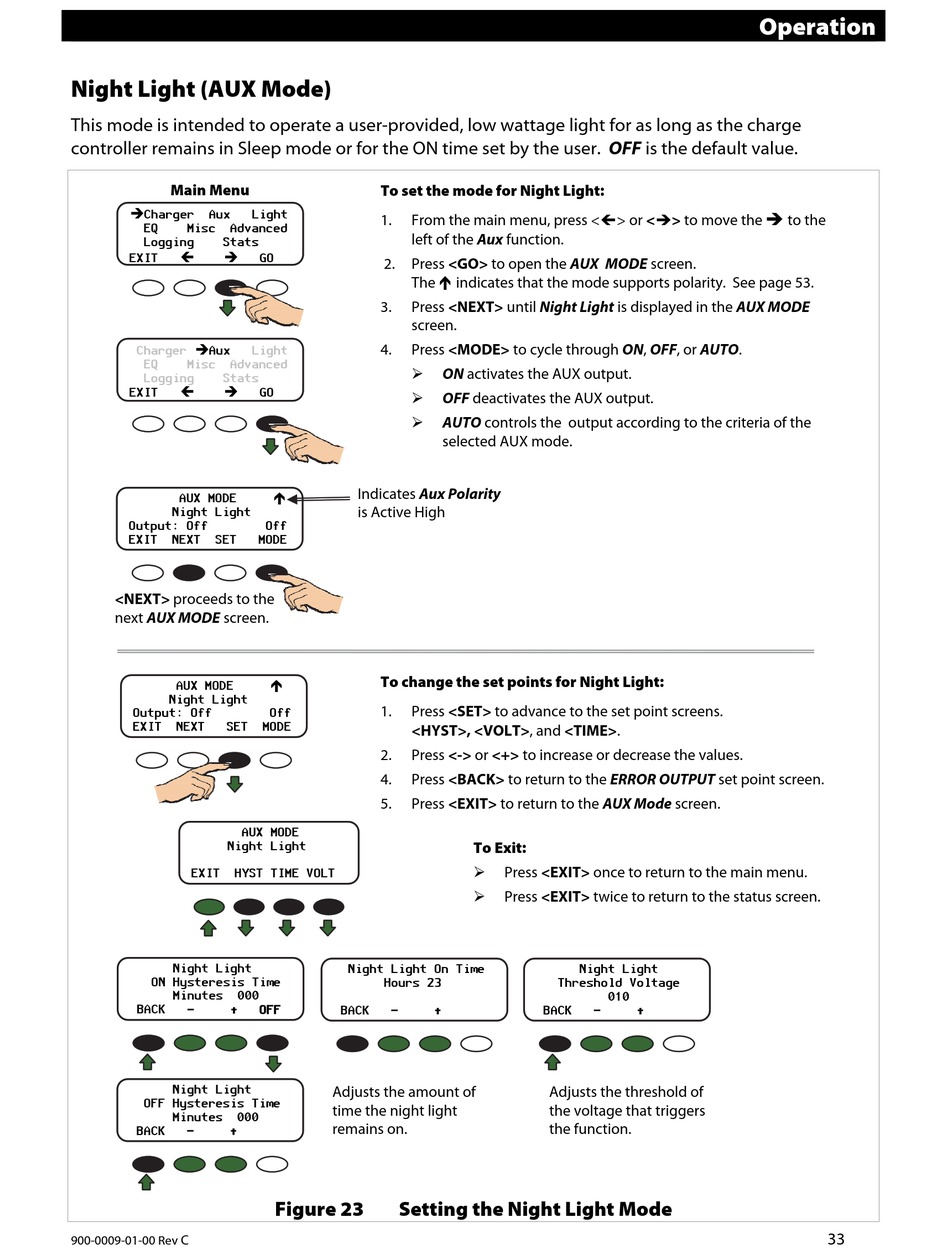

Figure 23 Setting the Night Light Mode
ON activates the AUX output.
OFF deactivates the AUX output.
AUTO controls the output according to the criteria of the
selected AUX mode.
To Exit:

Press <EXIT> once to return to the main menu.

Press <EXIT> twice to return to the status screen.
Night Light
Threshold Voltage
010
+ BACK -
Adjusts the threshold of
the voltage that triggers
the function.
Operation

to the
+
33
