Version and/or Voltage Setting Screens

Once the password has been entered, the display will return to the Select Version screen.
Select Version Screen
Select Version
Elija la Version
English
NEXT ENTER ENTRA SEL
or
Select Version Screen
Select Version
Elija la Version
English
NEXT ENTER ENTRA SEL
or
Confirmation Screen
Are you sure?
English
NO
SYSTEM VOLTAGE Screen
SYSTEM VOLTAGE
12 24 36 48 60
^^

ENTER
Verification Screen
Are you sure?
12 24 36 48 60
^^
NO
Status Screen
In 11.6V 0.0 A
Out 13.8V 0.0 A
0.000 kW 0.0 kWH
AUX: OFF Sleeping
16
To change the version:
1. Press <NEXT> or <SEL> to cycle through the version
choices of:



2. When the desired version is displayed, press <ENTER> or
<ENTRA> to proceed to the confirmation screen.
3. Press <YES> to confirm the selection.
YES
The SYSTEM VOLTAGE screen appears next.
The FLEXmax automatically detects the system's battery voltage
and indicates it by placing two ^^ symbols below the value.

If the value indicated is correct, press <ENTER>.

If the value indicate is not correct for the present system,
press <> to move the ^^ to below the correct voltage.

Press <YES> to confirm the selection.
YES
The Status screen is the last screen to be displayed after startup.
The soft keys below the Status screen navigate to the main
menu and the End-of-Day summary screen. See page 17 for
details on the Status screen.

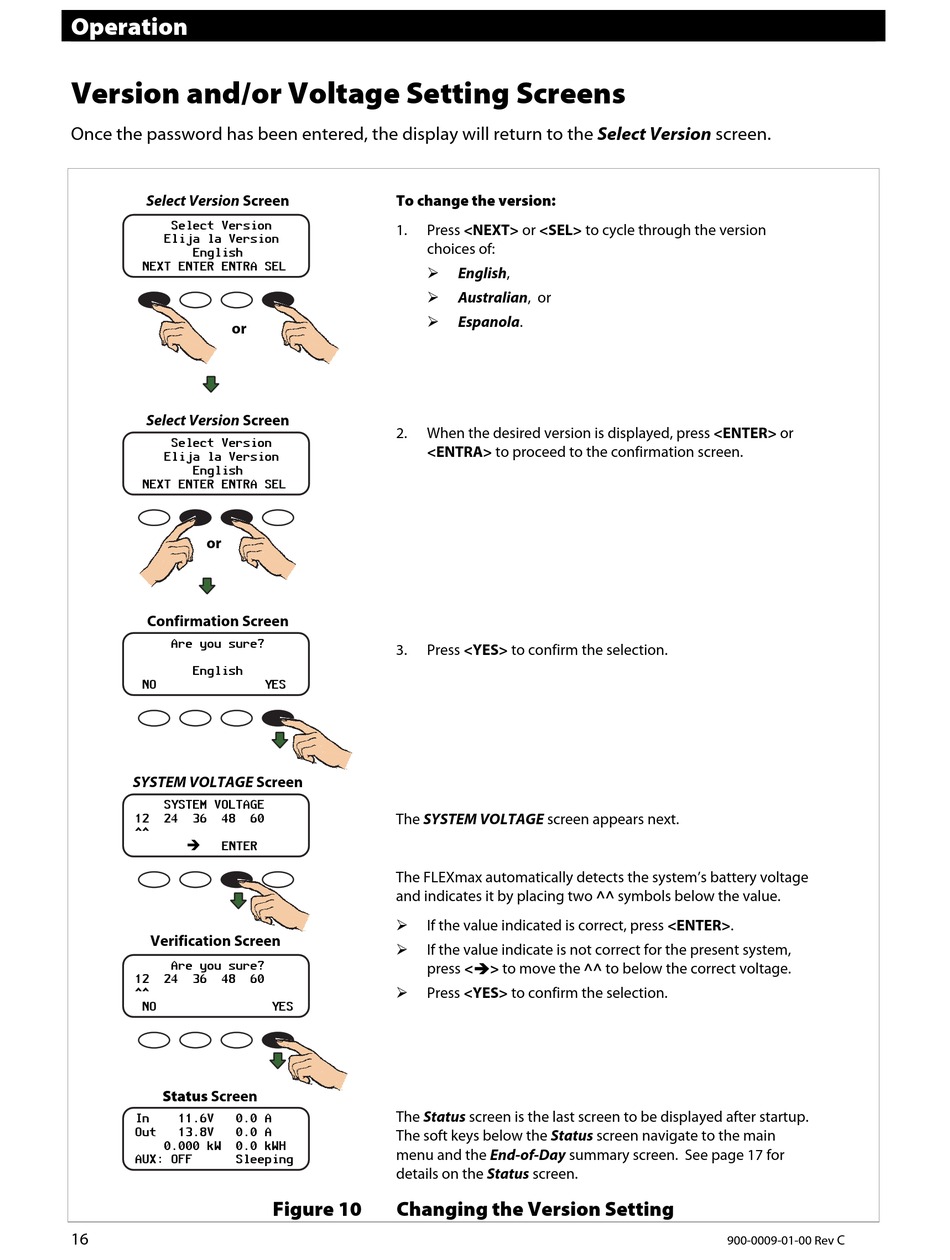

Figure 10 Changing the Version Setting
English,
Australian, or
Espanola.
