MATE3 Screens

Graph Screens

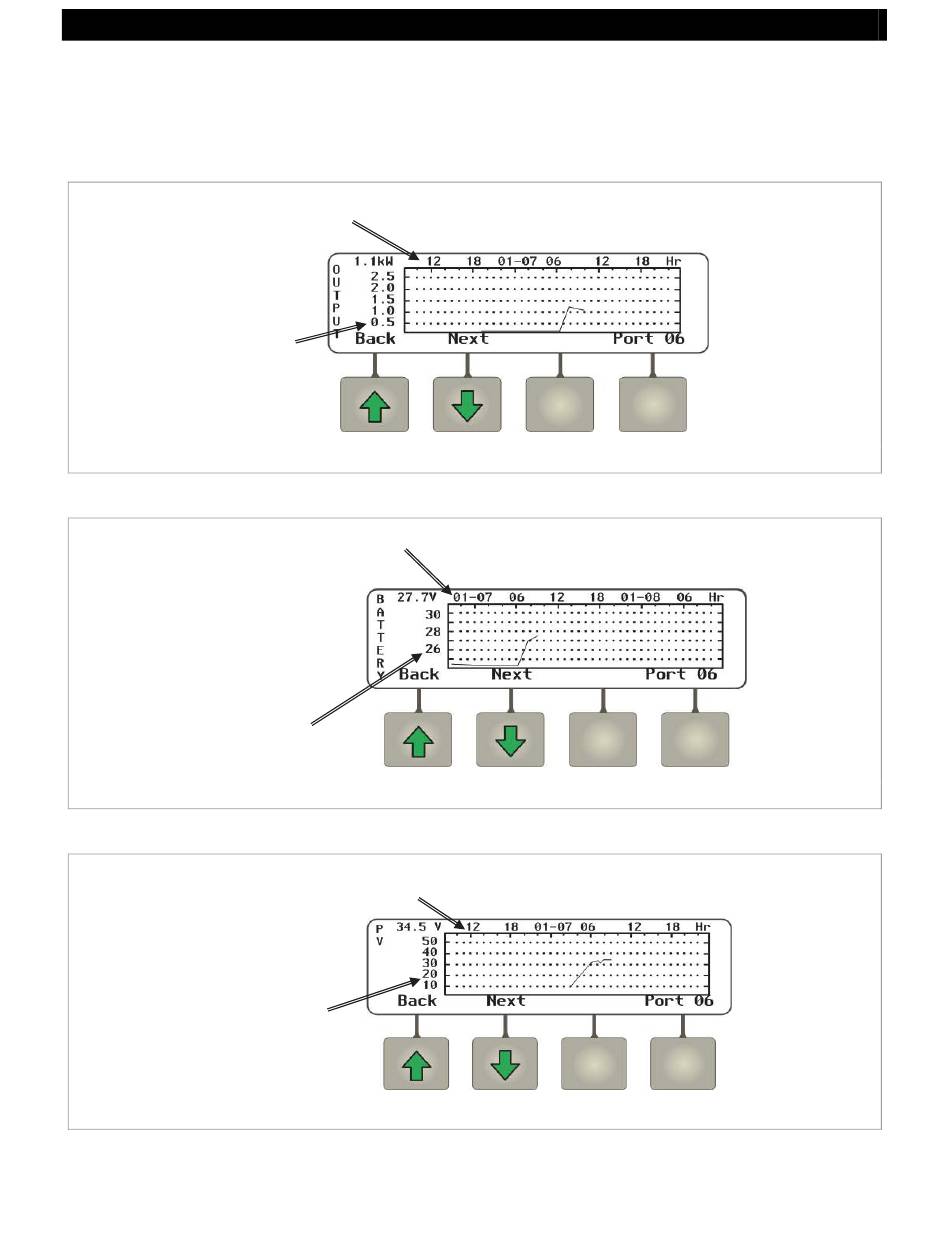

The <Graph> soft key brings up the following screens which plot various type of data over time.
The first screen shows changes in PV wattage over time.
This axis shows date and time
in 6-hour increments.
This axis shows
PV wattage.
The <Next> soft key brings up a screen showing changes in battery voltage over time.
This axis shows date and time
in 6-hour increments.
This axis shows
battery voltage.
The <Next> soft key brings up a screen showing changes in PV voltage over time.
This axis shows
PV voltage.
Continuing to press the <Next> soft key will proceed through the same graphs again from
the beginning.
62
Figure 57
Figure 58
This axis shows date and time
in 6-hour increments.
Figure 59
Output Graph
Battery Graph
PV Graph
