Operation

Low Battery Disconnect (AUX Mode)

This mode disconnects "auxiliary" loads from the batteries in the event of low voltage. These are
separate from the usual loads. Auxiliary loads are controlled by the AUX output, usually by a larger
relay. When the battery voltage falls below the DISCONNECT VOLTS setting, the AUX loads are
disconnected. When the voltage rises above the RE-CONNECT VOLTS, they will be reconnected.
Any loads not controlled this way, such as an inverter, may continue discharging the battery.
Main Menu
Charger
Aux
EQ
Misc Advanced
Logging
Stats
EXIT
Aux
Charger
EQ
Misc Advanced
Logging
Stats
EXIT
AUX MODE
Low Batt Disconnect
Output: Off
EXIT NEXT SET
<NEXT> proceeds to the
next AUX MODE screen.
AUX MODE
Low Batt Disconnect
Output: Off
EXIT NEXT
SET
AUX MODE
Low Batt Disconnect
EXIT
TIME
This is the time period the FLEXmax waits before either
activating or deactivating the AUX mode when either
the disconnect or reconnect voltages are reached.
When the low voltage occurs, the timer shows the
seconds remaining before disconnecting.
40
To set the mode for Low Battery Disconnect in Aux mode:
Light
1.
From the main menu, press <> or <> to move the
left of the Aux.
GO
2.
Press <GO> to open the AUX MODE screen.
3.
Press <NEXT> until the Low Batt Disconnect Mode is displayed in
the AUX MODE screen.
4.
Press <MODE> to cycle through the mode set points;
Light
ON, OFF, or AUTO.
GO
Off
MODE
To change the set points for Low Battery Disconnect:
1.
Press <SET> to advance to the set point screens; <VOLT> and <TIME>.
Off
MODE
2.
Press <TIME> to advance to the Delay Time Sec screen.
3.
Press <-> or <+> to increase or decrease the values.
4.
Press <BACK> to return to the main Low Batt Disconnect screen.
5.
Press <VOLT> to advance to the DISCONNECT VOLTS screen.
6.
Press <-> or <+> to increase or decrease the values.
7.
Press <RECON> to advance to the RE-CONNECT VOLTS screen.
VOLT
8.
Press <-> or <+> to increase or decrease the values.
9.
Press <DisV> to return to the DISCONNECT VOLTS screen.
10. Press <BACK> to return to the Low Batt Disconnect screen.
Delay Time Sec
01
Timer
001
BACK
-
+

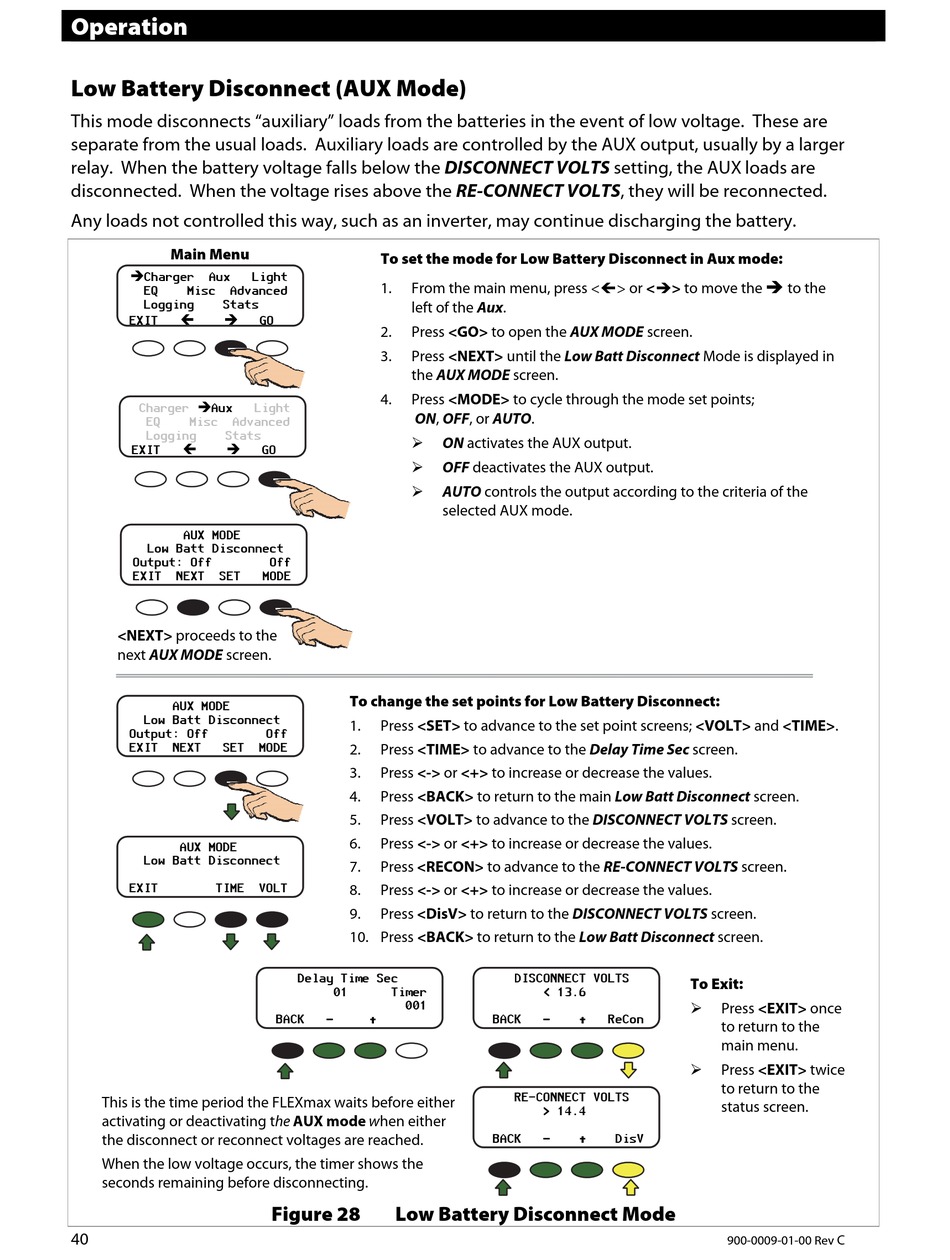

Figure 28
Low Battery Disconnect Mode
ON activates the AUX output.
OFF deactivates the AUX output.
AUTO controls the output according to the criteria of the
selected AUX mode.
DISCONNECT VOLTS
< 13.6
BACK
-
+
ReCon
RE-CONNECT VOLTS
> 14.4
BACK
-
+
DisV
to the
To Exit:
Press <EXIT> once
to return to the
main menu.
Press <EXIT> twice
to return to the
status screen.
C
900-0009-01-00 Rev
