Automatic Equalization Mode
To enable an automatic equalization mode, an interval must be set for the number of days to pass between
equalization cycles. This interval can be between 1 to 250 days. The default equalization interval setting is 000
which disables this feature.
The Equalization Interval screen allows the user to set the interval between equalization cycles. It also displays
how many days of the interval has passed. The COUNT value will be cleared to 000 when an equalization cycle is
started, manually stopped, or if the charge controller has been powered off.
Days of the interval
that have elapsed
BATTERY EQUALIZE
START Screen
BATTERY EQUALIZE
1 Hours 15.0 Volts
Check water level
BACK AUTO START STOP
Equalization Interval
Screen
COUNT EQ INTERVAL
000
EXIT -DAY +DAY
Status Screen
In 11.6V
Out 13.8V
0.000 kW 0.0 kWH
AUX: OFF
In 11.6V
Out 13.8V
0.000 kW 0.0 kWH
AUX: OFF
In 11.6V
Out 13.8V
0.000 kW 0.0 kWH
AUX: OFF
C
900-0009-01-00 Rev
Equalization Interval
Screen
COUNT
000
EXIT
To enable an automatic EQ cycle:
1. Press <AUTO> to display the equalization interval screen.
2. Use <-DAY> or <+DAY> to set the number of days between each
equalization cycle.
3. Press <BACK> to return to the status screen.
000
On the Status Screen:
0.0 A
0.0 A 
EQ-MPPT will display to indicate the FLEXmax is trying to reach
the target equalize set point.
EQ-MPPT

EQ 0:00 in Hours:Minutes will display after the equalize set point
is reached.
0.0 A
0.0 A

After recharging, an EQ DONE message displays and a Float
EQ 0:00
cycle begins. EQ DONE is displayed until (1) any soft key is
pressed, or (2) a new day occurs for systems using an OutBack
0.0 A system display.
0.0 A
The incomplete equalization cycle continues into the next day unless
EQ DONE
the FLEXmax is powered off or manually stopped. The remaining EQ
time can be viewed in the End-of-day Summary screen (see page 18).

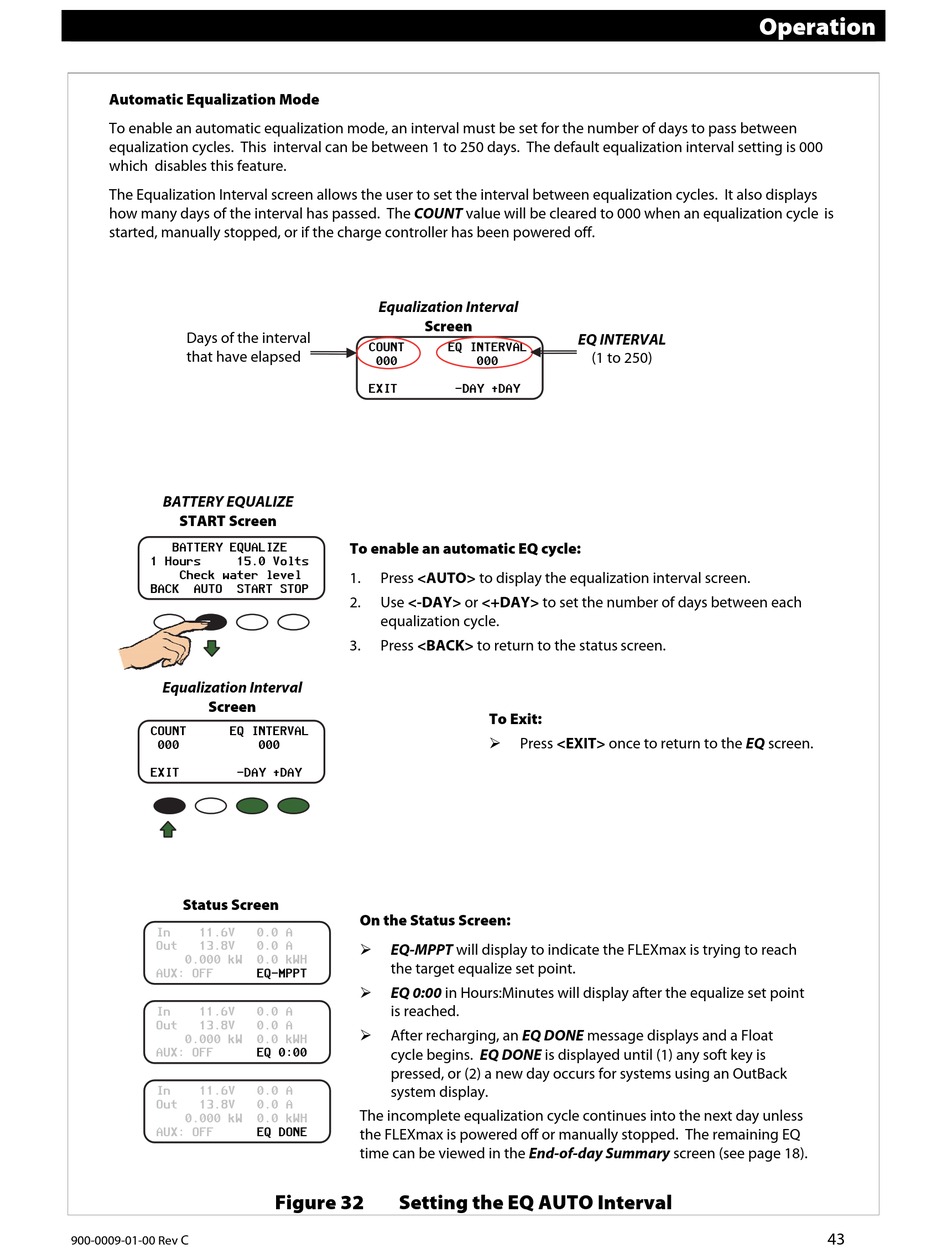

Figure 32 Setting the EQ AUTO Interval
EQ INTERVAL
EQ INTERVAL
(1 to 250)
000
-DAY +DAY
To Exit:

Press <EXIT> once to return to the EQ screen.
Operation
43
