Operation
...continued from previous page.
AUX MODE
Diversion:Relay
Output: Off
EXIT NEXT SET
Hold time shows how long the AUX output
stays active after the battery voltage has
fallen below the HYST (hysteresis) set point.
The user can adjust the Hold time from 0.1
to 25 seconds.
The Delay time shows how long the
battery voltage must be above the Relative
Volts before the AUX mode is activated. It
can be adjusted from 0 to 24 seconds, but is
rarely required.
Pressing the <BACK> soft key returns to the
AUX MODE Diversion: Relay TIME and
VOLT screen.
Figure 25
36

To change the set points for Diversion:Relay:
Off 1. Press <SET> to advance to the set point screens;
MODE
<VOLT> and <TIME>.
2. Press <TIME> to advance to the Time screen. This allows the user
to adjust the minimum time the AUX output is active after the
battery voltage falls below the hysteresis voltage.
3. Press <-> or <+> to increase or decrease the Hold time values.
4. Press <DLY+> to increase the Delay Time.
5. Press <BACK> to return to the Diversion:Relay TIME and VOLT
screen.
6. Press <VOLT> to move into the Relative Volts screen.
7. Press <-> or <+> to increase or decrease the values.
8. Press <HYST> to select the hysteresis value.
9. Press <BACK> to return to the main Diversion;Relay TIME and
VOLT screen.
10. From the Diversion:Relay screen, press <EXIT> to return to the
AUX MODE screen.
AUX MODE
Diversion:Relay
EXIT
Hold Delay
01.0 Time 00
Seconds
BACK - + DLY+

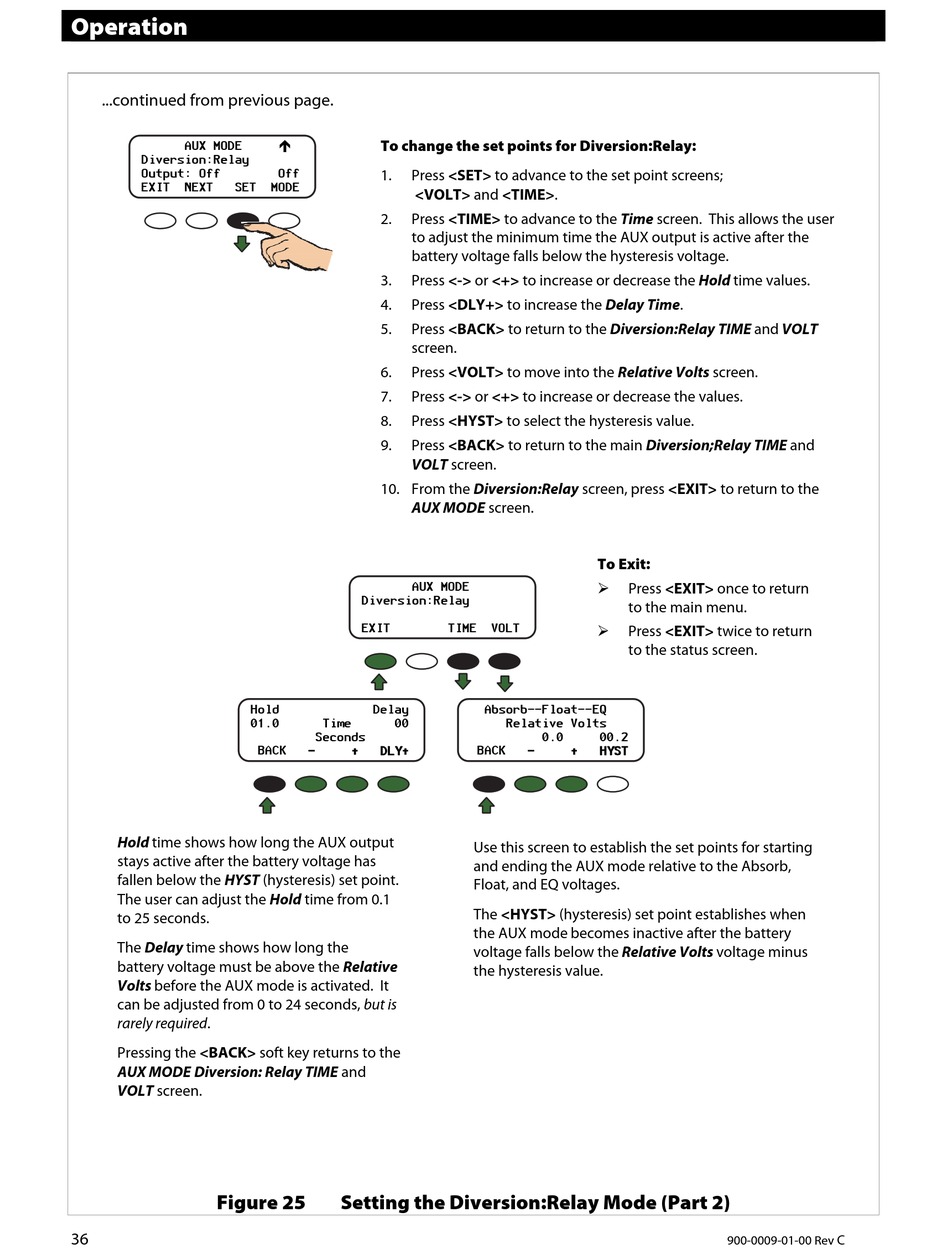

Setting the Diversion:Relay Mode (Part 2)
To Exit:

TIME VOLT 
Absorb--Float--EQ
Relative Volts
0.0 00.2
BACK - + HYST
Use this screen to establish the set points for starting
and ending the AUX mode relative to the Absorb,
Float, and EQ voltages.
The <HYST> (hysteresis) set point establishes when
the AUX mode becomes inactive after the battery
voltage falls below the Relative Volts voltage minus
the hysteresis value.
Press <EXIT> once to return
to the main menu.
Press <EXIT> twice to return
to the status screen.
900-0009-01-00 Rev
C
