MATE3 Screens

Menu Structure in the MATE3

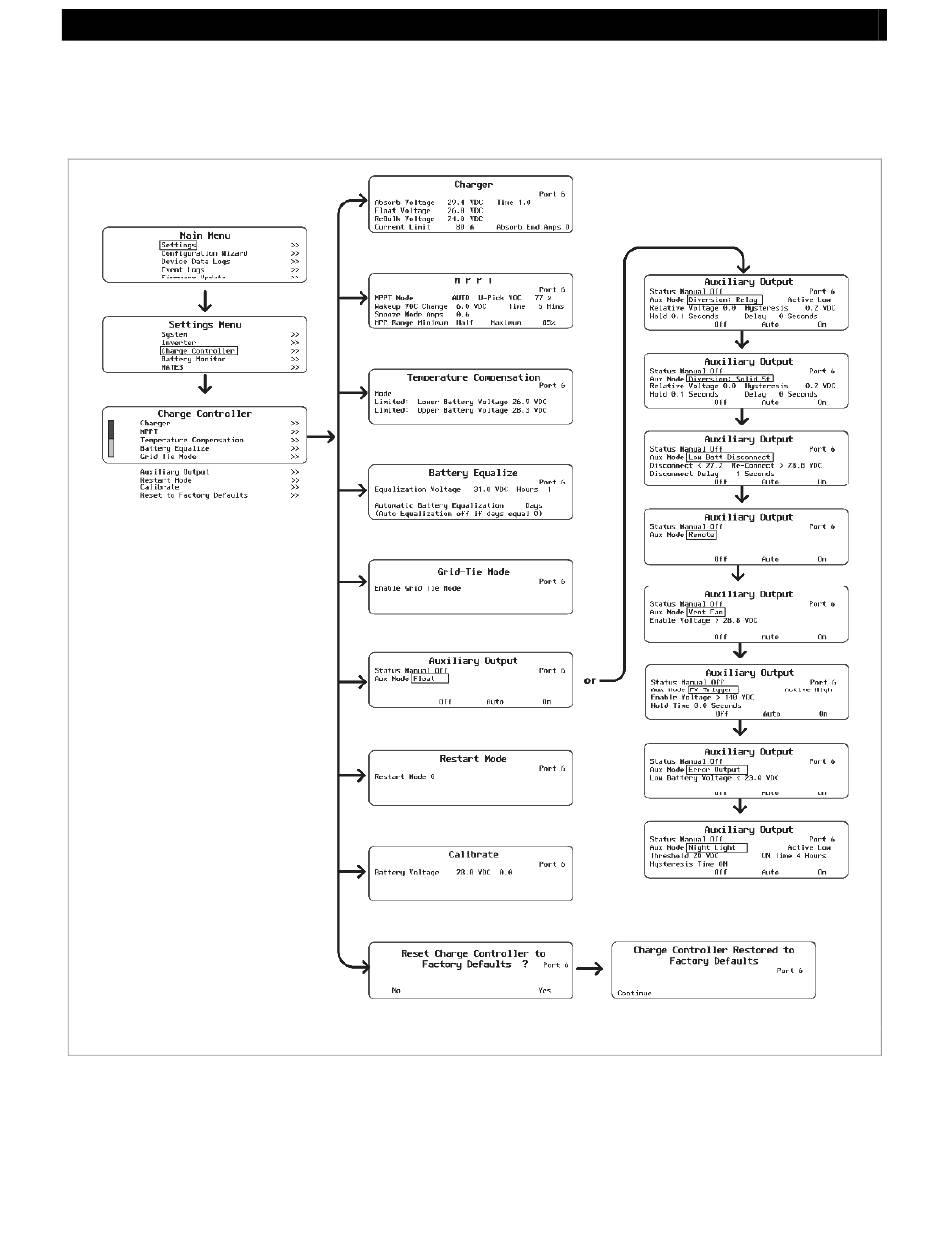

Figure 60 shows the MATE3 menu structure for adjusting the FLEXmax charge controller settings.
Figure 60 Menu Structure
The Main Menu shown above is accessed with the LOCK button and a password. Use the MATE3's
control wheel to move up and down between menus (or options within a menu). Use the center
button on the control wheel to make a selection. (See the MATE3 manual for more information.)
Some menus may not be accessible if the user access levels are restricted.
