MATE/MATE2 Screens

Status Screens

To view the status screens of a FLEXmax Extreme using a MATE, follow the illustration below. Changes to
FLEXmax Extreme settings cannot be made when viewing these screens on a MATE.

MODE Screens

MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX CC DC
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/MODE-----P00
charger mode: Silent
DOWN STATUS
STATUS/CC/MODE-----P00
aux relay mode:
Low Batt
DOWN UP TOP
STATUS/CC/MODE-----P00
aux relay state:
DOWN UP TOP
STATUS/CC/MODE-----P00
End of mode menu
UP TOP STATUS
50
Navigation for STATUS/CC/MODE
 <STATUS> returns to the STATUS/CC/PAGE1 screen.
 <DOWN> moves to the next menu item in the diagram.
 <UP> moves to the previous menu item in the diagram.
 <TOP> returns to the first CC/MODE screen for the port
shown.
MAIN
 <PORT> directs the MATE to read the next device (port)
on the HUB.
Charge Controller Modes
The MODE screens describe the current operating mode for
the FLEXmax Extreme charger (see page 25) and AUX output
(see page 40).
The modes shown here are the same as those displayed in
the Status Menu of the MATE3. See page 30 for descriptions.
charger mode:
 Bulk
 Absorption
 Float
 Silent
 Equalization
aux relay mode:
PORT
 vent fan
 pv trigger
 error output
 night light
 float
ON
 diversion: relay
PORT
 diversion: solid st
 low batt(ery) disconnect
 remote
aux relay state:
This screen indicates if the AUX output is
 ON
 OFF

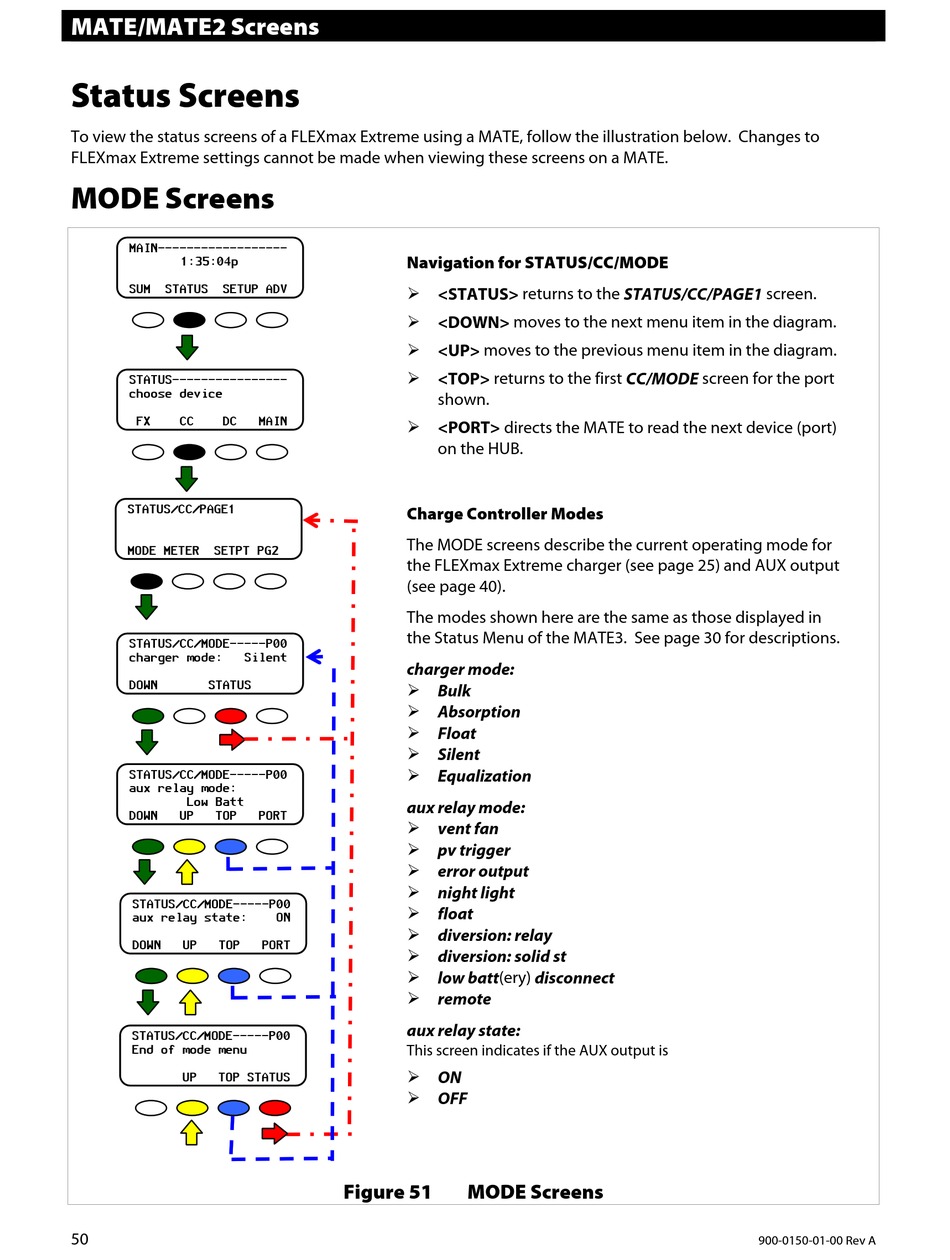

Figure 51 MODE Screens
