Programming the FLEXmax Extreme
Menu Structure in the MATE3

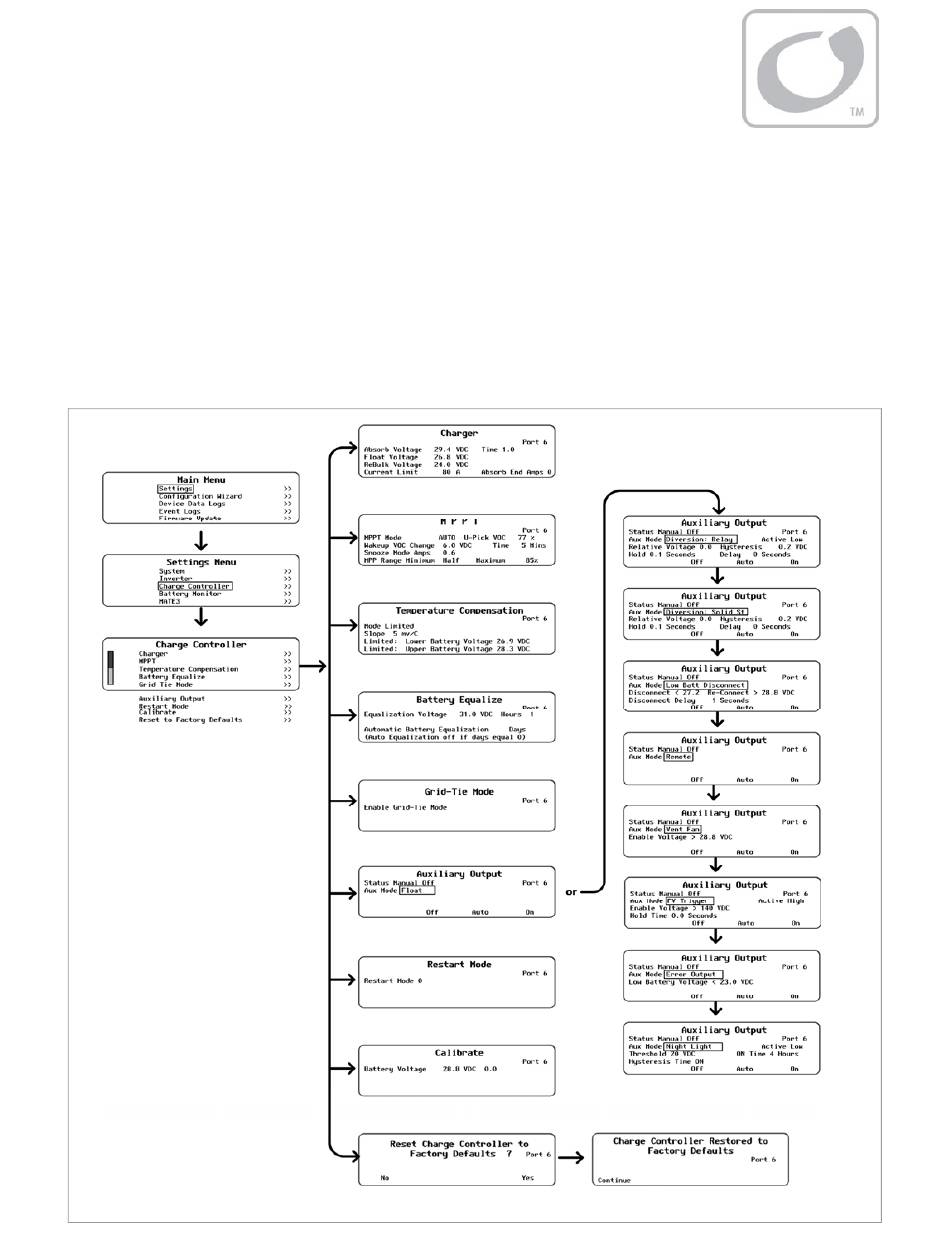

Figure 36 shows the MATE3 menu structure for adjusting the charge controller settings.
The Main Menu shown below is accessed with the LOCK button and a password. Use the MATE3's control
wheel to move up and down between menus (or options within a menu). Use the center button on the control
wheel to make a selection. (See the MATE3 manual for more information.)
Some menus may not be accessible if the user access levels are restricted.
Figure 36
Menu Structure
35
900-0150-01-00 Rev A
